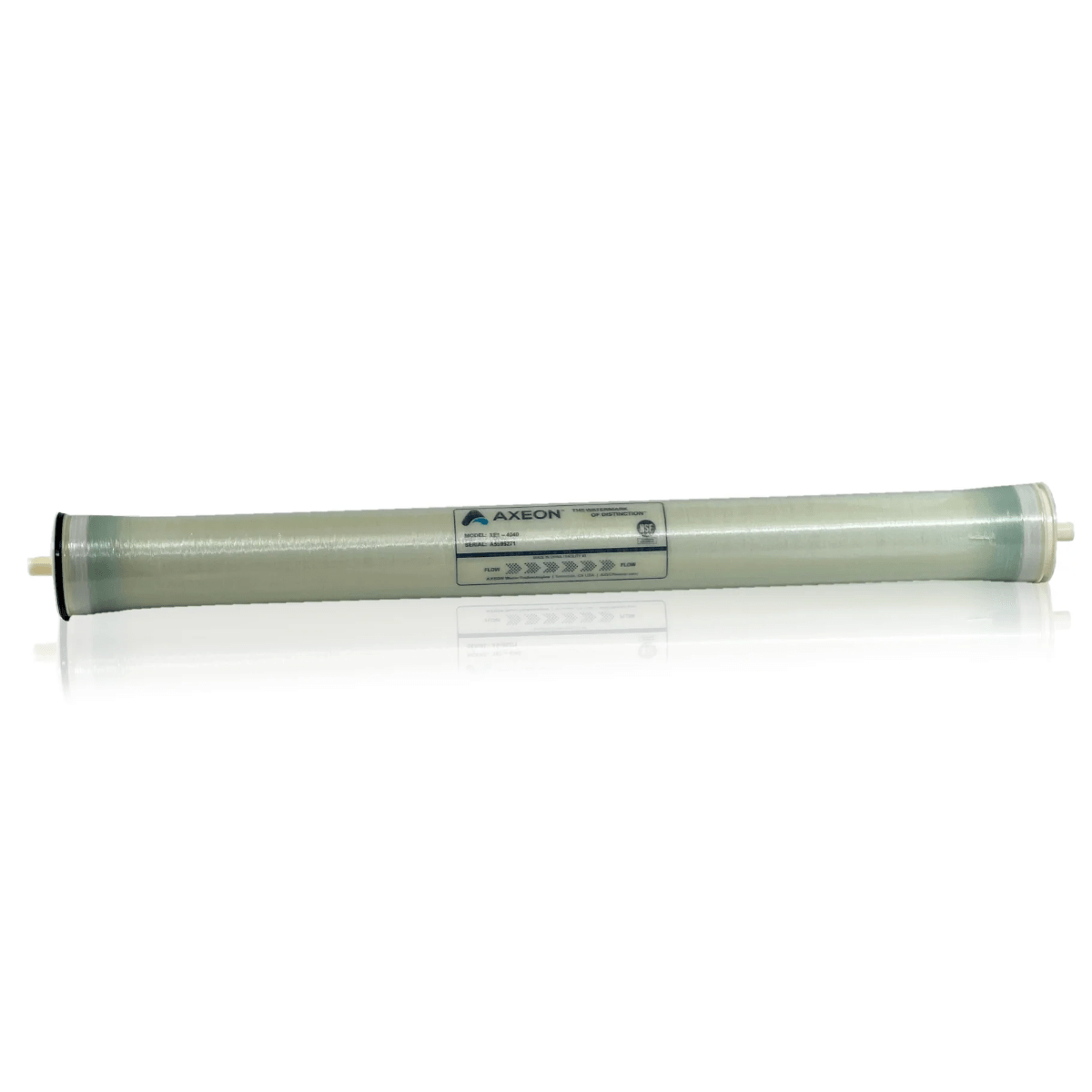

AXEON RE1-4040 NSF-61 Reverse Osmosis Membrane

AXEON® RE1–Series Membrane Elements feature a rugged fiberglass shell and are designed for surface and groundwater applications with high salt concentrations. RE1–Series Membrane Elements contain fouling resistant properties and offer higher flow rates up to 9,000 GPD while providing rejection rates up to 99%.

Features:

• High Rejection of Salts
• Fiberglass Wrapped for Enhanced Durability

Specifications:

• Description: RE1-4040
• Applied Pressure (psi / bar): 225 / 15.51
• Permeate Flow Rate (gpd / m³/d): 2000 / 7.57
• Nominal Salt Rejection %: 99

Dimensions (Inches)

A: 40
B: 1.04
C: 0.75
D: 3.90

Operating Limits:

• Membrane Type: Polyamide Thin-Film Composite
• Maximum Operating Temperature (°F / °C): 113 / 45
• Maximum Operating Pressure (psi / bar): 600 / 41
• pH Range, Continuous Operation: 2 - 11
• pH Range, Short Term Cleaning (30 Min.): 1 - 13
• Maximum Feed Silt Density Index (SDI): 5
• Chlorine / Chloramine Tolerance (ppm): 0
• Maximum Feed Flow Rate (gpm): 14
