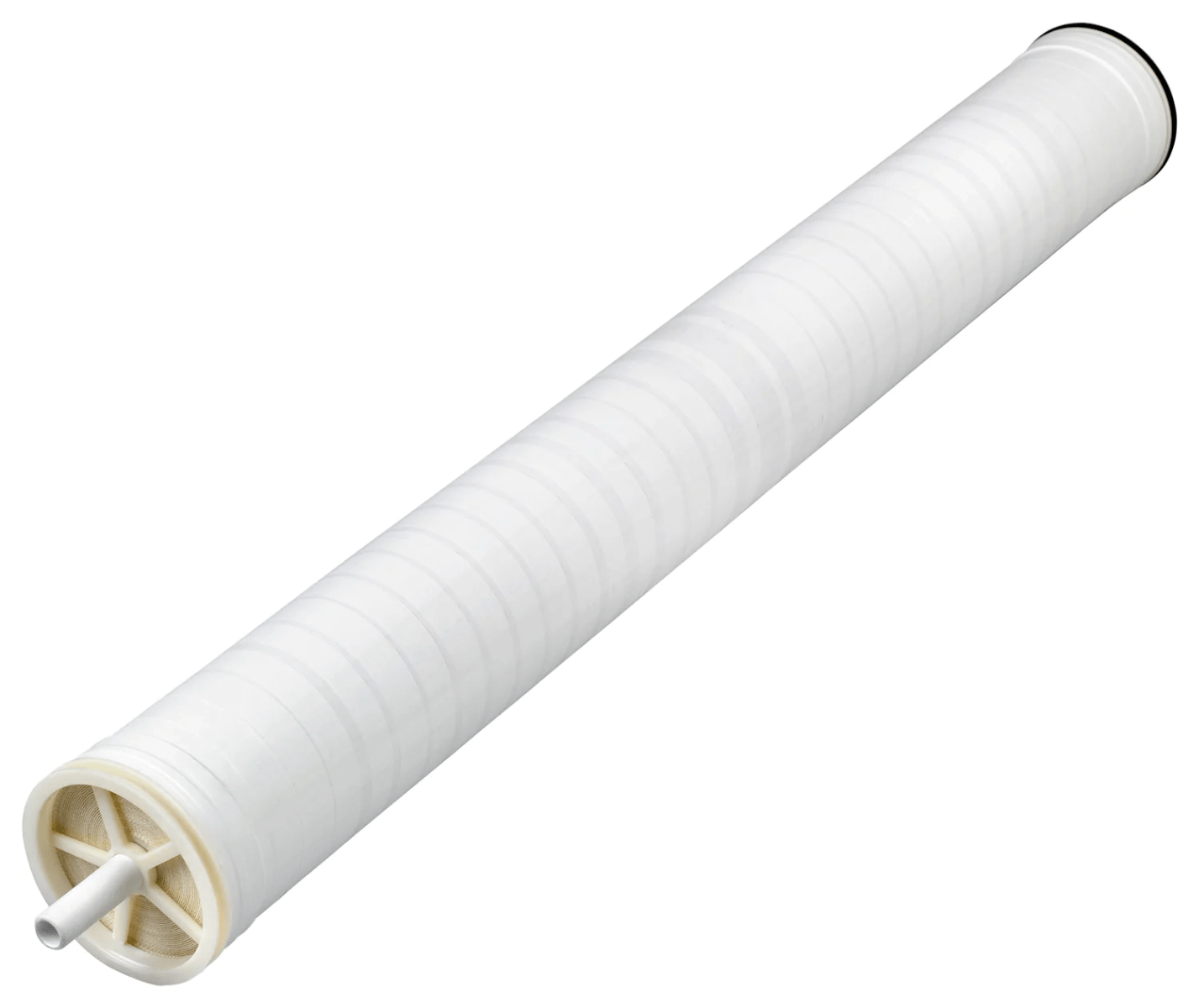

AXEON SAN1-4641 Sanitary Reverse Osmosis Membrane

AXEON® SAN1–Series Membrane Elements are manufactured using the industry’s leading membrane film technology. These membranes offer reliability, high performance and deliver consistent results for medical applications and sanitary uses. Water treatment professionals have come to rely on the superior performance and dependability of AXEON SAN1–Series Membrane Elements.

AXEON SAN1–Series Membrane Elements are 4.6 inch diameter reverse osmosis elements that offer high purity water for sanitary applications, using the industry’s leading film technology membrane, which offers excellent salt rejection and permeate flow. These elements are made with the same high quality materials of construction as our other AXEON Membrane Elements used in commercial systems.

Features:

• Individually Inspected, Qualified and Vacuum Tested
• High Rejection Rates
• Superior Quality and Cost Savings
• Full-Fit Design

Specifications:

• Description: SAN1-4641
• Applied Pressure (psi / bar): 225 / 15.51
• Permeate Flow Rate (gpd / m³/d): 5,200 / 19.68
• Nominal Salt Rejection %: 99

Dimensions (Inches)

A: 41.31
B: 2.19
C: 0.75
D: 4.61

Operating Limits:

• Membrane Type: Polyamide Thin-Film Composite
• Maximum Operating Temperature (°F / °C): 113 / 45
• Maximum Operating Pressure (psi / bar): 600 / 41
• pH Range, Continuous Operation: 2 - 11
• pH Range, Short Term Cleaning (30 Min.): 1 - 13
• Maximum Feed Silt Density Index (SDI): 5
• Chlorine / Chloramine Tolerance (ppm): 0
