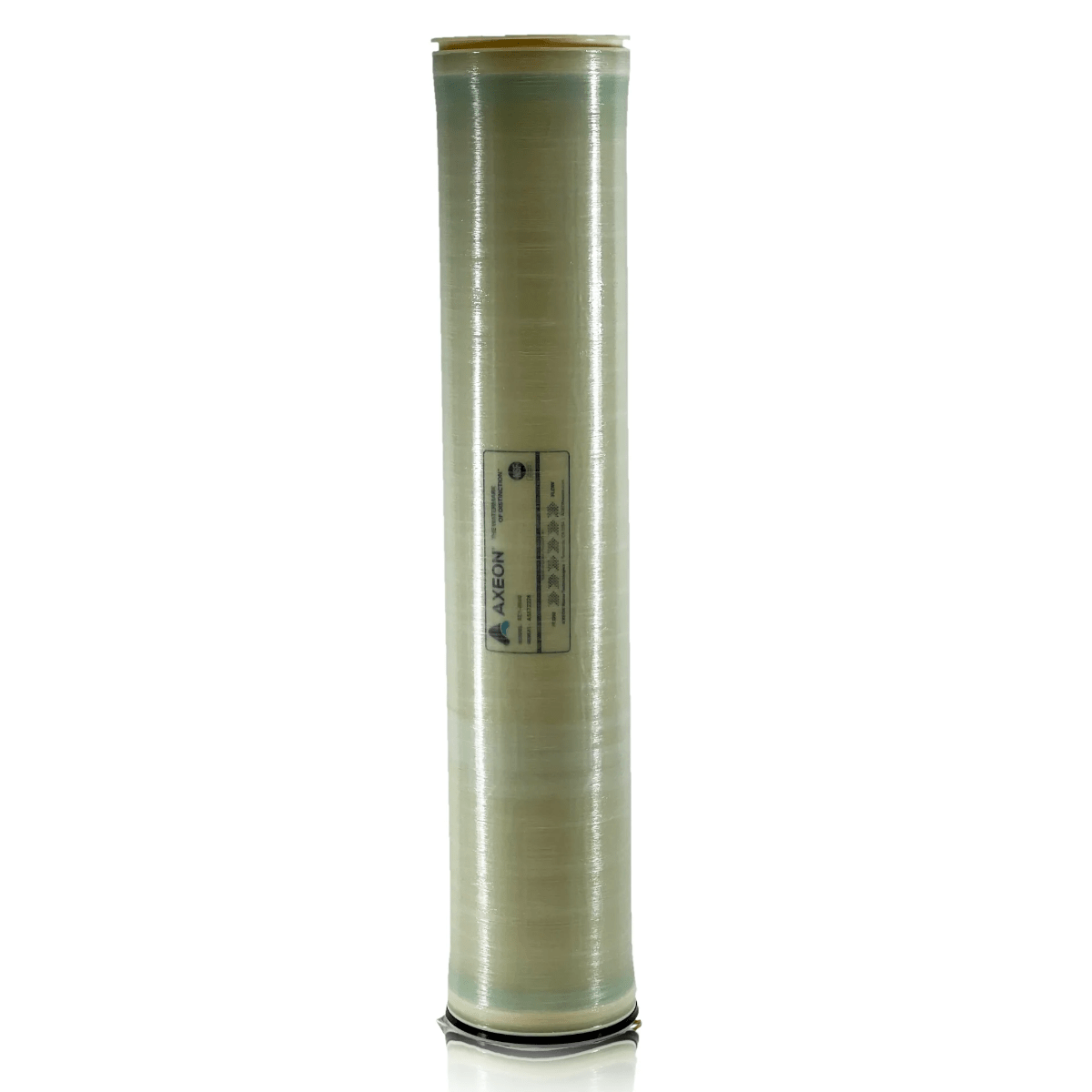

AXEON SE1-8040 NSF-61 Reverse Osmosis Membrane

AXEON® SE1–Series Reverse Osmosis Membrane Elements offer superior rejection and flow rates for high salinity and high rejection applications. These membranes are fiberglass wrapped and feature high flow rates up to 9,000 gpd with 99.75% rejection. AXEON SE1–Series Membranes operate at lower than standard pressures to be more energy efficient.

Features:

• High Rejection for Sea Water Applications
• Fiberglass Wrapped for Enhanced Durability

Specifications:

• Description: SE1-8040
• Applied Pressure (psi / bar): 800 / 55.16
• Permeate Flow Rate (gpd / m³/d): 7500 / 6.81
• Nominal Salt Rejection %: 99.75

Dimensions (Inches)

A: 40
B: N/A
C: 1.12
D: 7.91

Operating Limits:

• Membrane Type: Polyamide Thin-Film Composite
• Maximum Operating Temperature (°F / °C): 113 / 45
• Maximum Operating Pressure (psi / bar): 1200 / 82.70
• pH Range, Continuous Operation: 2 - 11
• pH Range, Short Term Cleaning (30 Min.): 1 - 13
• Maximum Feed Silt Density Index (SDI): 5
• Chlorine / Chloramine Tolerance (ppm): 0
• Maximum Feed Flow Rate (gpm): 75
