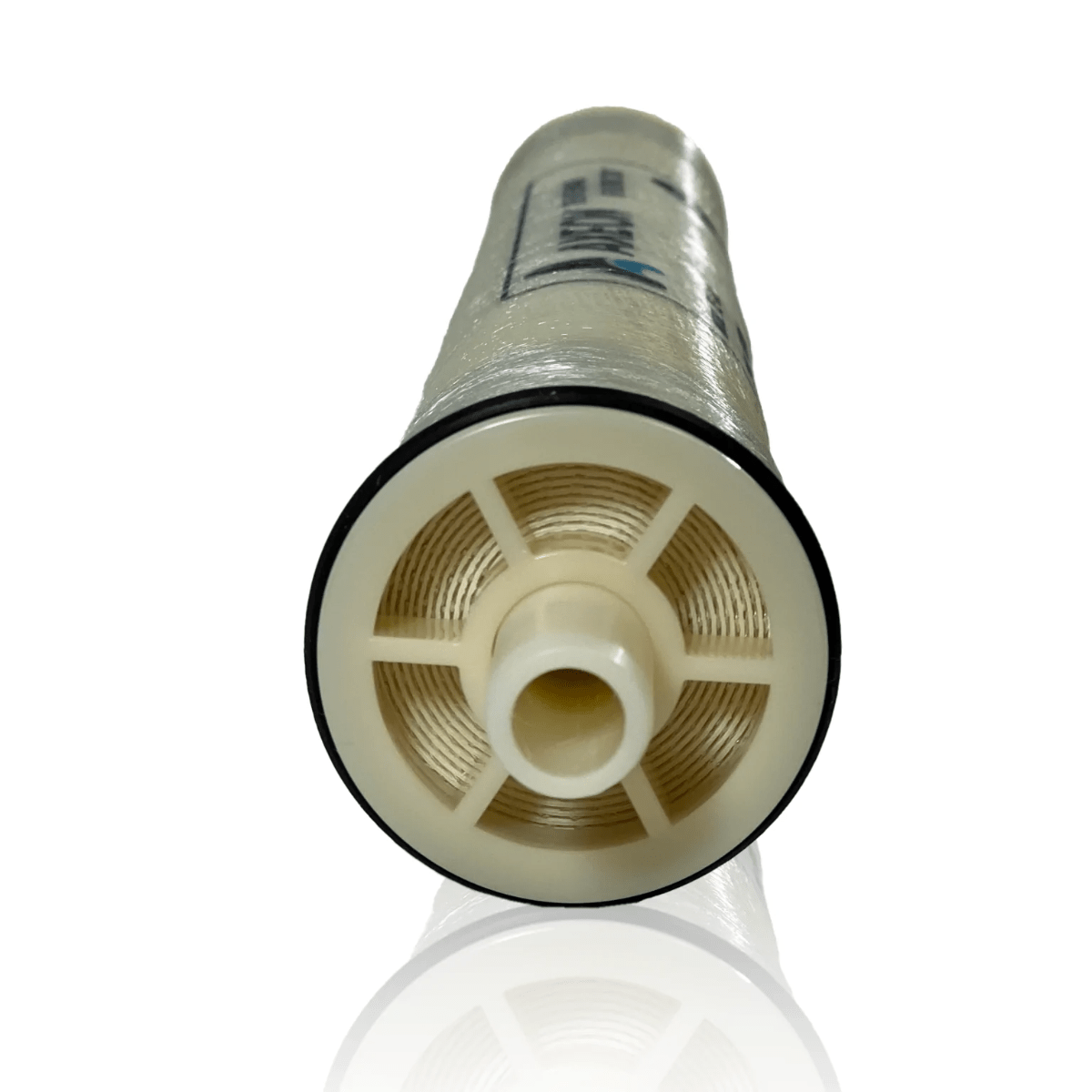

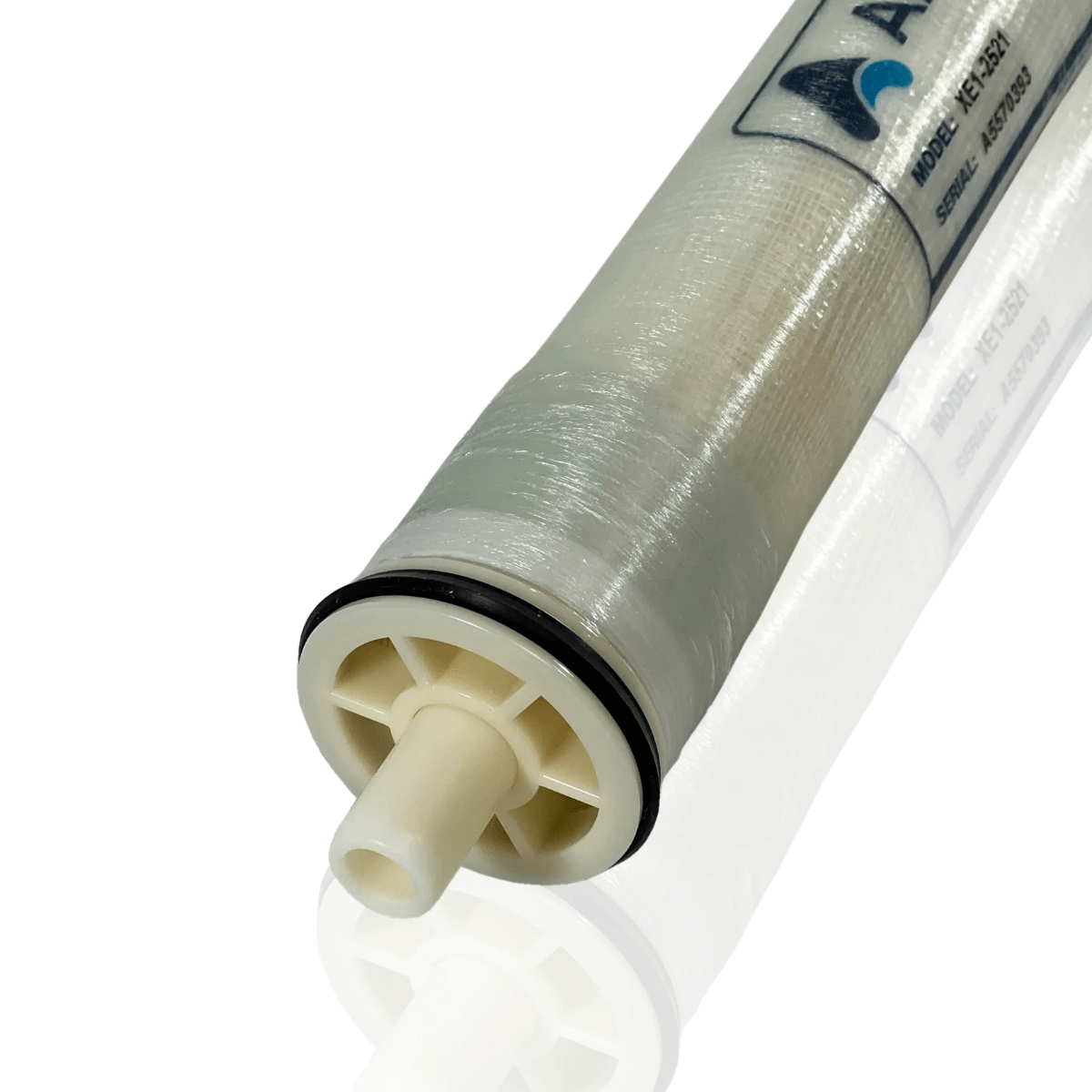

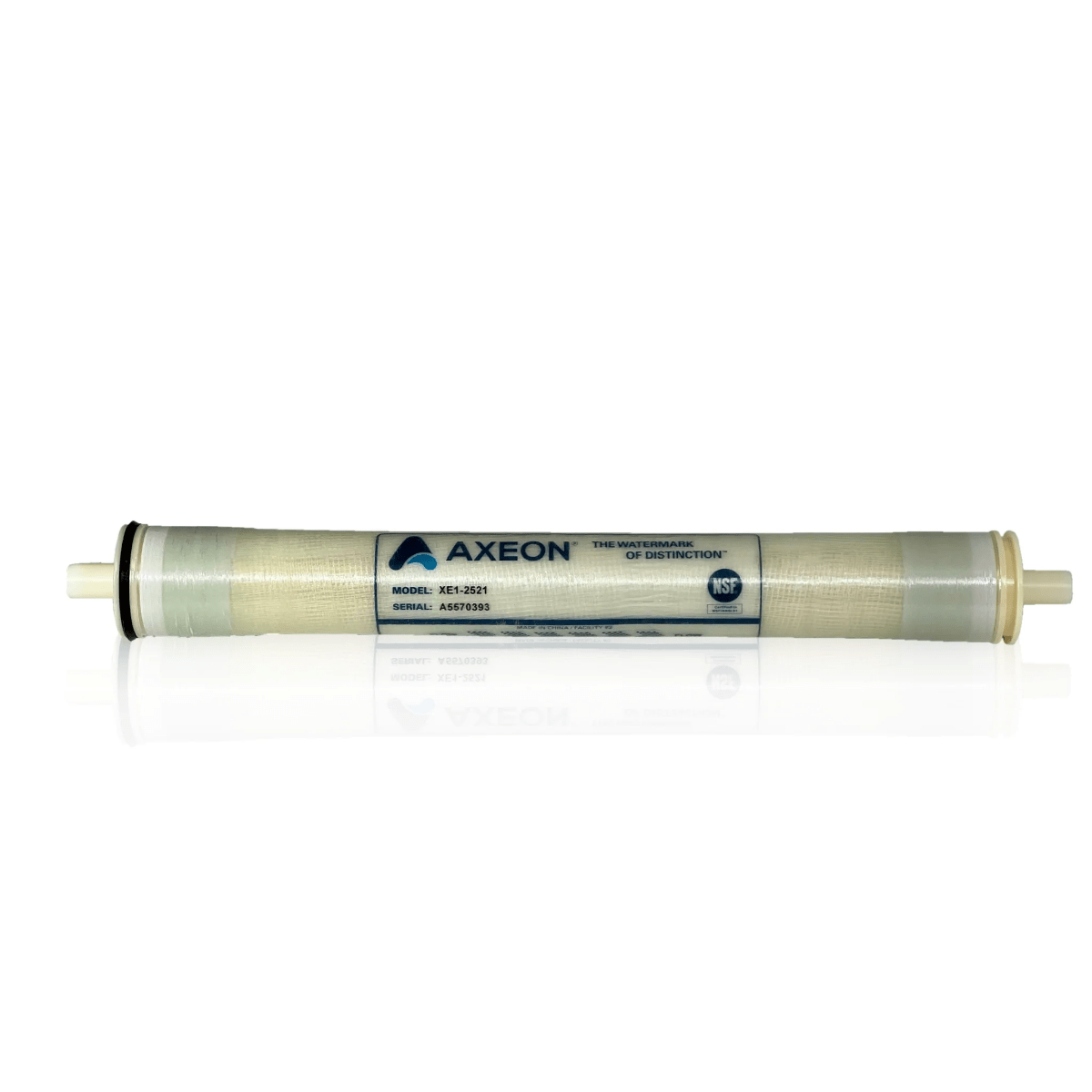

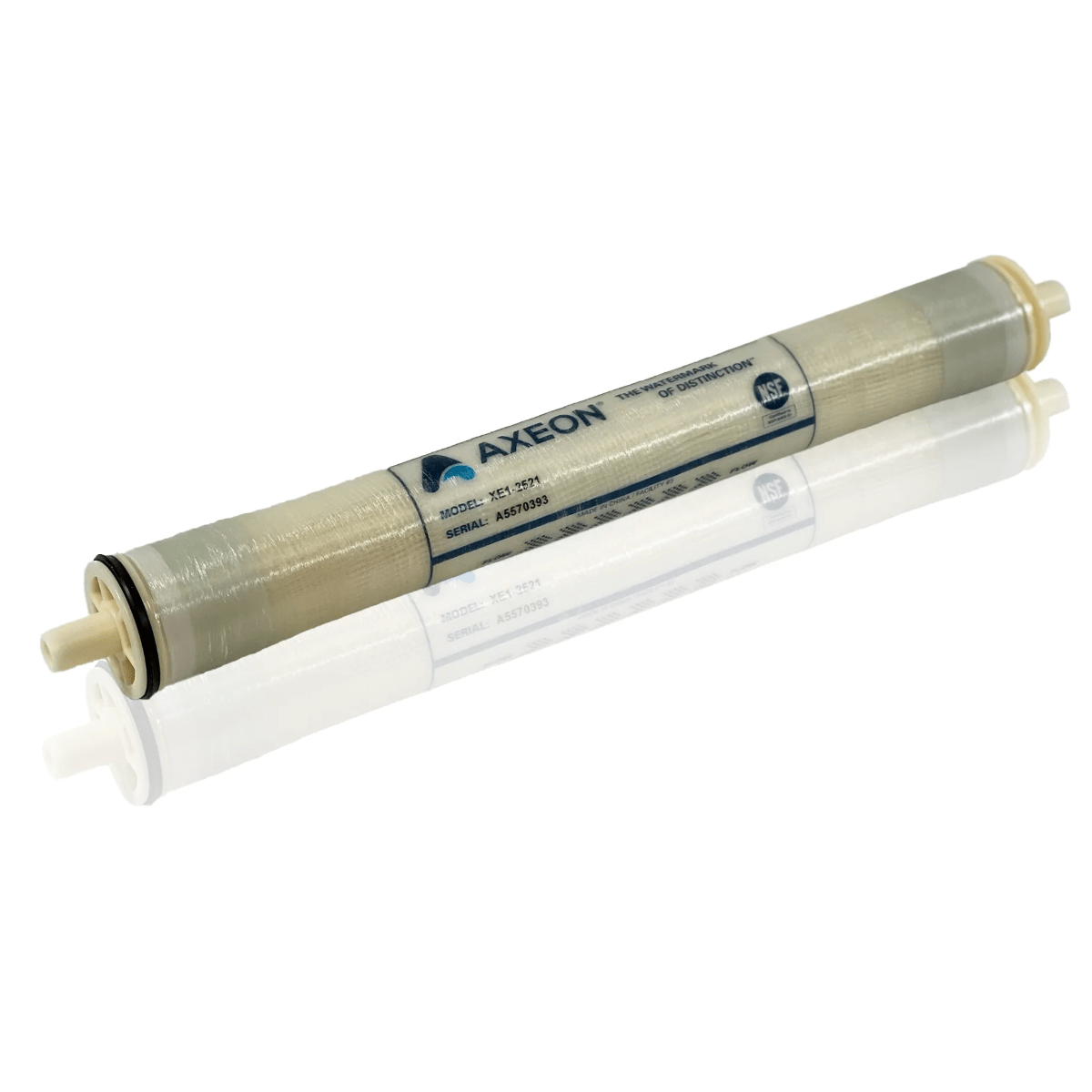

AXEON® XE1–Series Membrane Elements offer enhanced performance and extra energy savings for reverse osmosis systems by operating at a low applied pressure of 100 psi with a nominal rejection rate of 99.2%. AXEON XE1–Series are fiberglass wrapped, NSF-61 Certified and manufactured in a state-of-the-art, ISO–9001 compliant automated rolling facility and are shipped dry for extended shelf life.

Features:

• NSF-61 Certified
• Extra-low Operating Pressure
• Fiberglass Wrapped for Enhanced Durability

Specifications:

• Description: XLE-2521
• Applied Pressure (psi / bar): 100 / 6.89
• Permeate Flow Rate (gpd / m³/d): 300 / 1.14
• Nominal Salt Rejection %: 99.20

Dimensions (Inches)

A: 21
B: 1.12
C: 0.75
D: 2.40

Operating Limits:

• Membrane Type: Polyamide Thin-Film Composite
• Maximum Operating Temperature (°F / °C): 113 / 45
• Maximum Operating Pressure (psi / bar): 600 / 41
• pH Range, Continuous Operation: 2 - 11
• pH Range, Short Term Cleaning (30 Min.): 1 - 13
• Maximum Feed Silt Density Index (SDI): 5
• Chlorine / Chloramine Tolerance (ppm): 0
• Maximum Feed Flow Rate (gpm): 6
