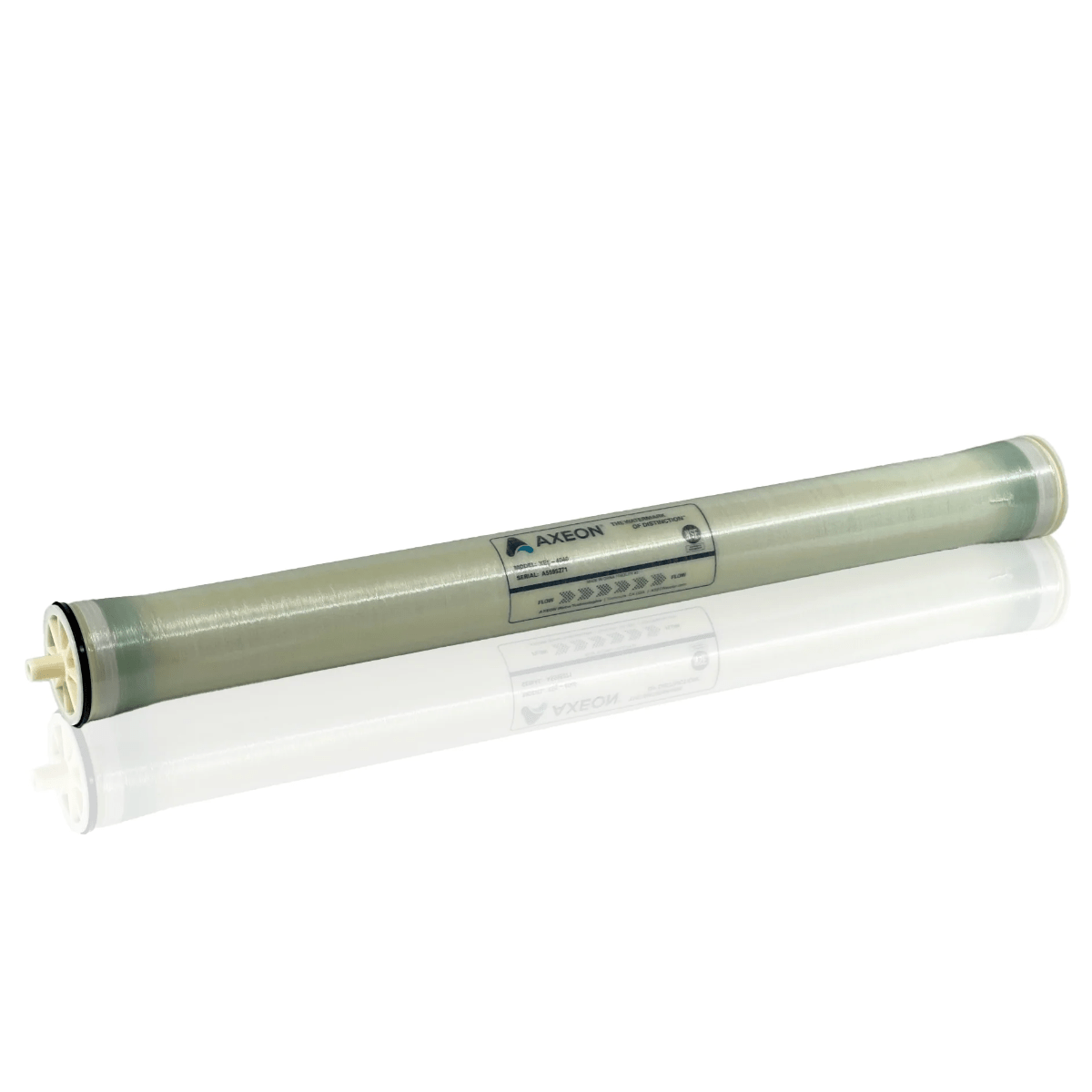

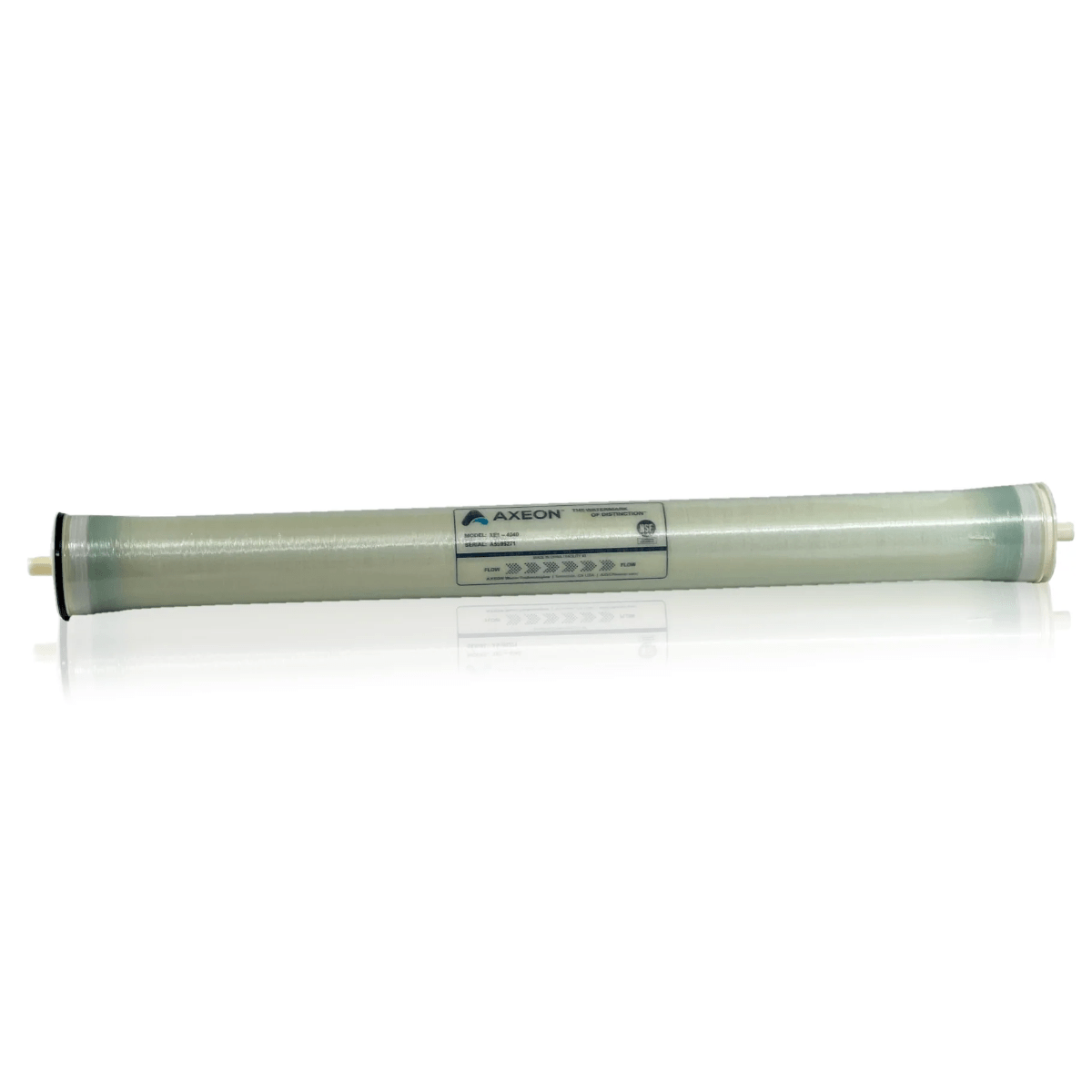

AXEON XE1-4040 NSF-61 Reverse Osmosis Membrane

AXEON® XE1–Series Membrane Elements offer enhanced performance and extra energy savings for reverse osmosis systems by operating at a low applied pressure of 100 psi with a nominal rejection rate of 99.2%. AXEON XE1–Series are fiberglass wrapped, NSF-61 Certified and manufactured in a state-of-the-art, ISO–9001 compliant automated rolling facility and are shipped dry for extended shelf life.

Features:

• NSF-61 Certified
• Extra-low Operating Pressure
• Fiberglass Wrapped for Enhanced Durability

Specifications:

• Description: XLE-4040
• Applied Pressure (psi / bar): 100 / 6.89
• Permeate Flow Rate (gpd / m³/d): 2400 / 9.09
• Nominal Salt Rejection %: 99.20

Dimensions (Inches)

A: 40
B: 1.04
C: 0.75
D: 3.90

Operating Limits:

• Membrane Type: Polyamide Thin-Film Composite
• Maximum Operating Temperature (°F / °C): 113 / 45
• Maximum Operating Pressure (psi / bar): 600 / 41
• pH Range, Continuous Operation: 2 - 11
• pH Range, Short Term Cleaning (30 Min.): 1 - 13
• Maximum Feed Silt Density Index (SDI): 5
• Chlorine / Chloramine Tolerance (ppm): 0
• Maximum Feed Flow Rate (gpm): 14
