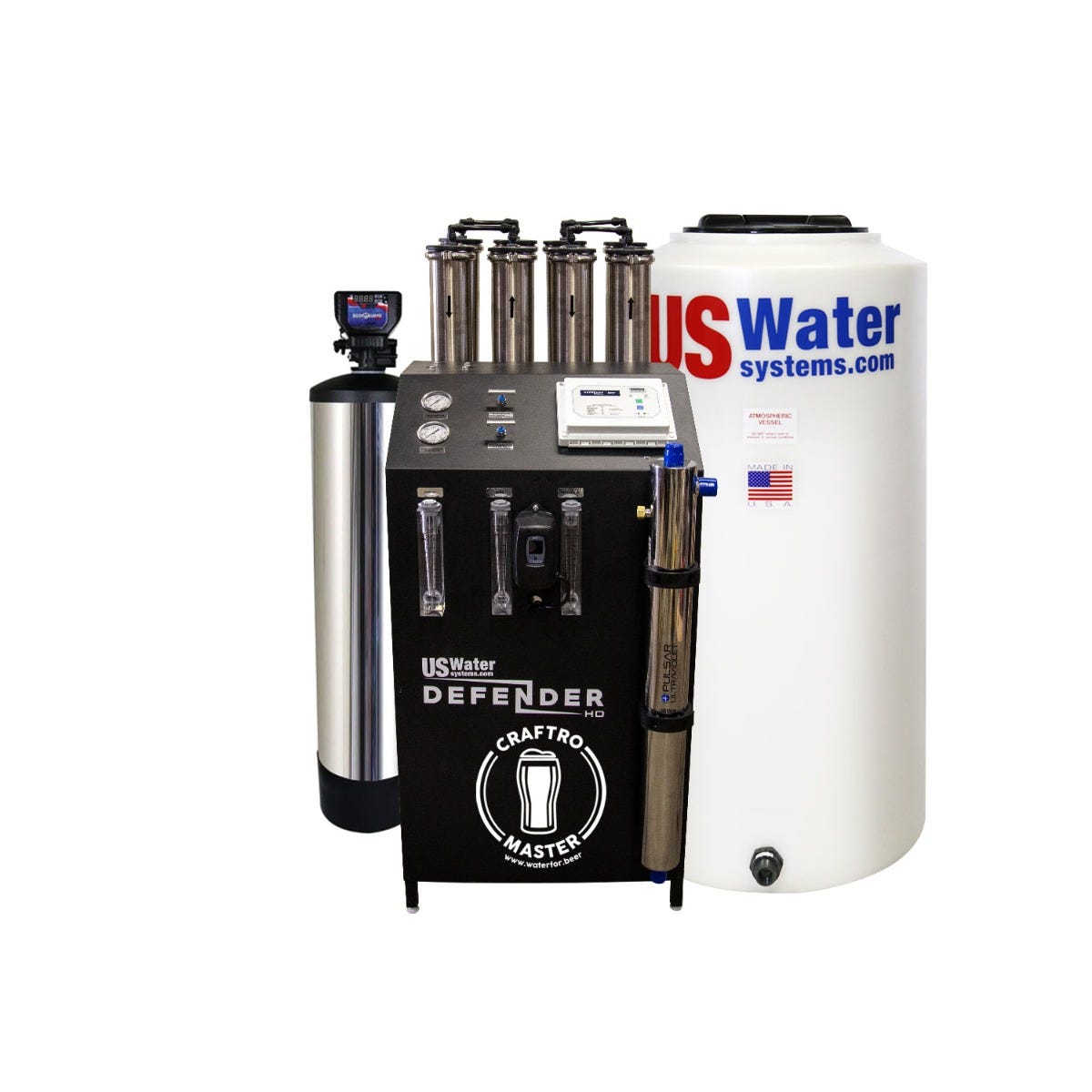

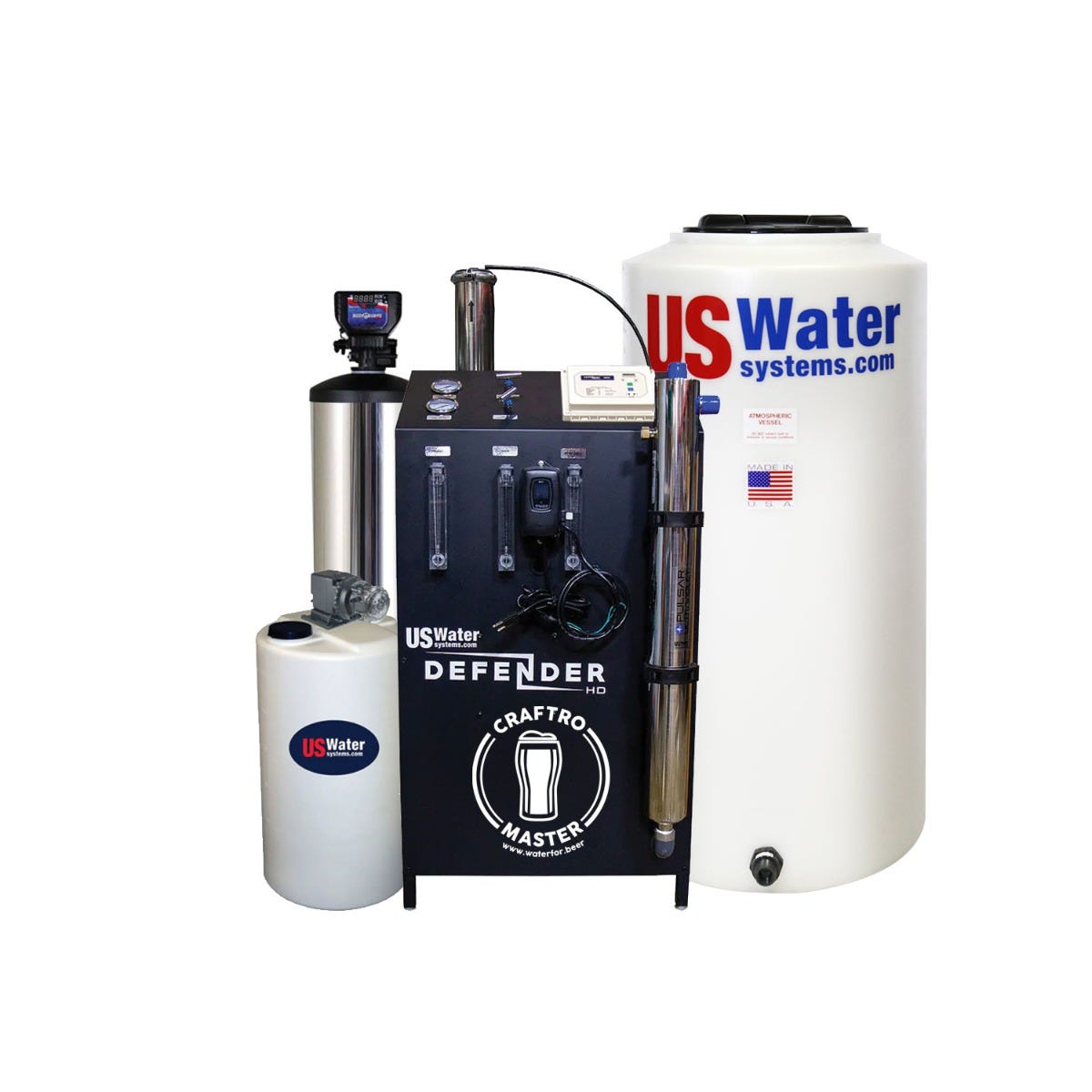

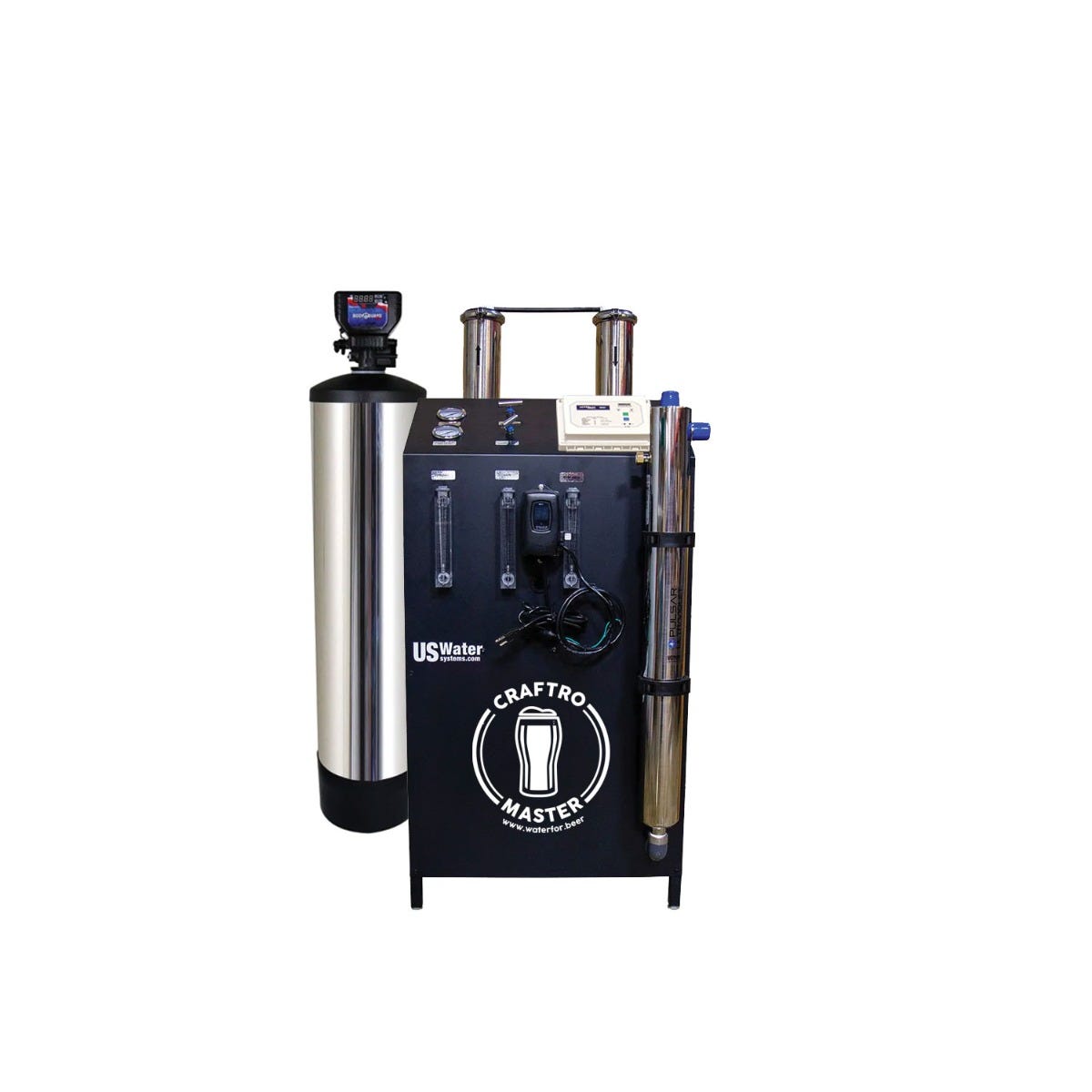

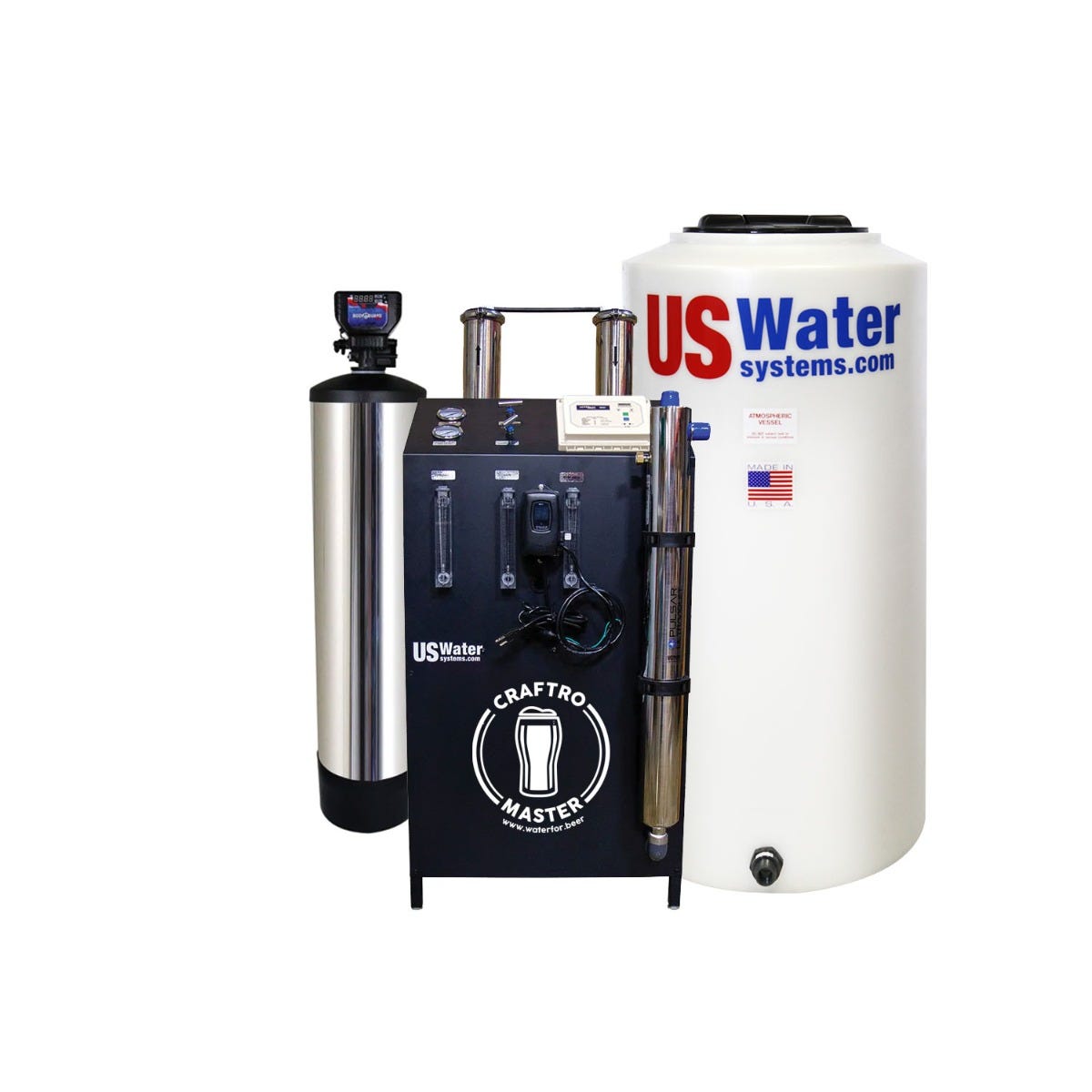

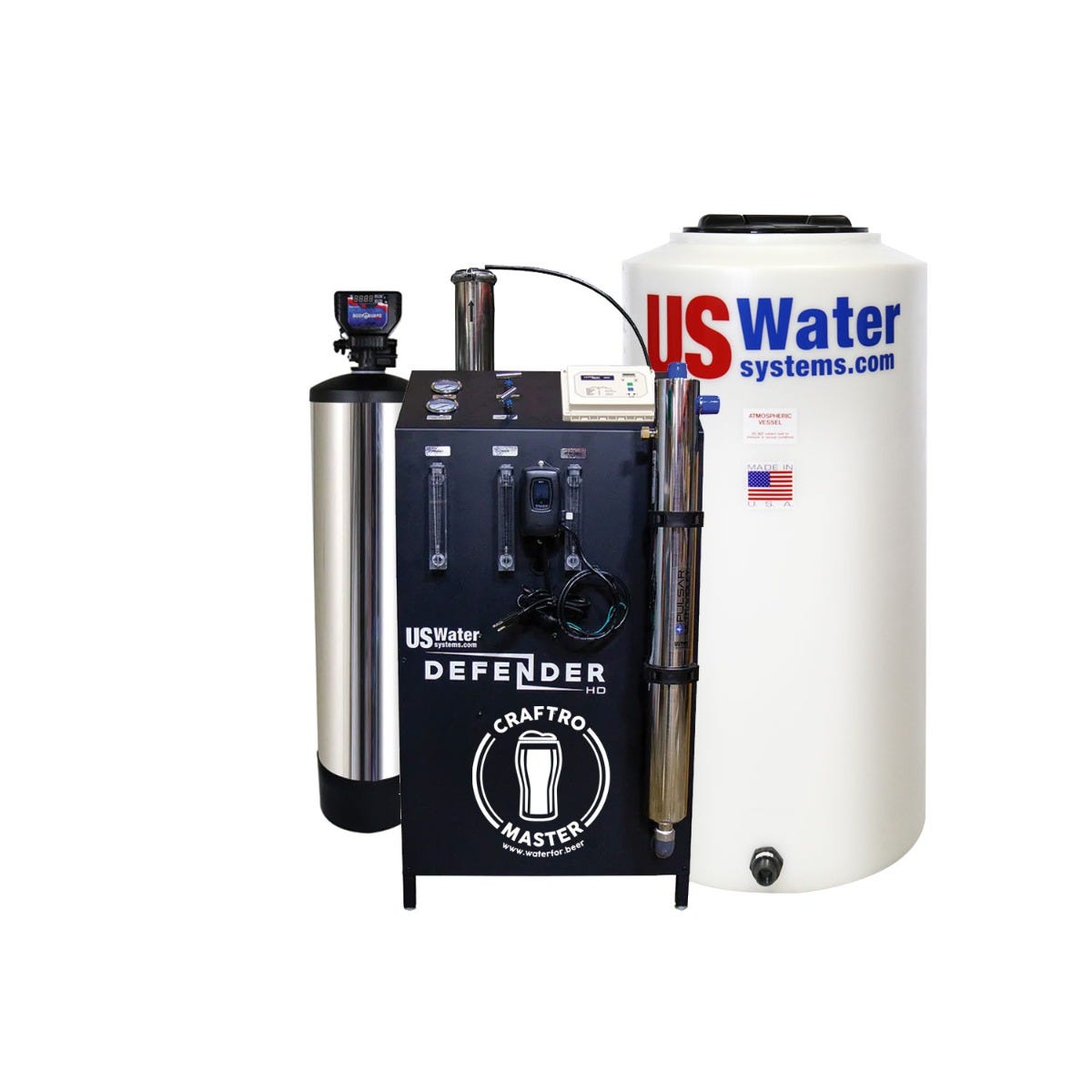

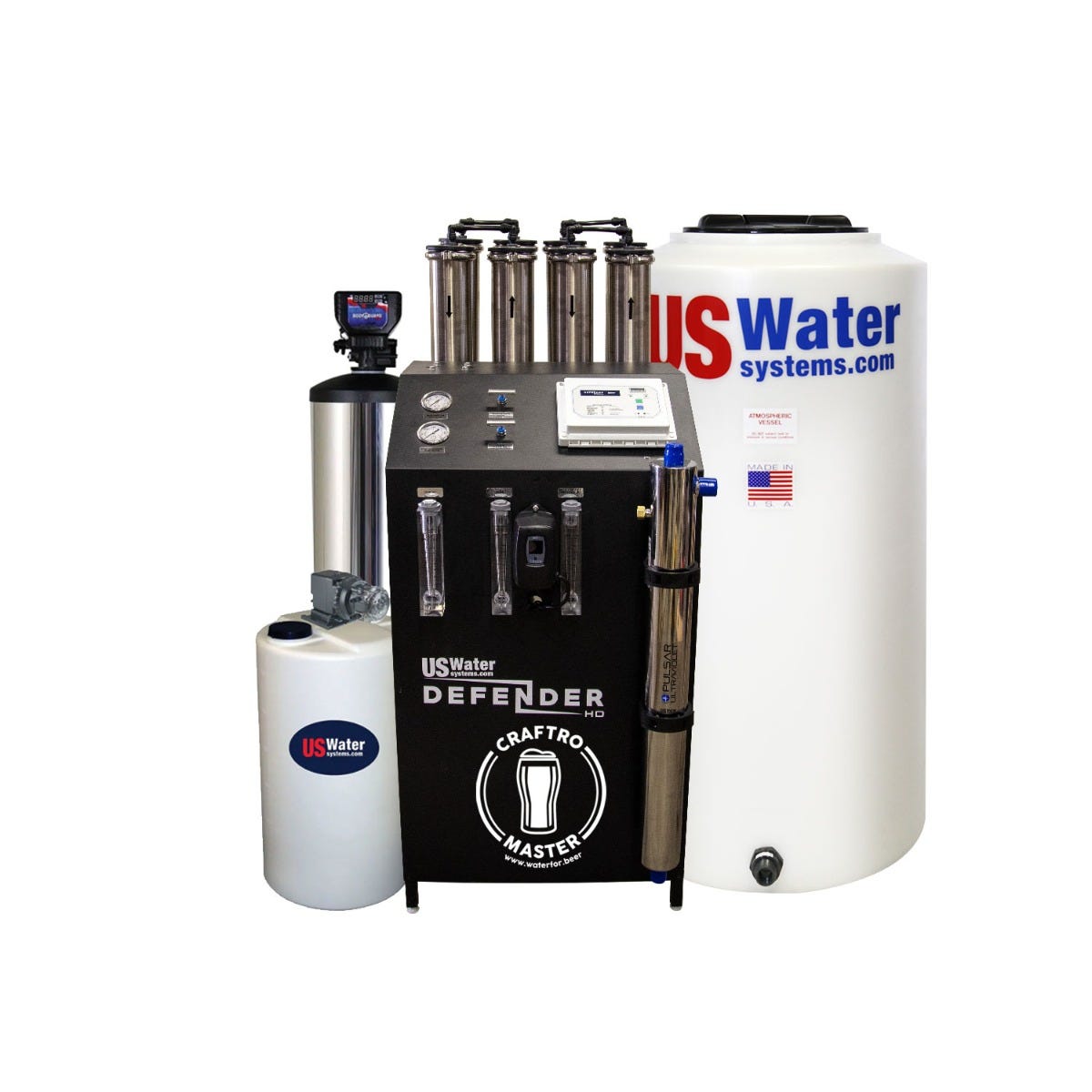

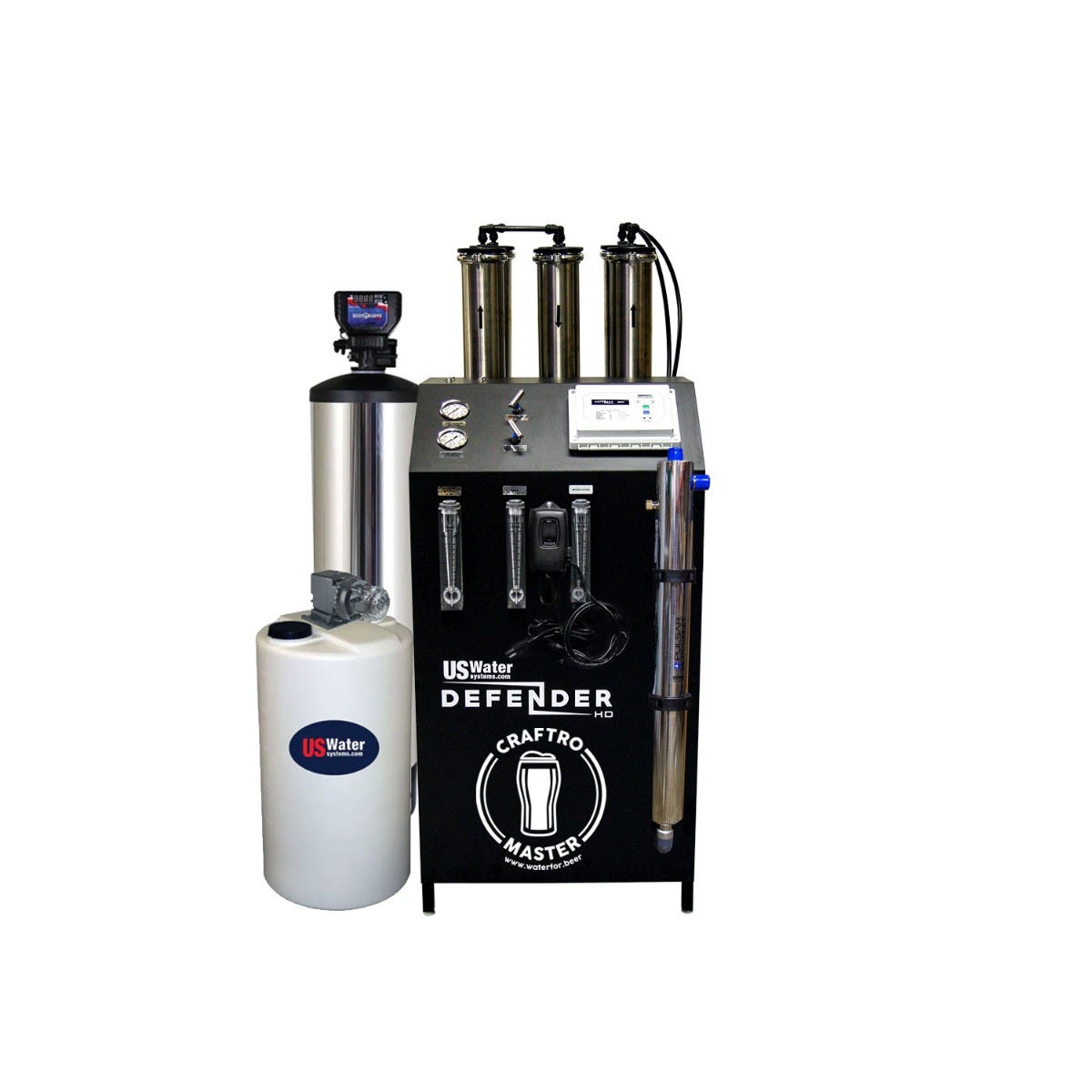

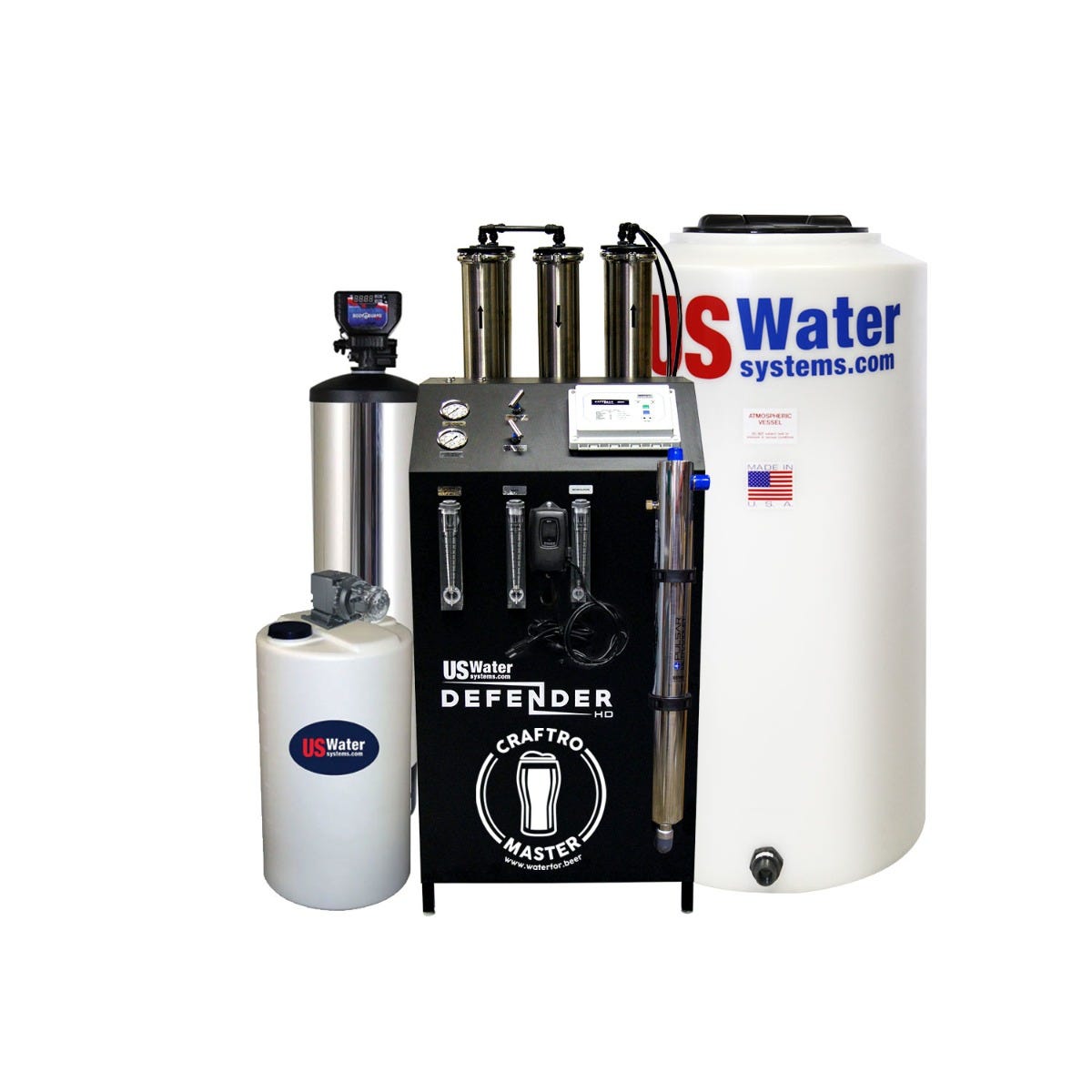

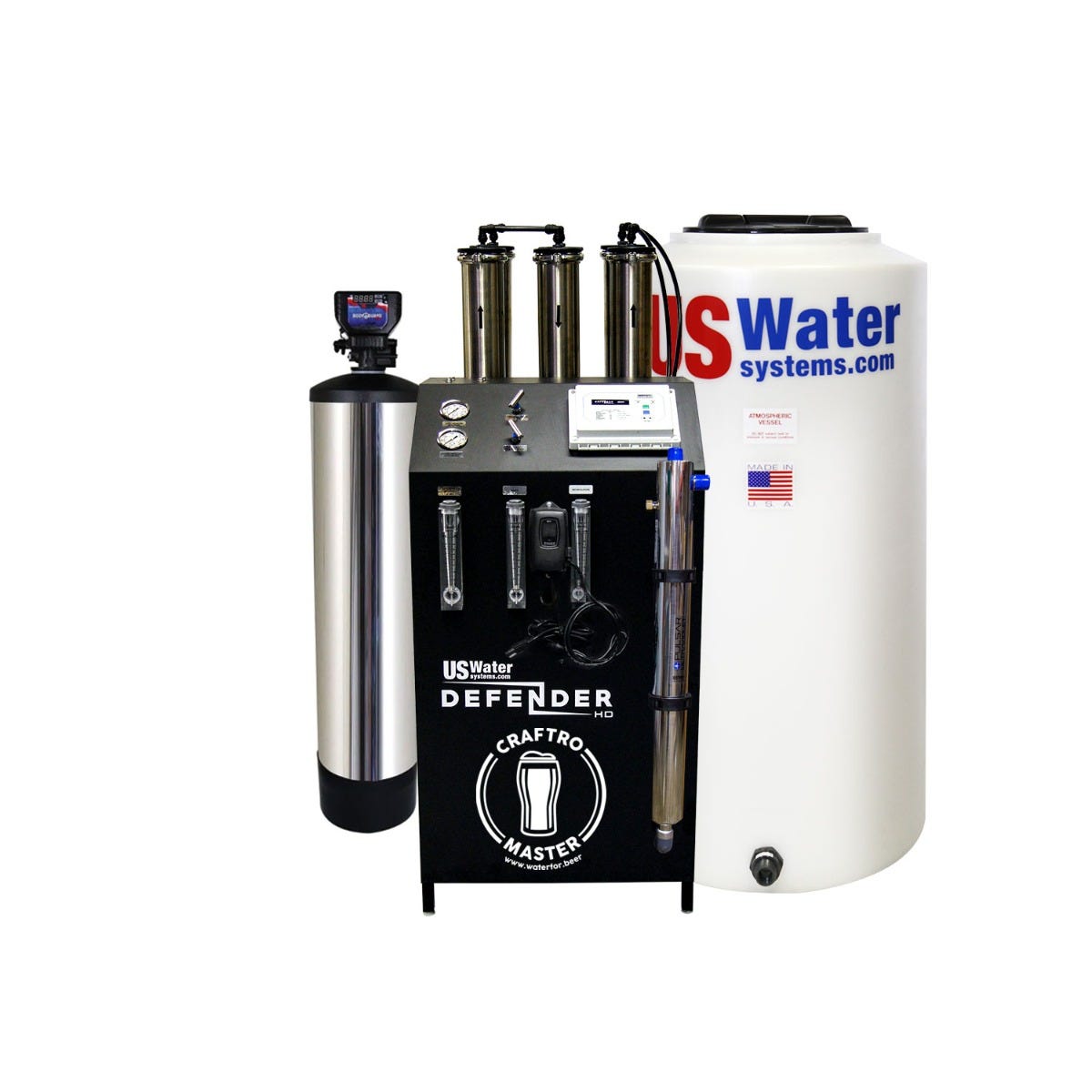

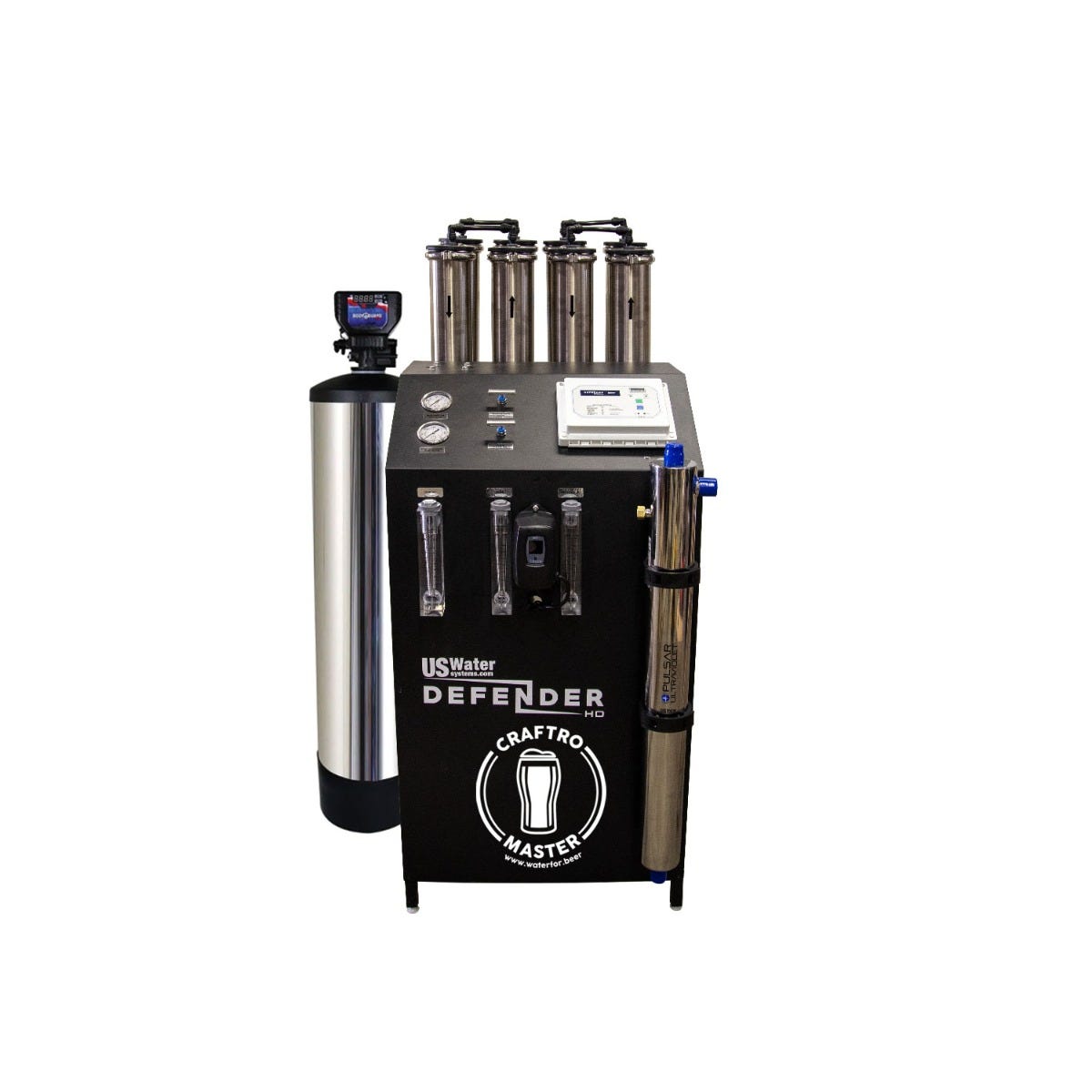

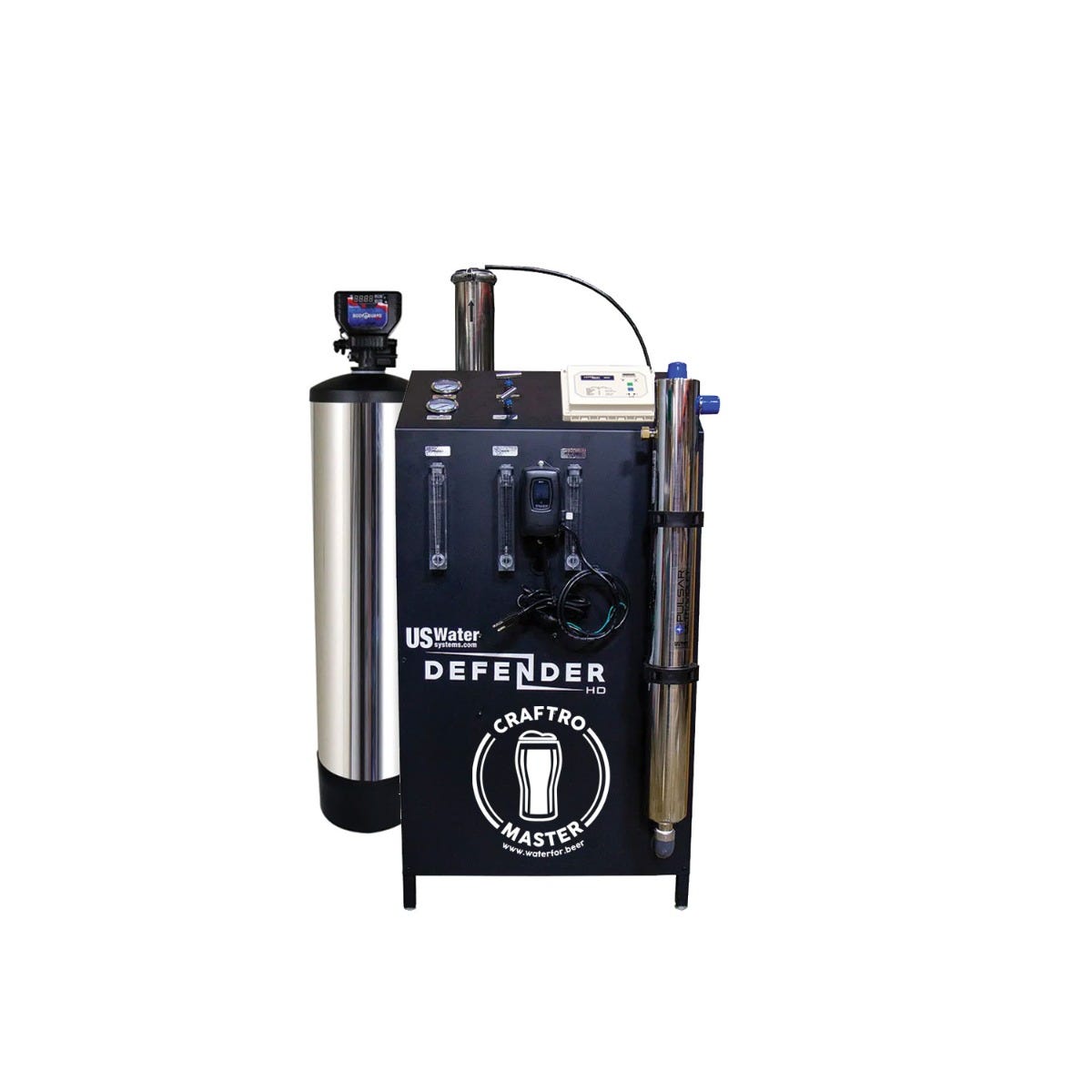

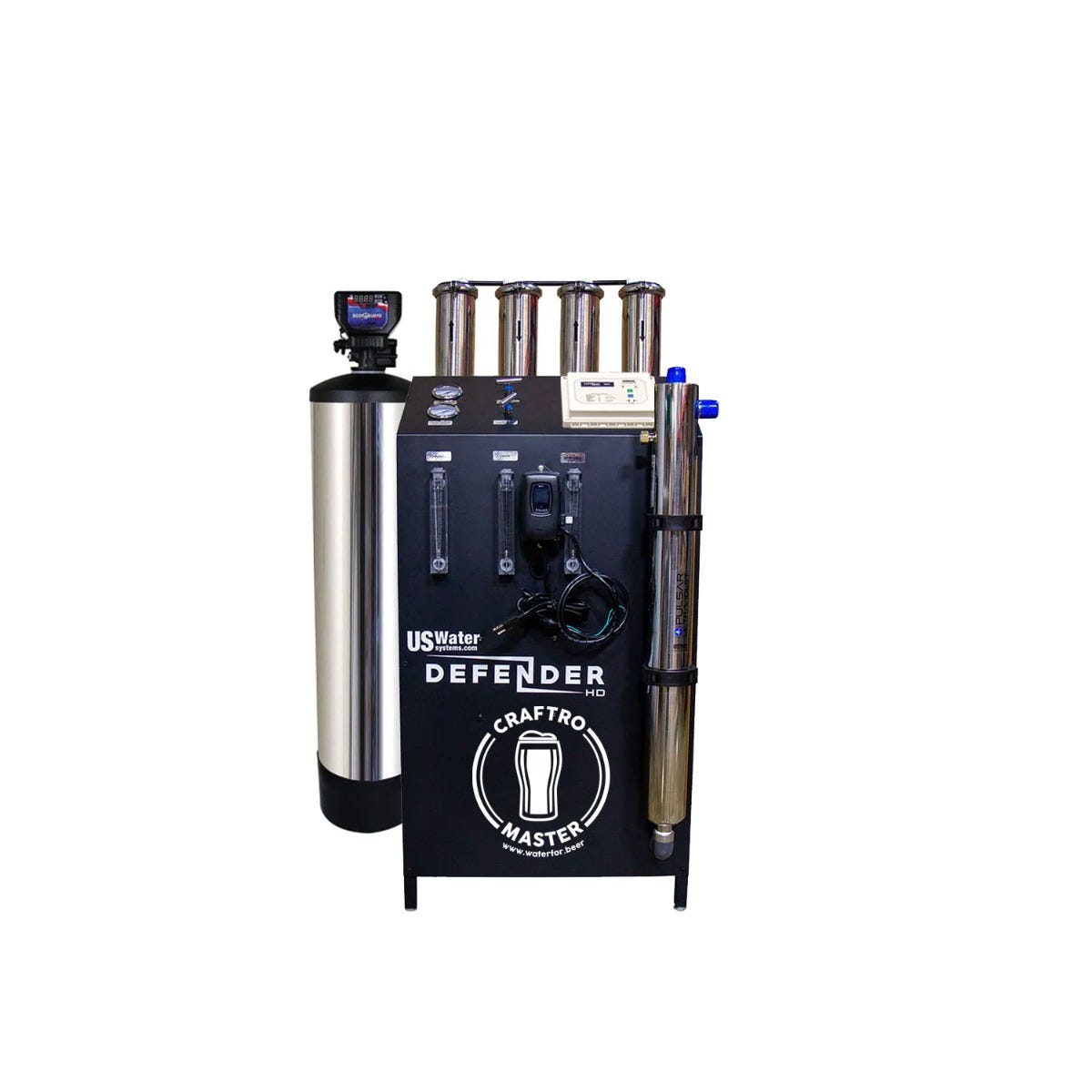

US Water Systems Craft RO Master Brewery Reverse Osmosis System

The Craft RO Master Beer Brewing Water Treatment System is modular by design. This allows each system to be customized to fit every brewer's water needs. The Craft RO Master delivers up to 16,000 gallons or 120 barrels of high quality water per day. At the heart of this system sits an American made RO module, built with commercial grade American craftsmanship.

Brewer holding up a fresh brewed beer for the taste testing

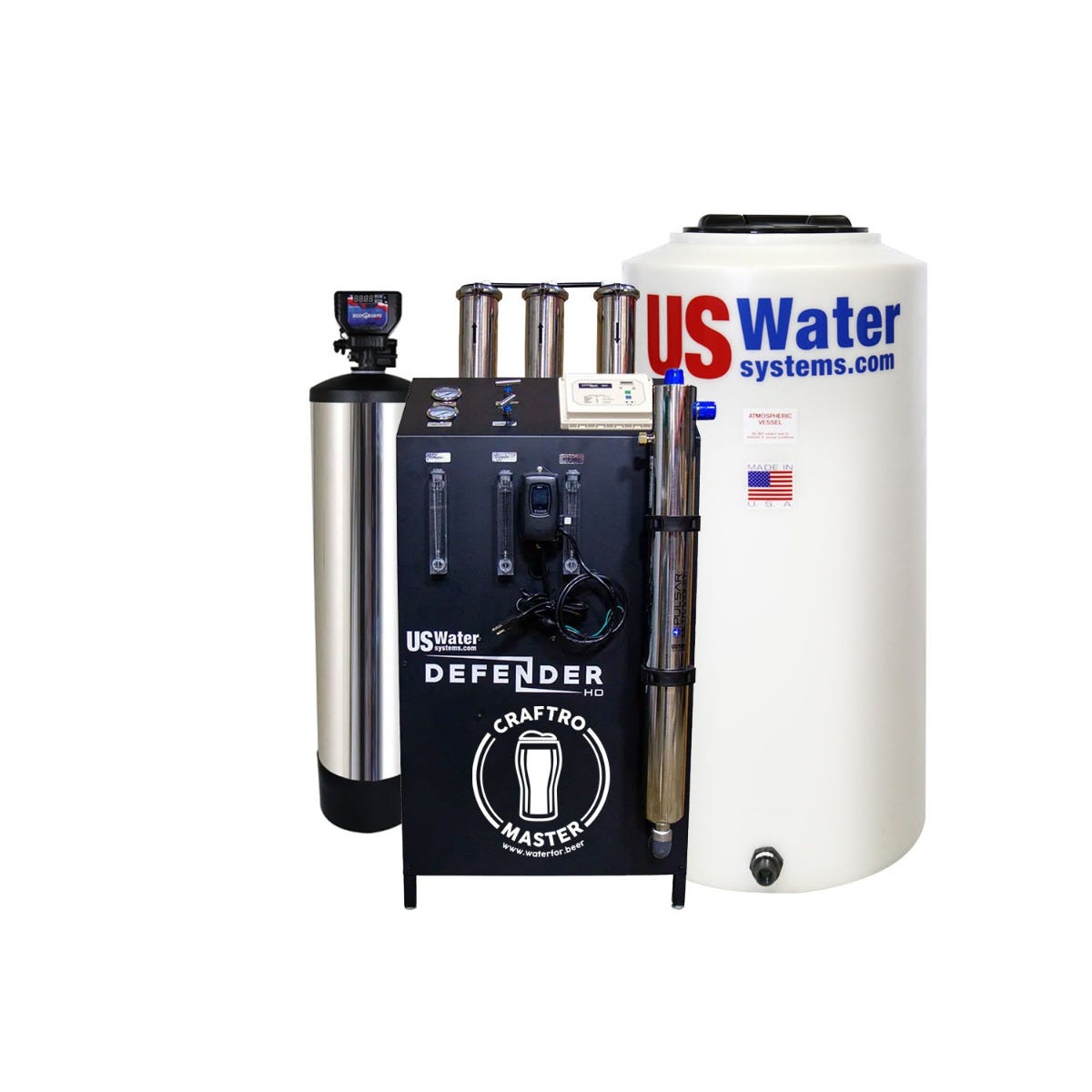

Craft RO Master 6,000 GPD

Front view

Side view

Back view

United States Brewery in action using US Water Systems Craft RO Master Equipment

Key Benefits

Reverse Osmosis
99% reduction of contaminants

Fully Customizable
Built for your specific application

Amazing Efficiency
Wastes just 1 gallon for every 5 gallons it makes

Low Energy
Operates at up to 80 psi, saving up to 40% on energy usage

Incredible Capacity
We can purify 2,000 to 16,000 gallons per day and everything in-between

Unparalleled Longevity
Our systems are designed to operated for 20+ years

Precision Production
Spot on... every step of the way

Fully Scalable and Expandable
Our systems grow right with you

Fully Automated
Giving you more time to brew beer, not fix problems.

Why Reverse Osmosis Is The Best Choice

At US Water Systems we believe that craft beer brewing is an art, and that every artist deserves to have the highest quality canvas on which to ply their trade. For Beer brewing that canvas is pure, contaminant free water. The reverse osmosis process produces water that is soft, mildly acidic and free of contaminants that would affect the taste of your brew. This effectively provides the Brewmaster with water that is in a pure, blank state. Blank state water allows the Brewmaster to adjust levels of calcium, magnesium, sodium, chloride, sulfates, carbonates, and bicarbonates to deliver the desired flavor profile of the beer.

Cheers, let the beer drinking begin after a good brewing session

Keep The Beer Flowing

The Craft RO Master is a system that is engineered to last for 15 to 20 years with very little maintenance. The RO Module is American made and achieves 75% recovery while most commercial reverse osmosis systems still operate at 15% recovery. To put that in perspective, a standard reverse osmosis system that produces 2,000 gallons per day, you would also waste about 11,000 gallons a day! Our smallest system makes 2,000 gallons a day and wastes less than 700 gallons.

Craft RO Master Solution

US Water BodyGuard Plus Backwashing Carbon Filter

2,000 to 16,000 GPD US Water High Performance RO System (220 Volt)

Atmospheric Tank Package with Liquid Level Controls

Grundfos MQ3
Variable Speed Pump

US Water Systems Pulsar Ultraviolet Disinfection

US Water BodyGuard Plus Backwashing Carbon Filter

2,000 to 16,000 GPD US Water High Performance RO System (220 Volt)

Atmospheric Tank Package with Liquid Level Controls

Grundfos MQ3
Variable Speed Pump

US Water Systems Pulsar Ultraviolet Disinfection

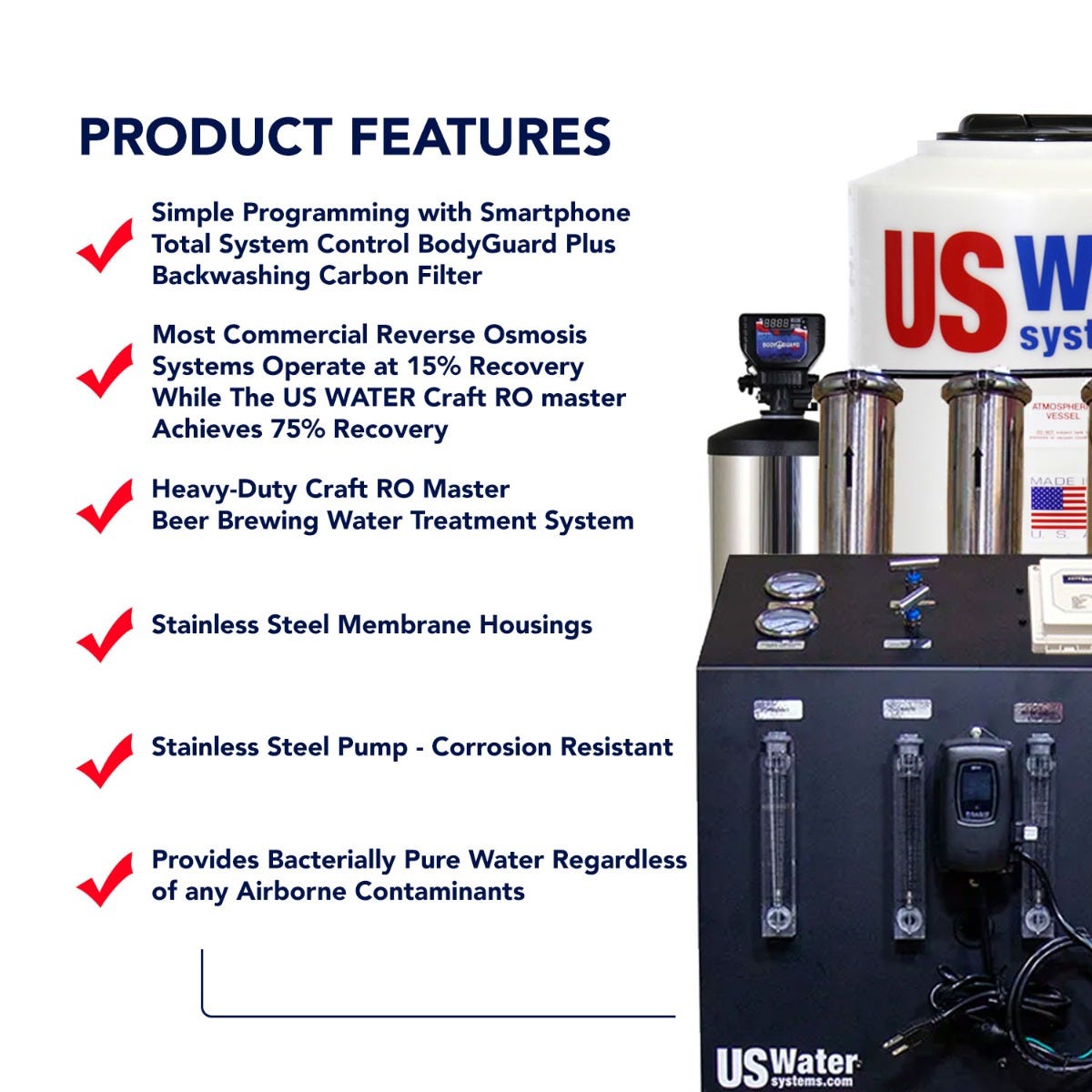

Stage 1

Bodyguard Plus backwashing carbon filter removes chlorine and chloramines to dramatically extend membrane life

Stage 2

Stainless Steel Membrane Housings
Chemical Pump Outlet - automatic operation of anti-scalant injection
Feed Solenoid Valve - positive shutoff
Low Feed Pressure Switch - shuts down system when pressure is low
Permeate Flow Meter - enables precise adjustment of the system
Concentrate Flow Meter - allows proper waste water control
316 Stainless Steel Concentrate Valve - no corrosion
Pre-filter Inlet/Outlet Pressure Gauges - visual water pressure monitoring
Pump Pressure Gauge - allows precise adjustment
Stainless Steel Pump - corrosion resistant
TDS Controller - allows for greatest amount of economy and control
Low Energy Membranes - operate at lower PSI to extend system life and save up to 40% on energy

Stage 3

Choice of Tank Sizes - No Tank, 140, 250, 500, 1000 gallons

Stage 4

Delivers whatever volume is demanded up to 22 GPM

Stage 5

Provides bacterially pure water regardless of any airborne contaminants

Which Pumps are Not True Commercial RO Pumps?

Diaphragm Pump

Very light duty pump for intermittent applications. Maybe something you would apply to an under-sink RO

Rotary Vain Pump

Light duty pump for small RO systems where continual operation is not critical Not for heavy duty operations

Multi-Stage Centrifugal Pump

Engineered to operate continuously for long periods of time. A True Commercial Pump that you can count on

A True Commercial RO System Starts With a True Commercial-Industrial Grade Pump and Goulds is the Best of the Best!

Hardness Map

Hardness Protection

NOTE: For greatest economy, longevity and water quality the anti-scalant is placed before the RO system. The system can double in capacity by adding a second RO system and carbon filter at any time. With Anti-Scalant, the system warranty is 2 years. Without it, the warranty is 1 year.

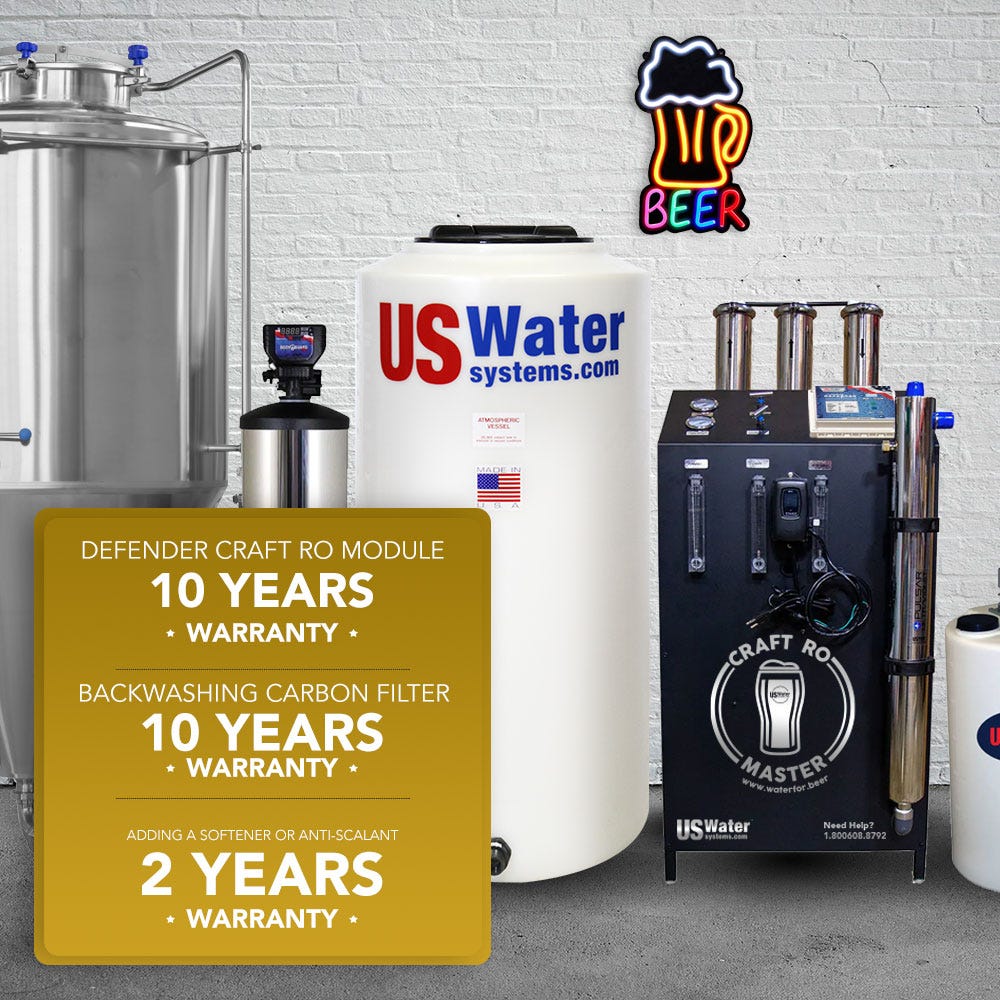

Eligible for 2-Year Warranty with Water Softener or anti-scalant injection

Test Parameters: *550 TDS Filtered (5 Micron), De-Chlorinated, Municipal Feed Water, 65 psi (4.50 bar) Feed Pressure, 100 psi (6.89 bar) Operating Pressure, 77 Degrees F (25 Degrees C), Recovery as stated, 7.0 pH. Data taken after 60 minutes of operation. Scale prevention measures must be taken to prolong membrane life.

Low temperatures and high feed water TDS levels will significantly affect system's production capabilities. Computer projections should be run for individual applications which do not meet or exceed minimum and maximum operating limits.

NOTE: US Water rates their Reverse Osmosis Systems under industry standards which are tested at 77 degree F, 500 TDS and 60 psi pressure. Production can vary dramatically depending upon water pressure, temperature and TDS (total dissolved solids) levels.

Additionally, for a reverse osmosis system to work effectively and economically, the following must be substantially removed from the water: hardness (to below 1gpg) - which means that a water softeners or anti-scalant must be used, chlorine, iron, sulfur and manganese. If these contaminants are removed and the entire system is purchased from US Water, there will be a 2-year system warranty. Warranty is void if these conditions are not met.

WARNING!
Anti-scalant is shipped as a concentrated solution. This concentrated solution must be mixed with clean RO or Distilled water to the proper level for each system specifically. A water analysis and RO system flow rates must be used to figure the site specific mixture and dose rate. You must call1-800-608-8792 and make arrangements to send your water analysis and flow rate info to our engineers to give you the site specific dosage and mixture. Over or Under concentrated solutions could damage the RO membranes.
