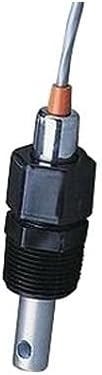

CS10 Resistivity Sensor

List Price: Factory Direct Price: SALE PRICE:
$830.55 $553.7
$498.33
$498.33
40% OFF FACTORY DIRECT SAVINGS
SKU: 730-CS10

Wetted materials of construction are 316 stainless steel and Teflon®*, with double O-ring seals at all points. The first EPR O-ring bears the brunt of process interface, allowing the second O-ring to maintain reliable sealing, free from chemical attack.
Subtotal: $498.33

Free Shipping

Free standard shipping on most products over $199.

One Year Satisfaction Guarantee

Learn More.
CS10 Resistivity Sensor - US Water Systems

CS10 Resistivity Sensor

$498.33
CS10 Resistivity Sensor - US Water Systems

CS10 Resistivity Sensor

$498.33
Product Overview

Wetted materials of construction are 316 stainless steel and Teflon®*, with double O-ring seals at all points. The first EPR O-ring bears the brunt of process interface, allowing the second O-ring to maintain reliable sealing, free from chemical attack. An integral temperature element allows automatic compensation for maximum accuracy. Leads are 10 ft./3 meters standard. Process connections are made via a bored through swage 3/4” NPT fitting as standard. This fitting may be installed into a line or tank, or may be reversed and connected to a standpipe for use in a submersion configuration.

Specifications:

  • Constant: 0.05
  • Temperature Compensation:  Two integral temperature sensors provide automatic TC to 25ºC.
  • Pressure/Temp Limits:  100 psi/690 kPa @ 212ºF/100ºC.
  • Bushing: Modular Polypropylene threaded 3/4” NPT. 1/2” PVDF or 316 stainless steel fittings (optional).
  • Cable:  Shielded 10 ft./3 meters standard; 25 and 100 ft./ 8 and 30 meter lengths available.
  • Dimensions: Metal portion 30 L x 13 Dia. mm/ 1.2 L x .5 Dia. in.; overall length 91 mm/3.6 in.
Literature | Manual Product Overview
Resistivity Sensor CS10
Resistivity Sensor CS10
Videos Literature | Manual
