Econ Stennicator 1:128 Proportional Pump | E20MH81S

Econ Stennicator Proportional Pump 1:128 Medicator

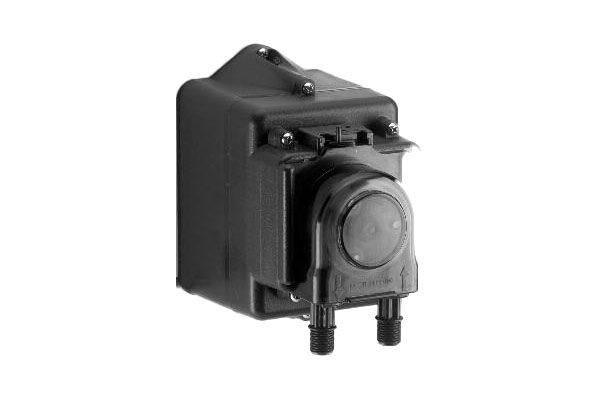

The Stennicator is a compact, proportional pump for livestock operations requiring a dosage ratio of 1:28. It functions as a medicator and dispenses iodine, vaccines, acids, chlorine, electrolytes and more. The pump accepts a signal from a water meter providing a dry contact at a rate of 1 or 10 ppg or 1 ppl and injects directly into the water line. The Stennicator also features a signal repeater relay that can repeat the incoming signal to another Stennicator, controller or other device. When utilizing a house controller, the standby setting stops the pump from injecting but it still sends the water signal to the controller.

• Compact and easy to install, the Stennicator accepts a pulse from a dry contact water meter. Adjustable to accept a signal from a 1 or 10 pulse per gallon (ppg) or 1 ppl (liter). The standby mode continues to send pulse to house controller.
• Injects directly into line eliminating water flow restriction
• Stock solution does not contact any moving parts
• Unaffected by water quality, scale or solids
• A second pump can be added to handle higher flow rates (5.4 gpm)
• Easily serviced with effortless tube replacement

One Stennicator is utilized when the water consumption is less than 3,000 gallons per day at a water flow of 2.7 gallons per minute. Two Stennicators are utilized to achieve 1:128 dosing for water consumption for more than 3000 gpd at a water flow up to 5.4 gallons per minute.

Features

• On/off switch
• Brushless motor
• Totally enclosed
• 3-point roller design assists in anti-siphon protection
• Pump head requires no valves, allows for easy maintenance
• Self-priming against maximum working pressure foot valve not required
• Pump does not lose prime or vapor lock
• Pumps off-gassing solutions and can run dry
• Output volume is not affected by back pressure
• Easy to change pump tube; lubrication is not required
• All pump accessories included allow a fast and easy installation
• UL & cUL for indoor & outdoor use

Accessory Kit Shipped With Each Pump

• 3 connecting nuts 1/4"
• 3 ferrules 1/4"
• 1 injection check valve 80 psi (5.5 bar)
• 1 weighted suction line strainer 1/4"
• 1 20' roll suction/discharge tubing 1/4" white
• 1 additional pump tube
• 1 manual
