Fleck 2815 1.5" Single Tank Commercial Metered Water Softener
SKU:
140-28 : 140-28-120-S-4M
The Fleck 2815 Single Tank Commercial Metered Water Softener is for medium-duty applications such as hotels, restaurants, car washes and many other manufacturing applications. Solid-State SXT Controllers and 1.5” Clack Meter make this one of the most popular and reliable systems on the market today.
Subtotal:
$4,157.00
Free Shipping
Free standard shipping on most products over $199.
One Year Satisfaction Guarantee
Learn More.

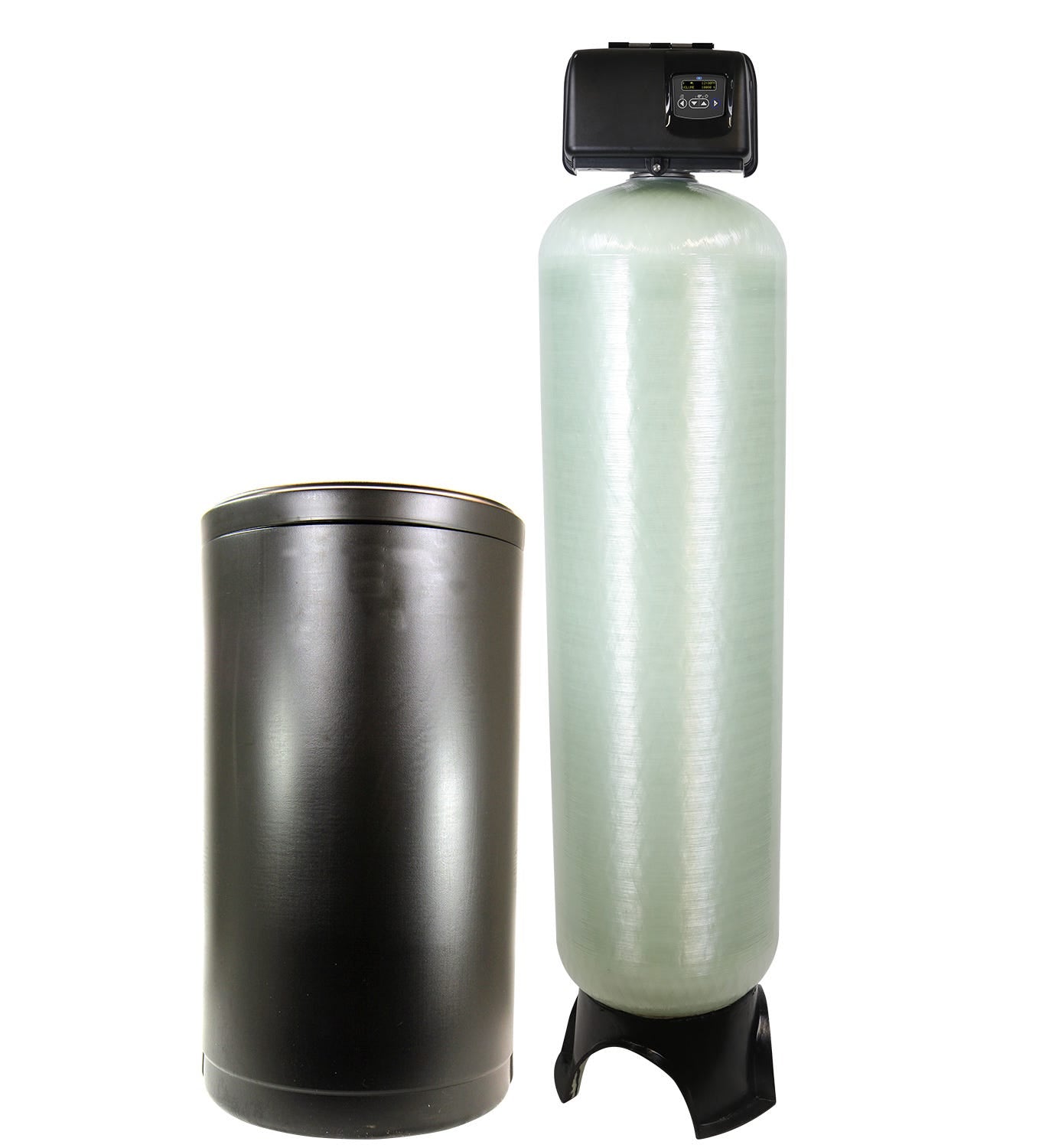

Fleck 2815 1.5" Single Tank Commercial Metered Water Softener
This 1-1/2" full flow Fleck 2815 Valve with SXT controller and 1-1/2" Clack meter is a heavy duty system capable of continuous flow and is available in 120,000 to 450,000 Grains Capacities.
Features & Benefits
- User friendly Fleck 2815 control valve
- Full 1.5" valve for high flow rates
- Premium High Capacity Resin
- SXT Electronic Controls
- Clack Meter
- Up to 450,000 Grains Maximum Capacity
- Brine tank has grid plate for maximum saturation of brine
- Safety brine valve with air check
- Warranty:
- 5 Years on Tanks
- 5 Years on Valve & Electronics
- 1 Years on all Parts
Specifications
| Model # | Resin | Capacity | Gravel | Continuous Flow Rate |
|---|---|---|---|---|
| 140-28-120-S-4M VIEW DRAWING |
4.0 cu/ft | 120,000 grains | 75 lbs | 20 GPM |
| 140-28-150-S-4M VIEW DRAWING |
5.0 cu/ft | 150,000 grains | 100 lbs | 25 GPM |
| 140-28-210-S-4M VIEW DRAWING |
7.0 cu/ft | 210,000 grains | 150 lbs | 35 GPM |
| 140-28-300-S-4M VIEW DRAWING |
10.0 cu/ft | 300,000 grains | 250 lbs | 40 GPM |
| 140-28-450-S-4M VIEW DRAWING |
15.0 cu/ft | 450,000 grains | 350 lbs | 45 GPM |
| Peak Flow Rate |
Backwash Flow Rate |
Resin Tank | Brine Tank | Shipping Weight |
|---|---|---|---|---|
| 41 GPM | 7 GPM | 16" x 65" | 24" x 50" | 440 lbs |
| 53 GPM | 10 GPM | 18" x 65" | 24" x 50" | 558 lbs |
| 60 GPM | 12 GPM | 21" x 62" | 24" x 50" | 725 lbs |
| 66 GPM | 15 GPM | 24" x 72" | 30" x 48" | 1054 lbs |
| 66 GPM | 25 GPM | 30" x 72" | 39" x 48" | 1523 lbs |
Space Required:73" L x 39" W x 88" H
