Fleck 2900 2" Single Tank Commercial Metered Softener
Cyber Week Sale Ends:
SKU:
140-29-S : 140-29-S-120-4M
The Fleck 2900 Single Tank Commercial Metered Water Softener is for heavy-duty applications such as hotels, restaurants, car washes and many other manufacturing applications. Solid-State NXT2 Controllers and 2” Stainless Steel Clack Meters make this one of the most popular systems on the market today.
GUARANTEED LOWEST PRICE + $100 GIFT CARD
Find it cheaper elsewhere? We'll beat that price or reward you with a $100 US Water Systems gift card.
Applies to identical products only. Available on prepaid orders or orders with 50%+ down payment. Does not include shipping, handling, or limited-time promotions.
Subtotal:
$4,680.00
Free Shipping
Free standard shipping on most products over $199.
One Year Satisfaction Guarantee
Learn More.

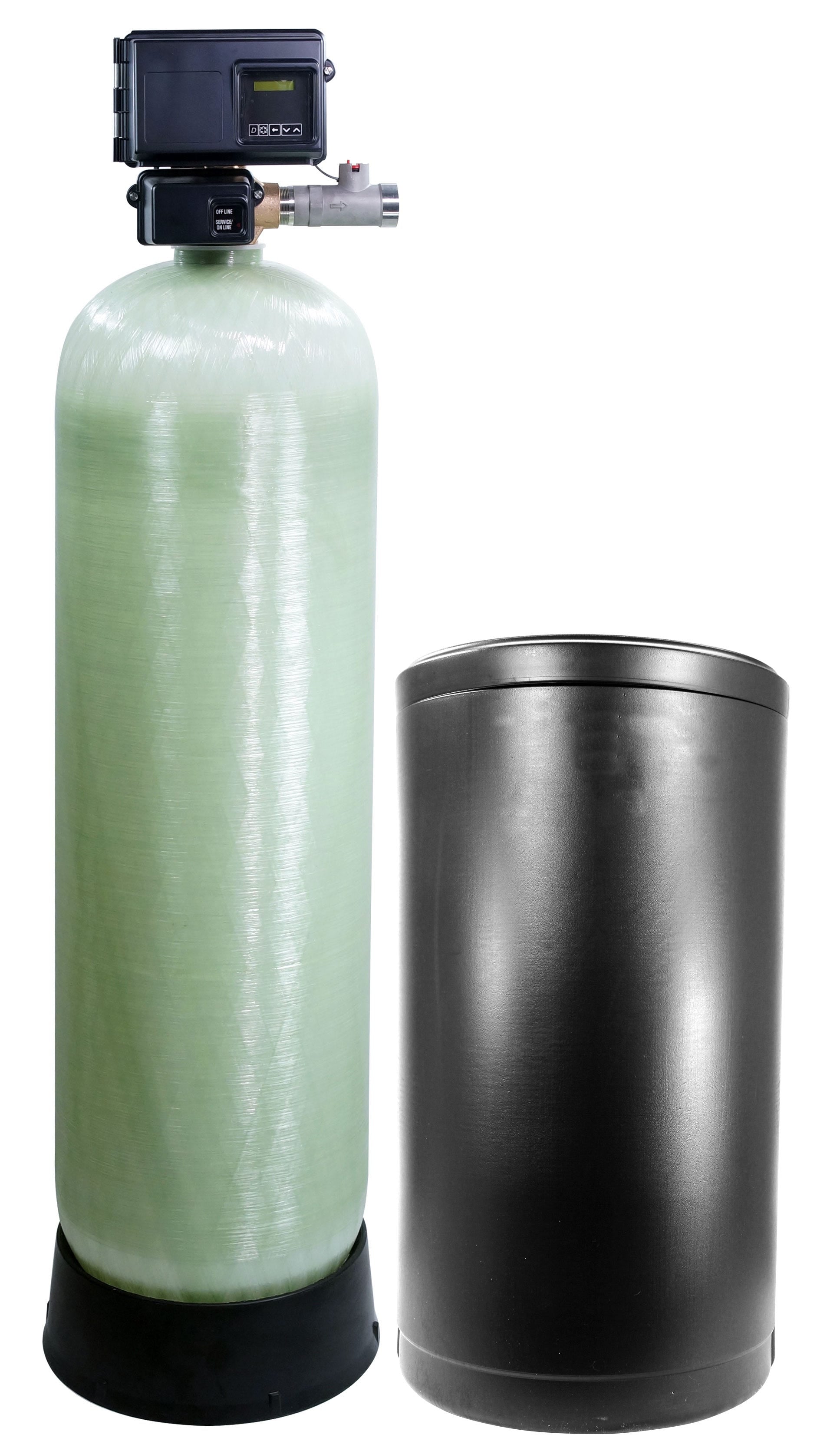

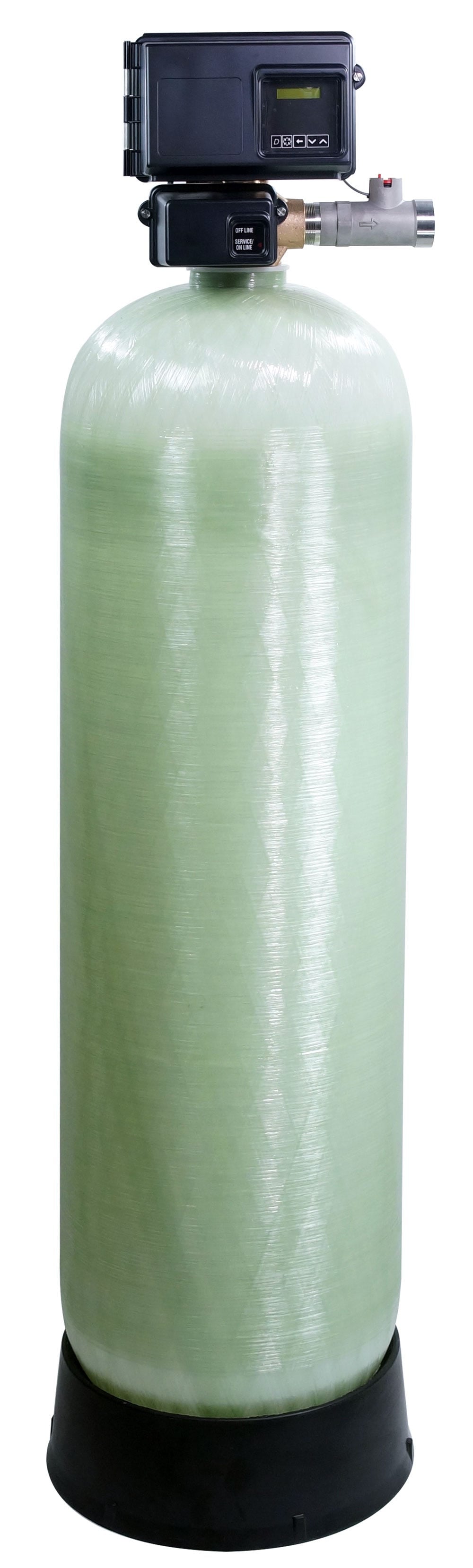

Fleck 2900 2" Single Tank Commercial Metered Softener
This is a 2" full flow Fleck 2900S single water softener with NXT2 controller and 2" Clack meter. It is a very heavy-duty system capable of continuous flow and is available in 120,000 to 600,000 Grain Capacities.
Features
- Full 2.0" valve for high flow rates
- Utilizes high-capacity ion-exchange resin
- Utilizes NXT2 Programmable Controller
- Up to 600,000 Grains Maximum Capacity

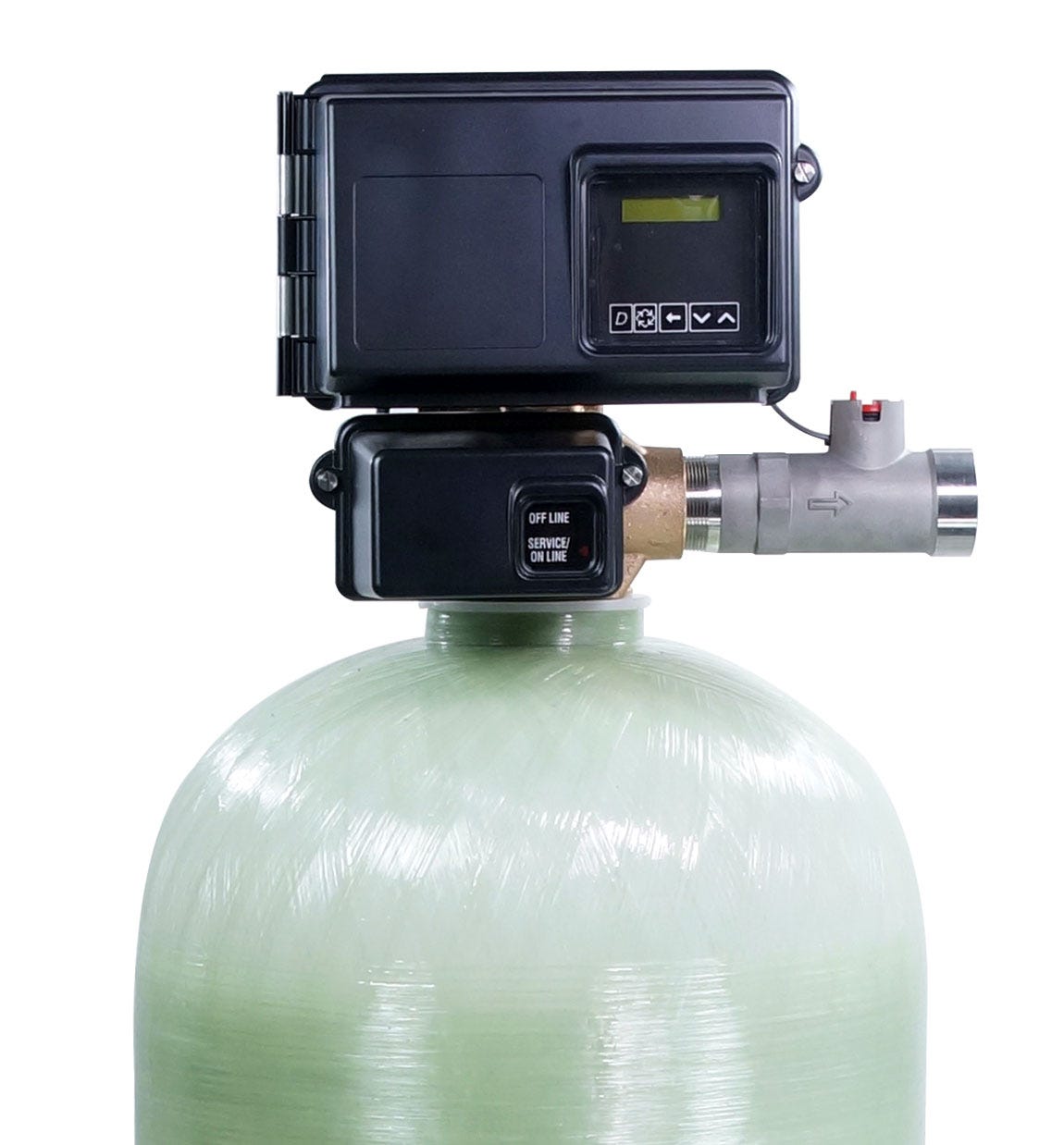

- User friendly Fleck 2900S control valve with NXT2 Control
- The NXT2 Network Controller uses on-board communication capabilities to link multiple commercial valves (via off-the-shelf CAT5 or better cables) for a variety of system types.
- Safety brine valve with air check
- Tank Information:
- 100% composite fiberglass construction
- Outstanding performance and durability in harsh chemical environments
- Absolutely will not - and cannot - rust
- Requires no maintenance
- Materials of Construction: Polyethylene inner shell (PVDF available)
- Operating Parameters:
- Maximum operating pressure: 100 psi
- Maximum operating temperature: 110°F
- Minimum burst at 600 psi
- Tested to 250,000 cycles without leakage
- NSF Certified
- ASME Tanks Available Upon Request
- Uses "HUB & LATERAL DISTRIBUTORS"
- 5 Year Warranty on Valve, Electronics, & Tanks
*Ask to see written copy
Specifications
| Model # | Resin | Capacity | Continuous Flow Rate |
|---|---|---|---|
| 140-29-120-S-4M VIEW DRAWING |
4.0 cu/ft | 120,000 grains | 40 GPM |
| 140-29-150-S-4M VIEW DRAWING |
5.0 cu/ft | 150,000 grains | 50 GPM |
| 140-29-210-S-4M VIEW DRAWING |
7.0 cu/ft | 210,000 grains | 55 GPM |
| 140-29-300-S-4M VIEW DRAWING |
10.0 cu/ft | 300,000 grains | 60 GPM |
| 140-29-450-S-4M VIEW DRAWING |
15.0 cu/ft | 450,000 grains | 75 GPM |
| 140-29-600-S-4M VIEW DRAWING |
20.0 cu/ft | 600,000 grains | 100 GPM |
| Peak Flow Rate | Backwash Flow Rate |
Resin Tank | Brine Tank |
|---|---|---|---|
| 57 GPM | 7 GPM | 16" x 65" | 24" x 50" |
| 62 GPM | 10 GPM | 18" x 65" | 24" x 50" |
| 77 GPM | 12 GPM | 21" x 62" | 24" x 50" |
| 95 GPM | 15 GPM | 24" x 72" | 30" x 48" |
| 140 GPM | 25 GPM | 30" x 72" | 39" x 48" |
| 140 GPM | 35 GPM | 36" x 72" | 50" x 60" |
