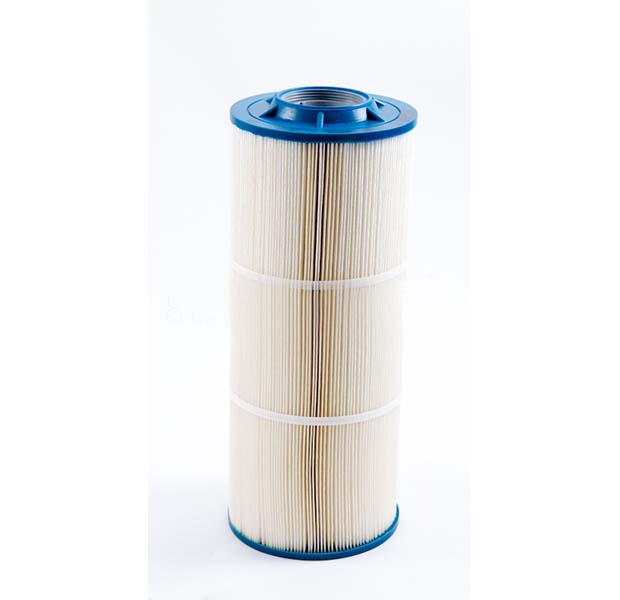

Harmsco HC/90-100 Hurricane 90 Cartridge 100 Micron

HC/90-100 | Harmsco® Hurricane 90 cartridges are made of pleated polyester media for long life and high dirt holding capacity.

Features

• Fewer cartridges for fewer change-outs and lower maintenance cost
• Pleated Polyester-Plus filter media provides higher flow rates and lower initial pressure drop
• Pleated surface area provides higher loading capacity for longer filter life and increased particle removal
• End cap, center tube and media are thermally bonded as one integral component for added strength

Benefits

• High flow capability
• Lower overall operating cost
• Reduced waste disposal
• Longer filter runs for fewer change-outs
• Increased contaminant removal
• Operator friendly

Applications

• Reverse Osmosis Pre-filtration
• Municipal Drinking Water Filtration
• Commercial/Residential Drinking Water Filtration
• Desalination Pre-filtration
• Industrial Water Filtration
• Cooling Tower Filtration
• Chill Water Loop Filtration
• Food & Beverage Filtration
• Marine / Aquatic Filtration
• Marine/Aquatic Filtration

Specifications

• Micron Rating : Nominal micron rating 100
• Filter Media : nominal pleated Polyester-Plus™
• Center Tubes : ABS or PVC
• End Caps : Pliable PVC with sealing surface built-in.
• Temperature : 140°F (60°C) temperature limit.*
• Shrink Wrap : Standard for all antimicrobial cartridges.

*Temperature limits vary and depend on pressure and time under load.

Sizing Guide

• Nominal Micron Rating :100
• Media (sq ft) : 90
• Recommended Flow Rate* (GPM) : 70
• Length (in) : 19-1/2 in
• O.D. (in) : 7-3/4 in

*Harmsco recommends operation at 70% of maximum flow rate for optimum performance.

1 Filter Per Case
