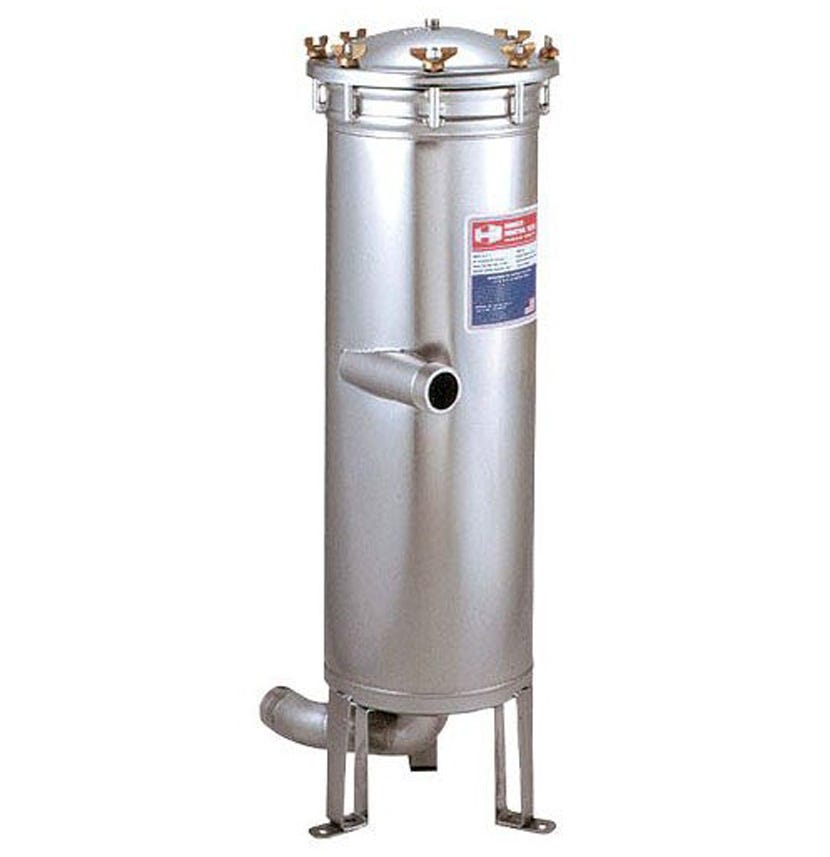

Harmsco HUR-170-HP Hurricane Filter Housing

Harmsco Hurricane HUR-170-HP Stainless Steel Housing

Harmsco® HUR 170 HP Hurricane® filters provide unsurpassed performance. Our unique design separates dense solids prior to cartridge filtration for extended filter life, increased dirt holding capacity and reduced maintenance costs.

Features of the Hurricane HUR-170-HP

• Combination cyclone separator and cartridge filter in a single compact design
• Patented Up-flow design with tangential entry - prevents air entrapment
• Rotational flow flutters media pleats - improving loading performance
• Electropolished 304 stainless steel housing
• Fail-Safe lid closure, rated for 150 psi
• CPVC standpipe (standard) - stainless steel optional
• Three sizes for greater media surface area
• Extensive choice of cartridge micron ratings and media, including carbon block
• NSF 61 listed

Applications

• Commercial/Residential Drinking Water
• Industrial Waste Water Treatment
• Surface Water Treatment Rule (SWTR) LT2
• Process WaterCooling Tower Filtration
• Whole House Filtration
• Reverse Osmosis Pre-filtration
• Desalination Pre-filtration (316 and coated options)
• Ground Water Remediation
• Ground Water Under Direct Influence (GUDI)
• Well Water
• Small Community Compliance LT2

Filter Specifications

• Electropolished 304 stainless steel
• Standpipe - CPVC (standard)
• Temperature - 140°F (60°C) max. Up to 250°F (121°C) with optional stainless steel standpipe and high temperature cartridges installed
• Wing nuts - brass
• Rim gaskets - EPDM (Buna-N, Viton available)
• BSTP optional
• Gauge sample ports (1/4), inlet and outlet
• Pressure - 150 psi (10 bar) max.
• Manufacturers' Part Number - HUR-170-HP or HUR-170 HP

Dimensions

• A - Filter Height: 40-1/2"
• B - Width: 14-3/8"
• C - Diameter: 13"
• D - Inlet: 23-5/8"
• E - Outlet: 3-7/16"
• Pipe Size: 2" NPT
• Drain Size: 1" NPT
• Floor Space: 15" x 15"
• Service Height: 72"

Unlike conventional designs, Hurricanes patented cartridges are made with deep, angled pleats to direct the flow into the pleated area for increased solids removal.
