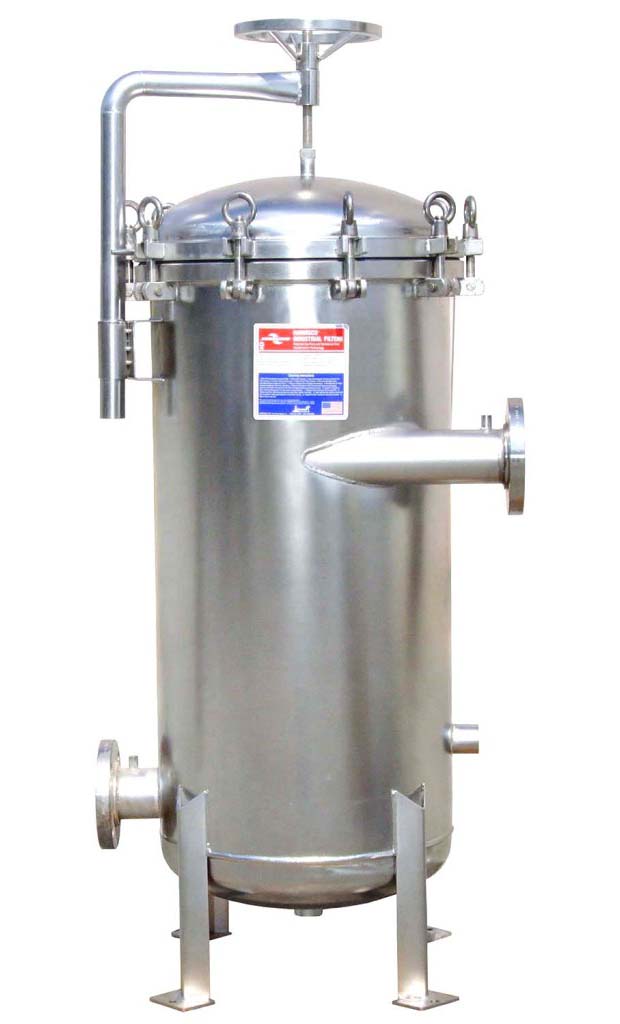

Harmsco HUR-3X170FL Hurricane Swing Bolt Industrial Up-Flow Filter

Harmsco Hurricane HUR 3X170 SB Housing

Harmsco® Hurricane® Swing Bolt filter housings provide unsurpassed performance. Their unique design separates dense solids prior to cartridge filtration for extended filter life, increased dirt holding capacity and reduced maintenance costs.

Features

• Patented Up-flow Design
• NSF 61 listed
• Electro-polished finish - standard
• Swing Bolt closure system
• Combination cyclone separator and cartridge filter in a single compact design
• 304 stainless steel housing and internal components - standard
• The industrys largest selection of cartridge options
• Built to ASME design standards
• Coated option available
• Flow rates up to 450 GPM

Applications

• Municipal Drinking Water
• Cooling Tower Filtration
• Desalination Pre-filtration (coated option)
• Surface Water Treatment Rule (SWTR) LT2
• Industrial Waste Water Treatment
• Reverse Osmosis Pre-filtration
• Ground Water Remediation
• Ground Water Under Direct Influence(GUDI)

Filter Specifications

• Electropolished finish
• Built to ASME design standards
• Standpipes - stainless steel
• Inlet/Outlet - flanged connections
• O-ring housing seal, swing-bolt closure
• Pressure - Up to 150 psi (10 bar) max.
• Temperature - Up to 140°F (60°C)* with standard cartridges. *Up to 200°F (93°C) with HT, and 250°F (121°C) with HTM high temperature cartridges.

Dimensions

• A - Filter Height: 64"
• B - Width: 30"
• C - Diameter: 20"
• D - Inlet: 35-1/4"
• E - Outlet: 12"
• Pipe Size: 3" Flange
• Drain Size: 1-1/2" NPT
• Floor Space: 3.7 ft²
• Service Height: 98-1/2"

Unlike conventional designs, Hurricanes patented cartridges are made with deep, angled pleats to direct the flow into the pleated area for increased solids removal.

Note: The Harmsco Hurricane 3X170FL will be shipped via motor freight.
