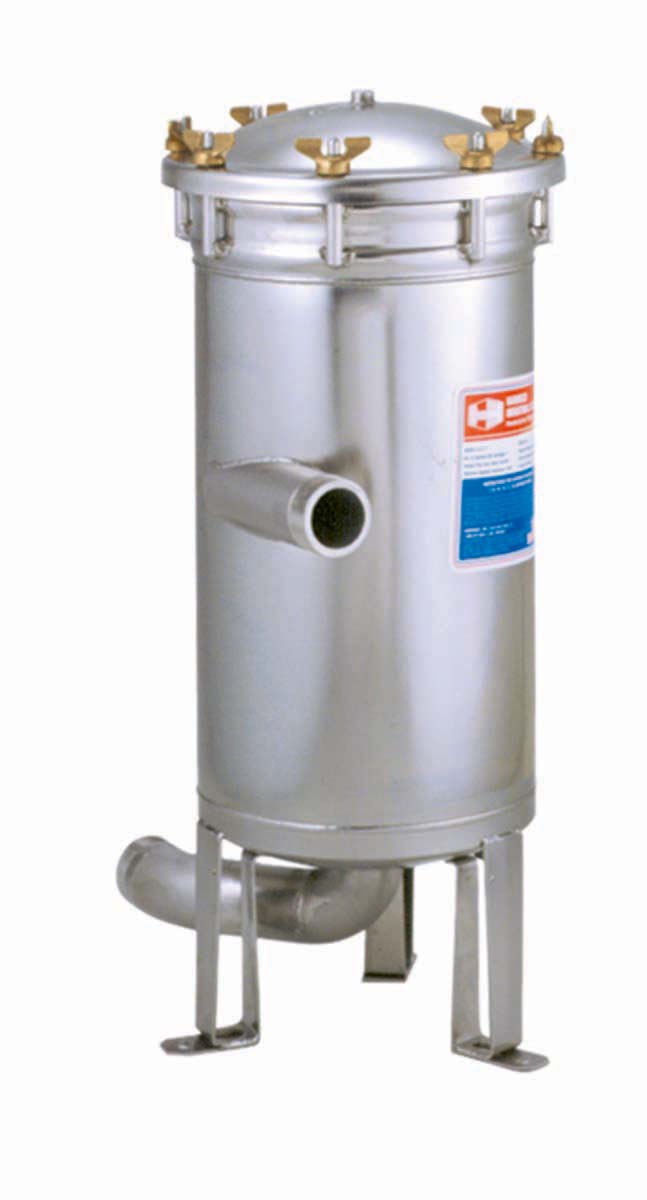

Harmsco HUR-90-HP Hurricane Filter Housing

Harmsco Hurricane HUR-90-HP Housings

Harmsco® HP Hurricane® filters provide unsurpassed performance. Our unique design separates dense solids prior to cartridge filtration for extended filter life, increased dirt holding capacity and reduced maintenance costs.

Features

• Combination cyclone separator and cartridge filter in a single compact design
• Patented Up-flow design with tangential entry - prevents air entrapment
• Rotational flow flutters media pleats - improving loading performance
• Electropolished 304 stainless steel housing
• Fail-Safe lid closure, rated for 150 psi
• CPVC standpipe (standard) - stainless steel optional
• Three sizes for greater media surface area
• Extensive choice of cartridge micron ratings and media, including carbon block
• NSF 61 listed

Applications

• Commercial/Residential Drinking Water
• Industrial Waste Water Treatment
• Surface Water Treatment Rule (SWTR) LT2
• Process WaterCooling Tower Filtration
• Whole House Filtration
• Reverse Osmosis Pre-filtration
• Desalination Pre-filtration (316 and coated options)
• Ground Water Remediation
• Ground Water Under Direct Influence (GUDI)
• Well Water
• Small Community Compliance LT2

Filter Specifications

• Electropolished 304 stainless steel
• Standpipe - CPVC (standard)
• Temperature - 140°F (60°C) max. Up to 250°F (121°C) with optional stainless steel standpipe and high temperature cartridges installed
• Wing nuts - brass
• Rim gaskets - EPDM (Buna-N, Viton available)
• BSTP optional
• Gauge sample ports (1/4), inlet and outlet
• Pressure - 150 psi (10 bar) max.

Dimensions

• A - Filter Height: 29-7/8"
• B - Width: 14-3/8"
• C - Diameter: 13"
• D - Inlet: 17-3/4"
• E - Outlet: 3-7/16"
• Pipe Size: 2" NPT
• Drain Size: 1" NPT
• Floor Space: 15" x 15"
• Service Height: 51"

Unlike conventional designs, Hurricanes patented cartridges are made with deep, angled pleats to direct the flow into the pleated area for increased solids removal.
