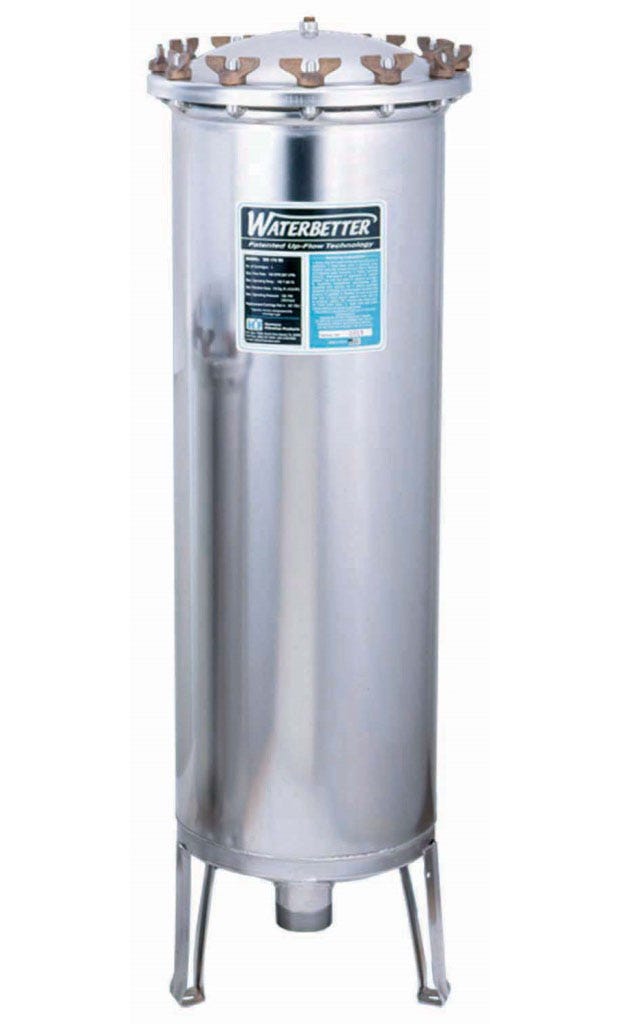

Harmsco WB-170SC WaterBetter Up-Flow Filter Housing

Harmsco® WaterBetter® Single Cartridge Filter Housings - Model WB-170SC

Lower Operation Cost

Harmsco® WB WaterBetter® single-cartridge filters deliver high flow, extended filter life, increased dirt holding capacity and ease of operation.

Features

• Patented Up-flow design
• NSF Certified (All 2" Models)
• CPVC standpipe (standard) - stainless steel optional
• Reduced installation cost
• Simple alternative to complex multiple cartridge housings
• Electropolished 304 stainless steel housing
• Fail Safe closure system
• Extensive choice of cartridge micron ratings and media, including carbon block

• Commercial/Residential Drinking Water
• Industrial Waste Water Treatment
• Surface Water Treatment Rule (SWTR) LT2
• P.O.E. for household
• Ground Water Under Direct Influence (GUDI)
• Cooling Tower Filtration
• Reverse Osmosis Pre-filtration
• Desalination Pre-filtration (coated option)
• Ground Water Remediation
• Utility Water

Filter Specifications

• Electropolished 304 stainless steel
• Standpipe - CPVC
• Rim gaskets - EPDM (Buna-N, Viton available)
• Pressure - 150 psi (10 bar) max.
• Temperature - 140°F (60°C) max. Up to 200°F (93°C) with optional stainless steel standpipe and high temperature cartridges installed
• Wing nuts - brass

Dimensions

• A - Filter Height: 39-1/8"
• B - Drain: 4-1/2"
• C - Diameter: 13"
• D - Outlet: 3-7/8"
• E - Inlet: 4-1/4"
• Pipe Size: 2" NPT
• Drain Size: 1" NPT
• Floor Space: 15" x 15"
• Service Height: 72"
