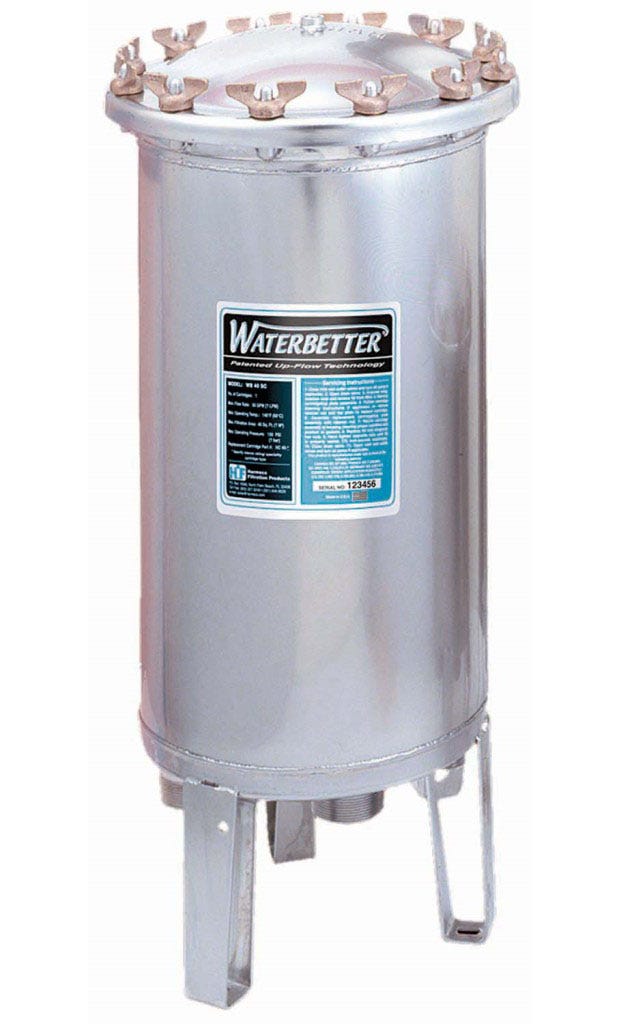

Harmsco® WaterBetter® Single Cartridge Filter Housings - Model WB-90SC
Lower Operation Cost
Harmsco® WB WaterBetter® single-cartridge filters deliver high flow, extended filter life, increased dirt holding capacity and ease of operation.
Features
- Patented Up-flow design
- NSF Certified (All 2" Models)
- CPVC standpipe (standard) - stainless steel optional
- Reduced installation cost
- Simple alternative to complex multiple cartridge housings
- Electropolished 304 stainless steel housing
- Fail Safe closure system
- Extensive choice of cartridge micron ratings and media, including carbon block
Applications
- Commercial/Residential Drinking Water
- Industrial Waste Water Treatment
- Surface Water Treatment Rule (SWTR) LT2
- P.O.E. for household
- Ground Water Under Direct Influence (GUDI)
- Cooling Tower Filtration
- Reverse Osmosis Pre-filtration
- Desalination Pre-filtration (coated option)
- Ground Water Remediation
- Utility Water
Filter Specifications
- Electropolished 304 stainless steel
- Standpipe - CPVC
- Rim gaskets - EPDM (Buna-N, Viton available)
- Pressure - 150 psi (10 bar) max.
- Temperature - 140°F (60°C) max. Up to 200°F (93°C) with optional stainless steel standpipe and high temperature cartridges installed
- Wing nuts - brass
Dimensions
- A - Filter Height: 29-3/8"
- B - Drain: 4-1/2"
- C - Diameter: 13"
- D - Outlet: 3-7/8"
- E - Inlet: 4-1/4"
- Pipe Size: 2" NPT
- Drain Size: 1" NPT
- Floor Space: 15" x 15"
- Service Height: 51"
