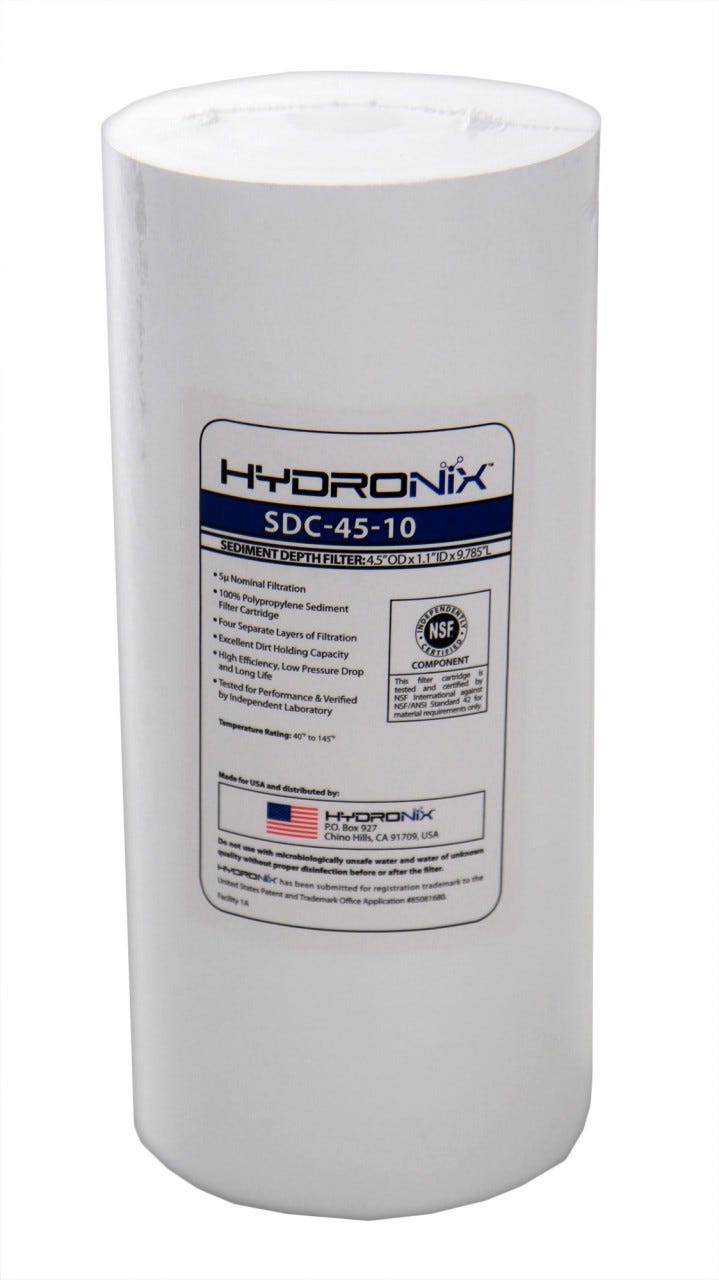

Hydronix 4.5" x 10" Sediment Depth Filter Cartridge | SDC-45-1005

List Price: Factory Direct Price: SALE PRICE:
$18.14 $12.09
$10.88
$10.88
40% OFF FACTORY DIRECT SAVINGS

Veterans Day Sale Ends:

SKU: 630-SDC-45-1005

We have replaced this product with a newer and better performing filter.  See the new filter here:US Water Systems Spun Poly Sediment Filter 4.5" x 10" 5 Micron

Subtotal: $10.88

Free Shipping

Free standard shipping on most products over $199.

One Year Satisfaction Guarantee

Learn More.
Hydronix 4.5" x 10" Sediment Depth Filter Cartridge | SDC-45-1005

Hydronix 4.5" x 10" Sediment Depth Filter Cartridge | SDC-45-1005

$10.88

Hydronix 4.5" x 10" Sediment Depth Filter Cartridge | SDC-45-1005

$10.88

SDCSERIES - 4.5" x 10" (9-7/8") Graded-Density Sediment Depth Filter - SDC-45-1005

  • Manufactured from 100% Pure Polypropylene
  • Graded density for higher dirt holding capacity
  • 5 Micron Nominal Filtration
  • Buy in Bulk: 12 per box

HYDRONIXSDC SERIES SEDIMENT DEPTH CARTRIDGES

  • These 4.5" x 10" (9-7/8") SDC Series Cartridges have true multi-stage depth filtration integrated into their design.
  • Utilizing four (4) separate layers of micron filtration, outside-in flow allows the outer layers to trap larger-sized particles, resulting in much lower pressure drop compared to conventional filters.
  • Trapping various sized particles layer-by-layer,the SDC Series Cartridges provide a much higher dirt holding capacity than standard spun polypropylene and string wound cartridges.
  • Ideal for Point-of-use (POU) and reverse osmosis applications.
  • These cartridges can be used in wide range of applications such as residential, food service, commercial and industrial.

Features & Benefits

  • Low Cost
  • Designed for Superior Performance
  • NSF Standard 42 Component Certified

Specifications

  • Diameter - 4.5"
  • Length - 10" (9-7/8")
  • Initial Flow Rate: 1 psi @ 10 GPM
  • Micron Rating - 5 micron
  • Maximum Operating Temperature: 145°F (63°C)
  • Maximum Pressure Drop: 69°F (20°C) 46.4 psi (3.2 kg/cm2)
  • Recommended replaceable pressure drop: 21.75 PSI (1.5kg/cm2)
  • Operating Temperature: 40 Degrees F to 145 Degrees F

*Call for Quantity Discounts
