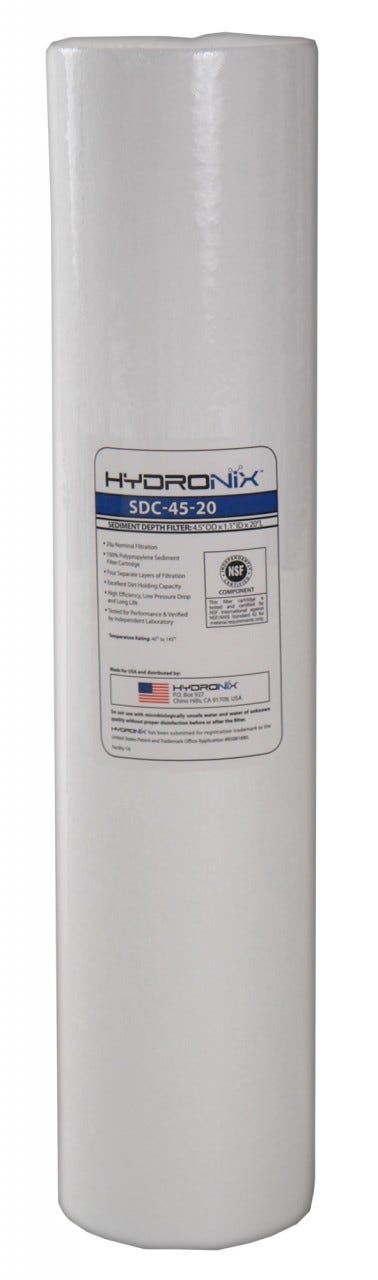

Hydronix 4.5" x 20" Sediment Graded Density Filter Cartridge | SDC-45-2001

SDC SERIES - 4.5" x20" Graded-Density Sediment Depth Filter - SDC-45-2001

• Manufactured from 100% Pure Polypropylene
• Graded density for higher dirt holding capacity
• 1 Micron Nominal Filtration
• Buy in Bulk: 6 per box

HYDRONIX SDC SERIES SEDIMENT DEPTH CARTRIDGES

• These 4.5" x 20" SDC Series Cartridges have true multi-stage depth filtration integrated into their design.
• Utilizing four (4) separate layers of micron filtration, outside-in flow allows the outer layers to trap larger-sized particles, resulting in much lower pressure drop compared to conventional filters.
• Trapping various sized particles layer-by-layer,the SDC Series Cartridges provide a much higher dirt holding capacity than standard spun polypropylene and string wound cartridges.
• Ideal for Point-of-use (POU) and reverse osmosis applications.
• These cartridges can be used ina wide range of applications such as residential, food service, commercial and industrial.

Features & Benefits

• Low Cost
• Designed for Superior Performance
• NSF Standard 42 Component Certified

Specifications

• Diameter - 4.5"
• Length - 20"
• Initial Flow Rate: 1 psi @ 20 GPM
• Micron Rating - 1 micron
• Maximum Operating Temperature: 145°F (63°C)
• Maximum Pressure Drop: 69°F (20°C) 46.4 psi (3.2 kg/cm2)
• Recommended replaceable pressure drop: 21.75 PSI (1.5kg/cm2)
• Operating Temperature: 40 Degrees F to 145 Degrees F

*Call for Quantity Discounts
