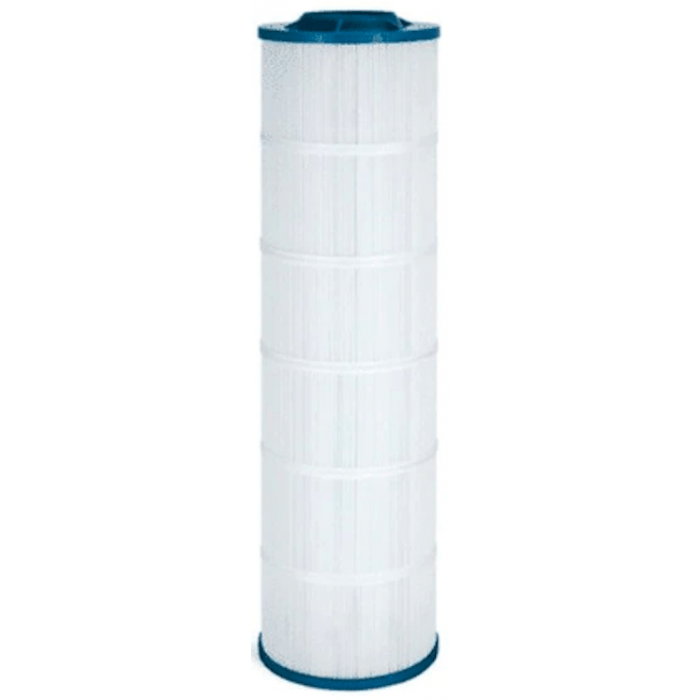

HydroScientific Absolute HSC-170-PPA Jumbo 170 High Flow Pleated All Poly Filter Cartridges
SKU:
644-HSC-170-PPA : 644-HSC-170-1-PPA
The HydroScientifc™ Jumbo HSC-170-PPA Pleated All Poly Filter Cartridges are high flow performance cartridges designed to meet or exceed operational requirements in high flow applications. They are compatible with Harmsco 170 and Watts Flow-Max Jumbo FMHC models. The HydroScientific Jumbo HSC-170-PPA cartridge complies with NSF/ANSI Standard61 Material Safety Requirements.
Subtotal:
$159.95
Free Shipping
Free standard shipping on most products over $199.
One Year Satisfaction Guarantee
Learn More.
The HydroScientific HSC-170-PPA Pleated All-Poly Jumbo Filter Cartridge features synthetic all polypropylene filter media with offers the lowest initial pressure drop and delivers higher flow rates. This also means less frequent cartridge changes. Additionally, the HydroScientifc™ Jumbo HSC-170-PPA Pleated All Poly Filter Cartridges deliver longer filter life, higher dirt-carrying capacity, and increased particle removal.
Features & Benefits of HydroScientific HSC-170-PPA
- All Poly - For the highest purity applications
- No Surfactants or Binders - Manufactured to the highest standards
-
Pleated Media - Pleated media is superior in every way:
- More surface area
- Lower pressure drop
- Increased dirt-holding capacity
- Increased particle removal
- Longer filter change intervals
- Lowest Maintenance Costs - High dirt-carrying capacity mean fewer filter changeouts and lower maintenance costs
- NSF/ANSI Standard 61 Compliant - 100% Surfactant and Binder Free
- Lowest Cost - Filters more gallons than comparable filters meaning a lower cost per gallon filtered
Applications of HydroScientific HSC-170-PPA
- Well Water Applications
- Whole House Filtration
- Desalination Prefiltration
- Residential Applications
- Commercial Applications
- Industrial Applications
- Paper and Pulp Applications
- Paint, Ink and Coating Applications
- Process Water Applications
- Cooling Tower Applications
- Waste Water Applications
- Reverse Osmosis Prefiltration
Materials of Construction of HydroScientific HSC-170-PPA
- Filter Media: Polypropylene
- End Caps: Polypropylene
- Center Tubes: Polypropylene
Engineering Specifications of HydroScientific HSC-170-PPA
- Filter Diameter: 7-3/4"
- Filter length: 30-3/4"
- Square Feet of Media (surface area) - 170 (approx.)
- Maximum Flow Rate - 150 GPM
- Recommended Maximum Flow Rate: 105 GPM
- Real-World maximum Flow Rate: 36 GPM (highest purity)
- Box Dimensions: 9" x 9" x 32"
- Weight: 9.60 lbs
- Maximum Temp: 176°F (80°C)
- Country of Origin: Taiwan
Meets or Exceeds Compatibility with Harmsco Model HC-PP-170 Series and Flow-Max FMHC-170 Series
FDA/USP Material Safety Compliance - All Materials comply with FDA requirements for food and beverage contact per CFR Title 21 174.5, 177.1520 and 177.1630. All Components meet USP Class VI PlasticsYou May Also Need
