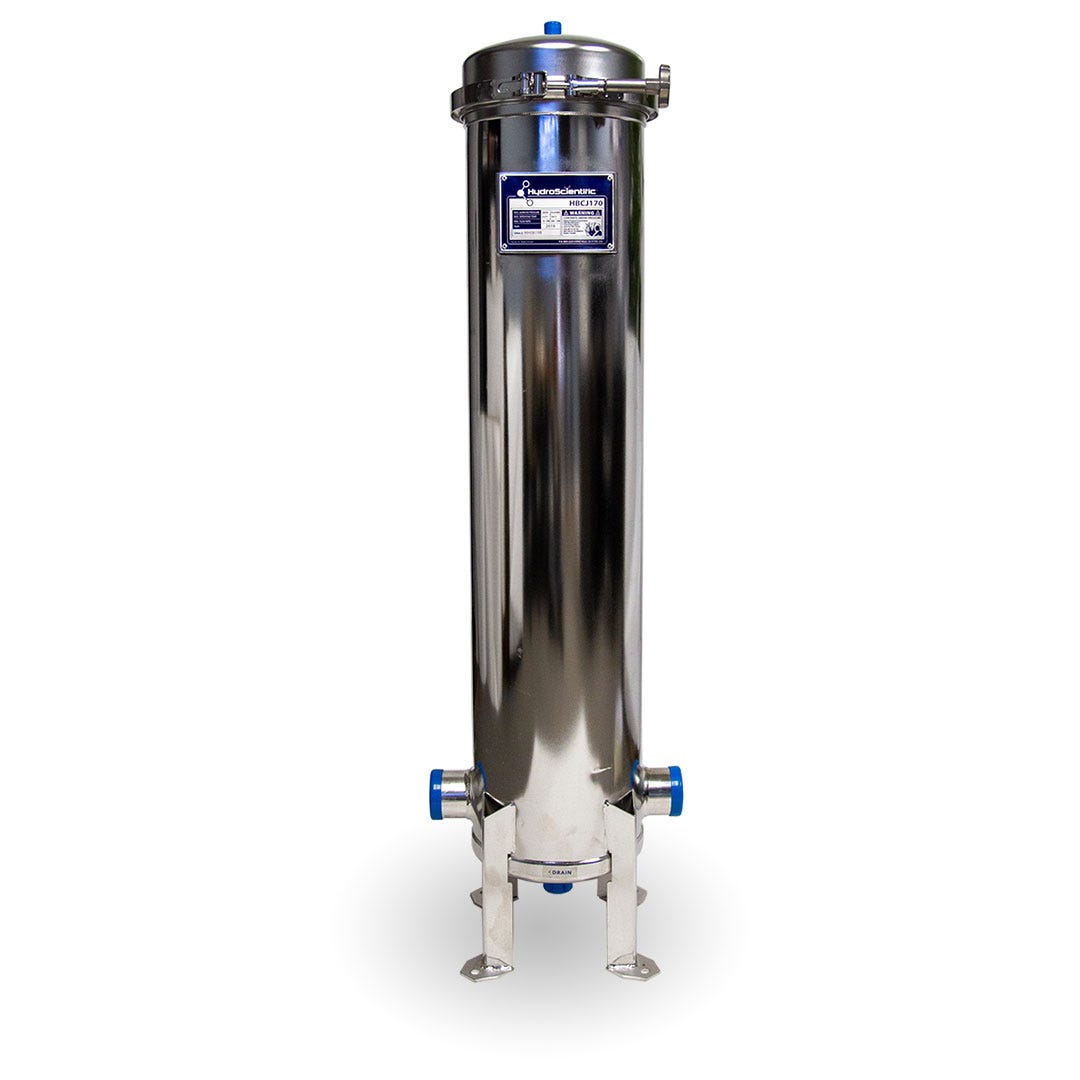

HydroScientific Jumbo 170 Single Cartridge Band Clamp Stainless Steel Housing

HydroScientific Jumbo 170 Single Cartridge Band Clamp Stainless Steel Housing

List Price: Factory Direct Price: SALE PRICE:
$3058.09 $2038.73
$1,834.85
$1,834.85
40% OFF FACTORY DIRECT SAVINGS

Year-End Sale Ends:

SKU: 644-HBCJ170
The Jumbo 170 Band Clamp Stainless Steel Filter Housing is designed for commercial filtration applications where the maximum flow rate is 150 gpm.
Subtotal: $1,834.85

Free Shipping

Free standard shipping on most products over $199.

One Year Satisfaction Guarantee

Learn More.
HydroScientific Jumbo 170 Single Cartridge Band Clamp Stainless Steel Housing

HydroScientific Jumbo 170 Single Cartridge Band Clamp Stainless Steel Housing

$2,293.56 $1,834.85
HydroScientific Jumbo 170 Single Cartridge Band Clamp Stainless Steel Housing

HydroScientific Jumbo 170 Single Cartridge Band Clamp Stainless Steel Housing

$2,293.56 $1,834.85
Product Overview
HydroScientific Logo

COMMERCIAL JUMBO 170 STAINLESS STEEL WATER FILTRATION HOUSING

The Jumbo 170 Band Clamp Stainless Steel Filter Housing is designed for commercial filtration applications where the maximum flow rate is 150 gpm, however, remember that filters are rated at their peak flow rate when the filter is new. As it plugs with sediment, sand, silt, or solids, the flow will diminish. It is a great idea to have gauges on both the inlet and outlet of the filter, so that when the pressure drop between the inlet and outlet exceeds 15 psi, you know it is time to change the filter. Unlike other commercial filters that use “clusters” of filters, the Jumbo 170 uses one large format pleated filter for ease of changeout. The Jumbo 170 cartridges (must be ordered separately) are Pleated 100% Polyester material designed to exceed high flow application requirements. In many cases the cartridges can be cleaned and re-used.

HydroScientific Jumbo 170 Single Cartridge Band Clamp Stainless Steel Housing
Applications Graphic for Reverse Osmosis Prefiltration, Desalination Prefiltration, Whole House Filtration, Cooling Tower Filtration, Well Water Filtration, Industrial Waste Water Filtration, and Any Commercial or Industrial Application
HydroScientific Jumbo 170 Single Cartridge Band Clamp Stainless Steel Housing

FEATURES & BENEFITS

  • Electroplated Stainless Steel Clean, flat polished surface
  • Band Clamp Design Fast, easy, and safe operation
  • Stainless Steel Standpipe Will not break – extreme durability
  • Pleated Design Cartridges High dirt-holding capacity and increased particle removal which means fewer changeouts
  • Surfactant & Binder-Free Nothing is added to the water supply
  • Built-in Seal No seals to fumble with
  • FDA/USP Material Compliant For your safety and peace of mind
  • NSF/ANSI Standard 61 Compliant For Material Safety

Available in a Wide Variety of Micron Ratings

  • 0.2 Micron All Poly Absolute
  • 0.35 Micron All-Poly Absolute
  • 0.45 Micron All Poly Absolute
  • 1 Micron All Poly Absolute
  • 1 Micron Synthetic
  • 5 Micron Synthetic
  • 10 Micron Synthetic
  • 20 Micron Synthetic
  • 50 Micron Synthetic
  • 100 Micron Synthetic
  • 150 Micron Synthetic
White Pleated Inner Jumbo Filter
HydroScientific Jumbo 170 Single Cartridge Band Clamp Stainless Steel Housing Drain

Engineering Specifications

  • Housing Materials – 304 Stainless Steel (316 Optional)
  • Closure – Stainless Steel
  • O-Ring – EPDM (FDA Grade)
  • Square Feet of Media – 170 sq/ft
  • Max Operating Pressure – 150 psi @ 250° (10.3 bar @121° C)
  • Max Operating Temp - 140° F (60° C) Cartridge - 250°F 121° C for Housing
  • Cartridge Filter Media - Pleated Polyester
  • End Caps – Plastisol
  • Filter Media (Absolute) – Polypropylene
  • End Caps (Absolute) – Polypropylene
  • Center Tubes (Absolute) – Polypropylene
  • Pressure Drop (Initial) – 1 psi @30 gpm
  • Vents – ¼” & ½” NPT
  • Drain – ½” & 1” NPT
  • Inlet/Outlet – 2” NPT

Specifications

Part Number Description
644-HBCJ170 HydroScientific Band Clamp Jumbo 170 Stainless Steel Filter Housing
Ports (In/Out) Drains Vents Max Flow Rate
2" FNPT 1" FNPT 1/4" FNPT 150 GPM
Literature | Manual Product Overview
HBCJ Spec Sheet
HBCJ Spec Sheet
Videos Literature | Manual
