Matrixx-Hybrid Filter and Smart Water Softener

List Price: Factory Direct Price: SALE PRICE:
$1,666.12
$1,666.12
$1,666.12 FACTORY DIRECT SAVINGS
SKU: 080-MXH : 080-MXH-150-10
The US Water Systems Matrixx-Hybrid Filter and Smart Water Softener features our industry leading Vortech tank technology. This professional-grade tank is split in half for the Matrix-Hybrid; the top of the tank features a proprietary carbon blend designed to remove chlorine and chloramine, while the bottom of the tank contains our highest grade resin. Includes a free bottle of ResKleen - which is a specially formulated resin clearer designed to get rid of contaminants that salt leaves behind.
Subtotal: $1,666.12

Free Shipping

Free standard shipping on most products over $199.

One Year Satisfaction Guarantee

Learn More.
Matrixx-Hybrid Filter and Smart Water Softener

Matrixx-Hybrid Filter and Smart Water Softener

$3,658.34 $1,666.12

Matrixx-Hybrid Filter and Smart Water Softener

$3,658.34 $1,666.12
Flow Rate: 10 GPM
Filter Options: None
Hybrid Matrixx Logo

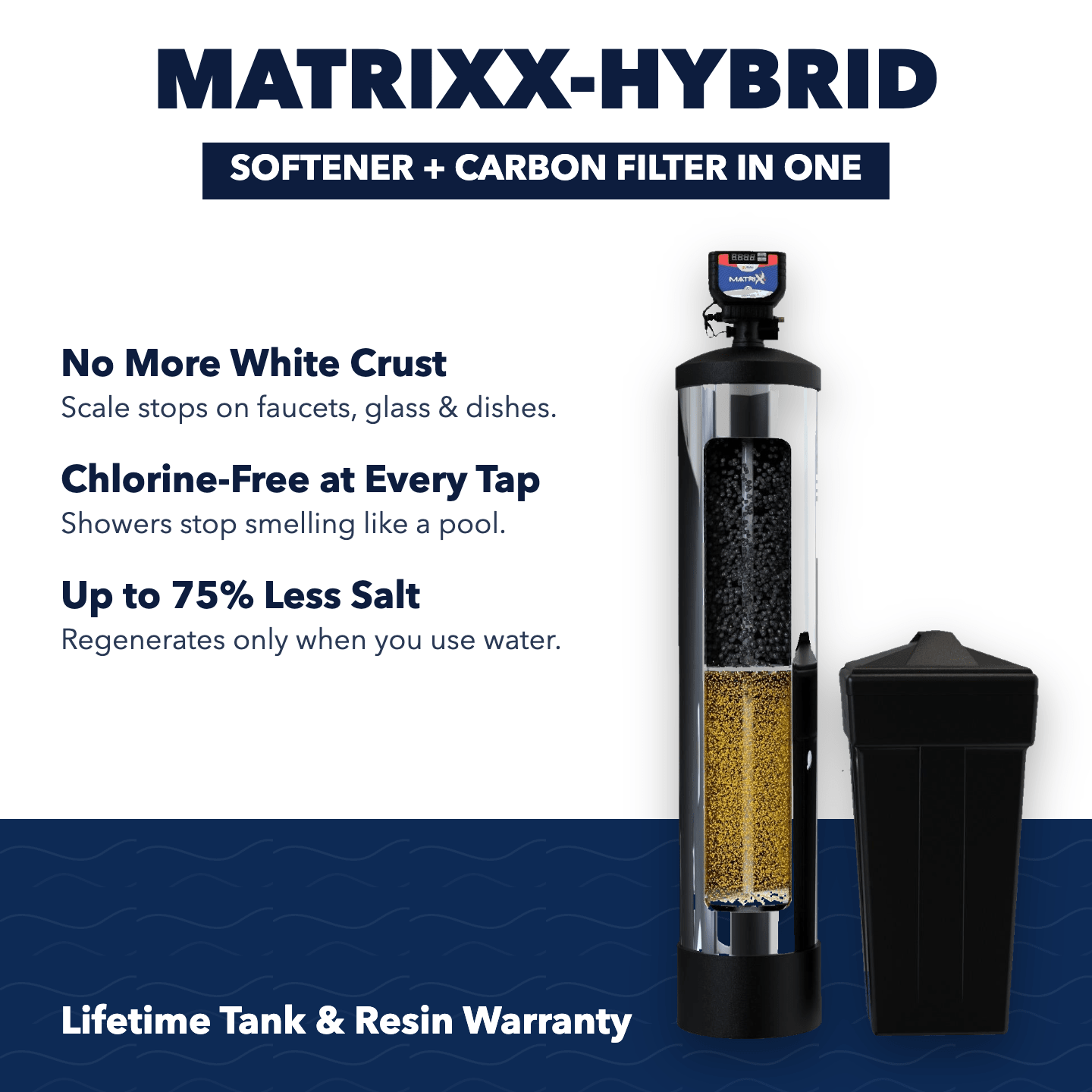

The US Water Systems Matrixx-Hybrid Filter and Smart Water Softener features our industry leading Vortech tank technology. This professional-grade tank is split in half for the Matrix-Hybrid; the top of the tank features a proprietary carbon blend designed to remove chlorine and chloramine, while the bottom of the tank contains our highest grade resin. This allows the system to provide soft, chlorine- and chloramine-free water to your whole house.

Mom and Daughter playing and doing the laundry

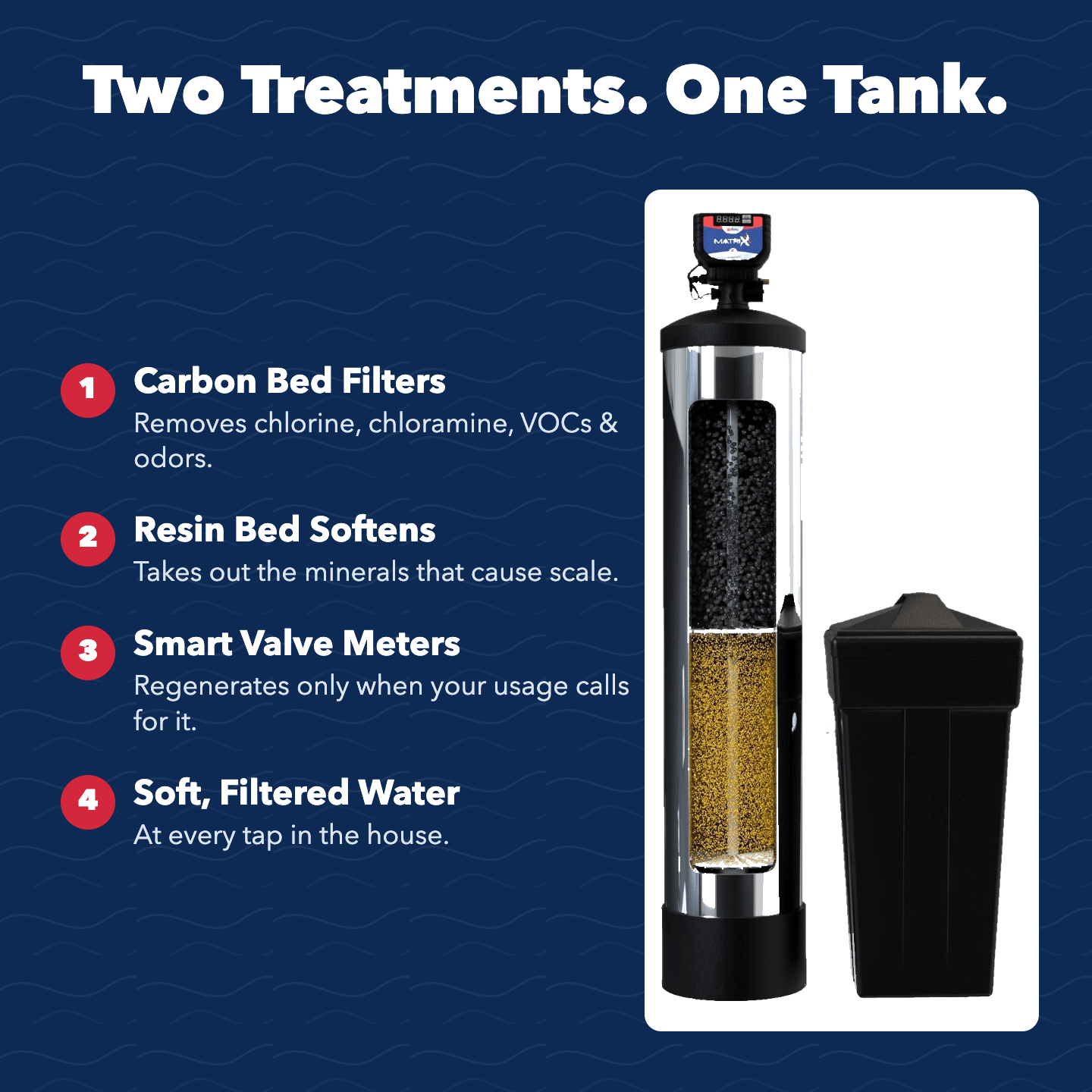

Vortech Cutaway Diagram
Family, Mom, Dad and Daughter Dancing for Joy

Key Features

  • Special Blend Of Carbon - Coconut Shell GAC and Catalytic GAC removes chlorine, chloramine, chemicals, pesticides, VOC's and tastes and odors
  • Electronic Meter Control - Automatically adjusts to any changes in water usage to save salt and keep you from running out of soft water
  • Full Flow & High Pressure - 1" valve which flows up to 25 GPM
  • Trouble-Free - Just one internal moving part in the water stream makes service non-existent
  • Flood Prevention - 9 volt battery backup keeps time and prevents softener from running water down the drain in the event of a power outage
  • Soft Water Brine Refill - Eliminates plugged injectors
  • No Wasted Salt - Regenerates only when needed
  • Lifetime Resin - Premium 10%-Crosslinked Ion-Exchange Resin
  • Best Warranty - Lifetime Warranty on tanks and resin- 10 years on the valve, electronics, and all other parts

SMART VALVES

Stay Connected to Your Water

Our smart valve system integrates directly with your smartphone via Bluetooth 5.0. Simply download the free Legacy View companion app, pair the devices, and you'll have access to a real-time dashboard and settings.

The application allows you to adjust the hardness of your water to your desired specifications and track and monitor all water usage.


Bluetooth Icon

Communicates with your
Smartphone via Bluetooth


Timer Icon

Simply set the time of day, time of
regeneration, and backwash
frequency



Touch Screen Icon

Fully programmable cycles

Legacy View companion app Legacy View Traxx Pro
Google Play StoreIOS App Store

Benefits Of Chlorine Removal

The link between chlorine and bladder and rectal cancers has been known for some time, but only recently have researchers found a link between common chlorine disinfectant and breast cancer, which affects 1 out of every 8 American women. A study conducted in Hartford, Connecticut, recently found that women with breast cancer have 50-60 percent higher levels of organochlorines (chlorine by-products) in their breast tissue than cancer-free women.

Buy A Filter Or Be A Filter

System Benefits

  • Saves Up To 75% On Salt - Solid-state control has no gears, dials, or moving parts in the water stream
  • Best Value - Many companies across the country sell a similar softener for $2,995 to $4,995
  • Fully Programmable - Saves up to 40% on waste water
  • Low Energy Cost - 12 Volt system uses less than $2.00 of electricity a year
Hand Holding Money Symbol Icon

Add An Optional Pre-filter - Save $100

We believe in engineering effective solutions for all of your water issues. That's why we recommend a Magna 5-Micro Pre-filter for every Matrixx Water Softener. This is the only filter on that market that uses patented Posi-Seal technology to ensure 100% filtration with zero bypass. Prefilters are the best insurance for prolonging the life of both your water softener and household appliances. Best of all, it's 100% Made in the USA!

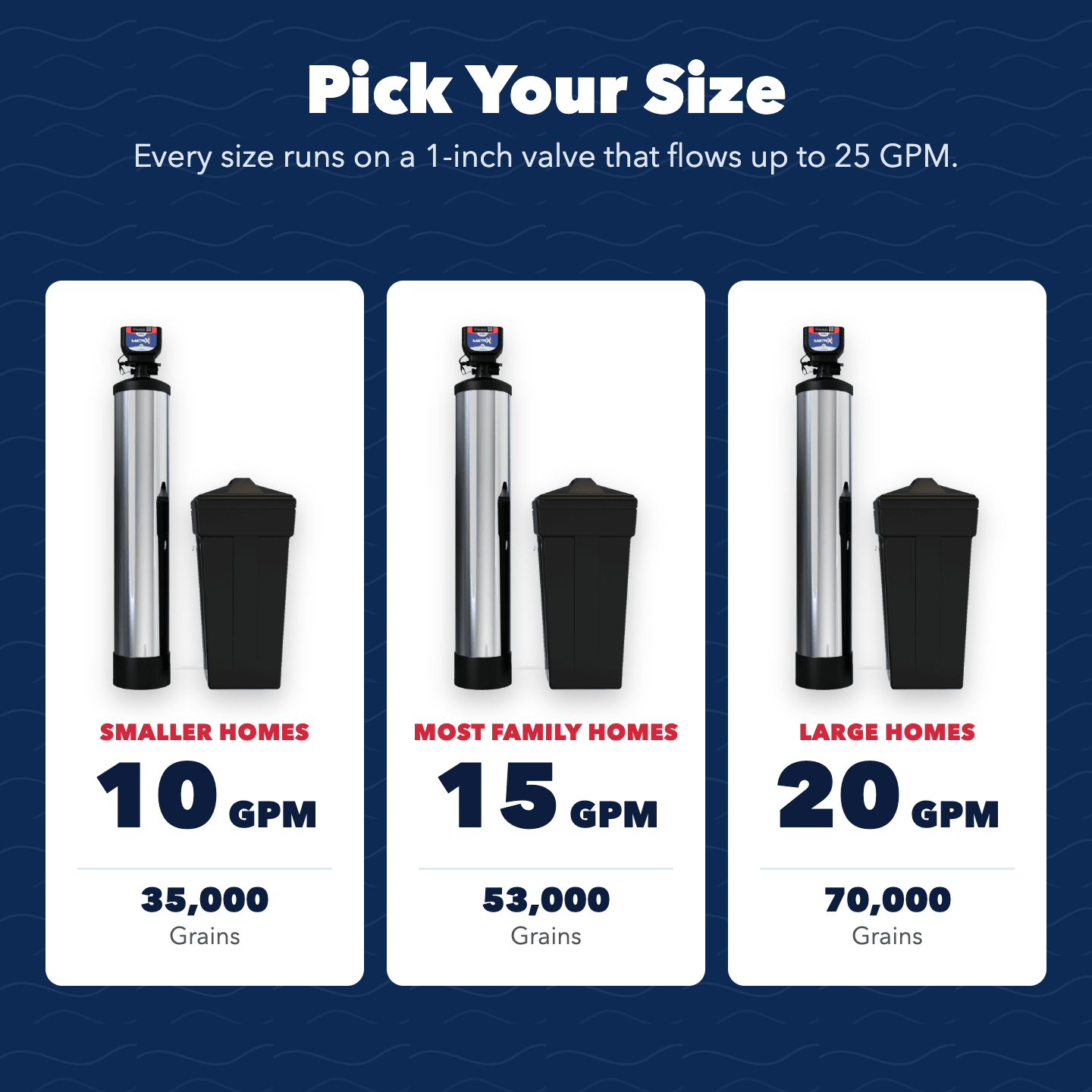

MXH-150 MXH-250 MXH-300
Tank Size 10" X 54" 13" x 54" 13" x 65"
Capacity (cu/ft) 1.0 resin / 0.5 carbon 1.5 resin / 1.0 carbon 2.0 resin / 1.0 carbon
Maximum Capacity * 35,000 Grains 53,000 Grains 70,000 Grains
High Efficiency Settings **
Capacity 15,000 Grains 22,500 Grains 30,000 Grains
Salt Setting 3 lbs 4.5 lbs 6 lbs
Water Usage 51 Gallons 78 Gallons 98 Gallons
Backwash 2 Minutes 3 Minutes 4 Minutes
Brine/Rinse 40 Minutes 40 Minutes 50 Minutes
Fast Rise 4 Minutes 5 Minutes 6 Minutes
Brine Refill 3 Minutes 5 Minutes 6 Minutes
Optimal Settings
Capacity 24,000 Grains 36,000 Grains 48,000 Grains
Salt Setting 6 lbs 9 lbs 12 lbs
Water Usage 107 Gallons 166 Gallons 174 Gallons
Backwash 8 Minutes 10 Minutes 10 Minutes
Brine/Rinse 50 Minutes 60 Minutes 60 Minutes
Fast Rise 8 Minutes 9 Minutes 10 Minutes
Brine Refill 4 Minutes 6 Minutes 8 Minutes
Maximum Settings
Capacity 32,000 Grains 48,000 Grains 64,000 Grains
Salt Setting 15 lbs 23 lbs 30 lbs
Water Usage 115 Gallons 176 Gallons 190 Gallons
Backwash 8 Minutes 10 Minutes 10 Minutes
Brine/Rinse 60 Minutes 70 Minutes 80 Minutes
Fast Rise 8 Minutes 9 Minutes 10 Minutes
Brine Refill 10 Minutes 16 Minutes 20 Minutes
Backwash Flow 5.0 gpm 7.0 gpm 7.0 gpm
Brine Flow 0.5 gpm
Service Flow Rate 10 gpm 15 gpm 20 gpm
Peak Flow Rate 12 gpm 17 gpm 22 gpm
Pressure Drop @ Service Flow 5-7 PSI
Pressure Drop @ Peak Flow 15-20 PSI
Water Pressure Min. 20 - Max. 100 PSI
Water Temperature Min 39° - Max. 100° Fahrenheit
Plumbing Connections 3/4" or 1" MNPT
Electrical Requirements Input 100-240V, 50/60 Hz, 0.3A - Output 12V 500mA
Brine Tank Size 14" x 14" x 36" 14" x 14" x 36" 14" x 14" x 36"
Salt Storage Capacity 220 lbs 220 lbs 220 lbs

Quality Craftsmanship - Guaranteed

Chrome Tank
Smart Valve
Brine Tank
Prefilter

Optional Prefilter

Manual

ADDITIONAL INFORMATION

Warranty Tanks: Lifetime Valve & Electronics: 10 Years (Includes Internal Parts) Resin: Lifetime
Resin Type 10% Crosslinked
Manufacturer US Water Systems
