Water filtration systems

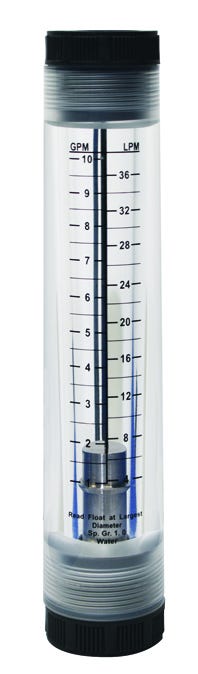

The US Water Systems Inc METER, FLOW, IL, 1-10 GPM (204246) features a clear acrylic body, black end caps, 1" MNPT connections, GPM/LPM scale, and a stainless steel float indicator.
The US Water Systems Inc METER, FLOW, IL, 1-10 GPM (204246) features a clear acrylic body, black end caps, 1" MNPT connections, GPM/LPM scale, and a stainless steel float indicator.

METER, FLOW, IL, 1-10 GPM, 1" MNPT x 1" MNPT | 204246

List Price: Factory Direct Price: SALE PRICE:
$173.25 $115.5
$103.95
$103.95
40% OFF FACTORY DIRECT SAVINGS

Flash Sale Ends:

SKU: 222-204246
AXEON Inline Flow Meters have an easy-to-read scale which has been silk screened onto an acrylic body. These flow meters offer durability, accuracy and high quality. Range of 1-10 GPM.
Subtotal: $103.95

Free Shipping

Free standard shipping on most products over $199.

One Year Satisfaction Guarantee

Learn More.
The US Water Systems Inc METER, FLOW, IL, 1-10 GPM (204246) features a clear acrylic body, black end caps, 1" MNPT connections, GPM/LPM scale, and a stainless steel float indicator.

METER, FLOW, IL, 1-10 GPM, 1" MNPT x 1" MNPT | 204246

$173.25 $103.95
The US Water Systems Inc METER, FLOW, IL, 1-10 GPM (204246) features a clear acrylic body, black end caps, 1" MNPT connections, GPM/LPM scale, and a stainless steel float indicator.

METER, FLOW, IL, 1-10 GPM, 1" MNPT x 1" MNPT | 204246

$173.25 $103.95
Product Overview

AXEON Inline Flow Meters have an easy-to-read scale which has been silk screened onto an acrylic body. These flow meters offer durability, accuracy and high quality.

Features

  • Solid One Piece Injection Molded Acrylic Body
  • Stainless Steel Float and Internals
  • Permanent Screen Printed Scales
  • Calibrations in GPM and LPM
  • Individually Packaged
  • 100% Tested for Accuracy

Range (gpm / lpm) - 1 - 10 /3.79 - 37.86

Connection - 1" x 1" MNPT

Body Style - Round

Literature | Manual Product Overview
AXEON Inline Flow Meters Spec Sheet AXEON Inline Flow Meters Spec Sheet
Videos Literature | Manual

Overall rating: 0.0 / 5 from 0 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Q&A

will this flow meter work with ethanol.? I need a flow meter on a geothermal system.
I would not recommend this particular inline meter for ethanol. Here’s why: The AXEON 204246 inline flow meter you linked uses an acrylic (PMMA) body (with polypropylene end connections and silicone O-rings, plus a stainless float). Acrylic/PMMA is commonly rated poorly with alcohols (including ethanol)—it can swell/craze/stress-crack, especially under pressure + time + temperature cycling (which is exactly what a geothermal loop does).
