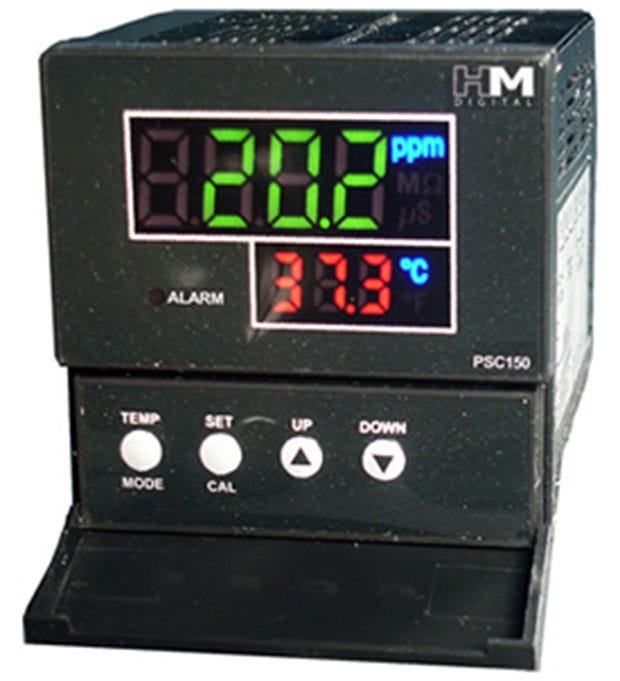

PSC-150 HM Digital Panel Mount Extended Range EC & TDS Controller

New controller includes extended range, digital calibration, on-screen temperature and tri-color display.

Features

• Monitors and controls TDS levels for high output commercial systems.
• Large, bright L.E.D. display.
• An alarm will sound if the TDS level rises above the user-set level.
• On-screen temperature display (C/F).
• Installs easily in minutes.
• Includes one sensor probe.
• Protective cover also available (sold separately)

Specifications

• EC Range: 0-9999 µS
• TDS Range: 0 - 5000 ppm
• Temperature Range: 1-75°C; 33-167°F
• Accuracy: ±2%
• Conversion Factor: NaCl (avg. 0.5)
• Resolution: 0.1 µS/ppm (0-999); 1 µS/ppm (1000-9999)
• ATC: Yes (1 - 65°C)
• Calibration: Adjustable (manual)
• Setting: Controlled by on-screen up/down buttons
• Relay Control: The unit will open or close a circuit via dry contacts when the ppm/µS level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device.
• Relay Voltage: 5V
• Alarm: Optional steady beep (set by user)
• Display: Bright 5/8" L.E.D. display
• Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable
• Power supply: AC 110V / AC 220V
• Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4 in.)
• Monitor Weight: 476 g (1 lb .8 oz)
• Total Weight: 680.4 g (1 lb 8 oz)
