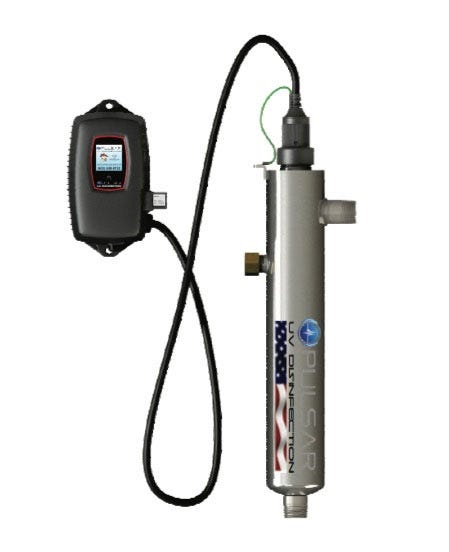

The Pulsar Mini UV System 3 GPM by US Water Systems Inc is an eco-friendly unit featuring a cylindrical metal body with an energy-efficient digital control panel connected via a cable.

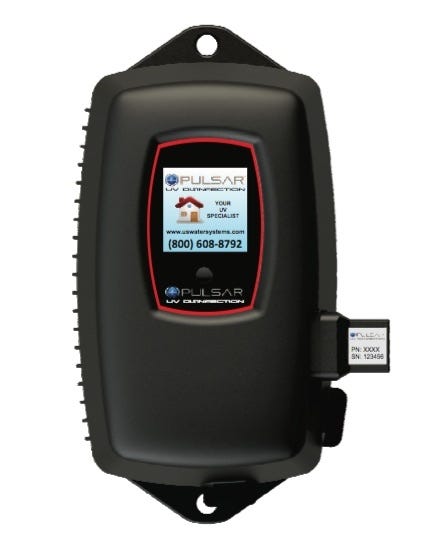

A black rectangular Pulsar Mini UV System 3 GPM by US Water Systems Inc displays contact info and phone number on its small screen. This eco-friendly, energy-efficient device has a connector on the right side.

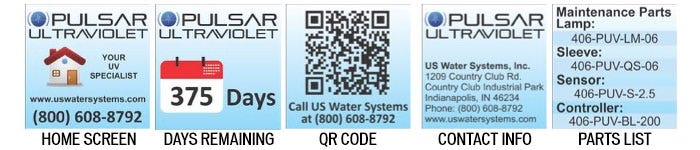

The Pulsar Mini UV System 3 GPM label includes a home screen, 375 days left, QR code, contact info for US Water Systems Inc with phone number, and parts list like an eco-friendly lamp, sleeve, sensor, and controller for energy-efficient UV water disinfection.

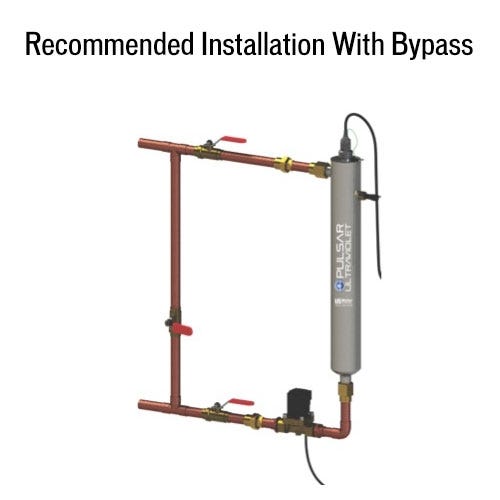

Plumbing installation diagram with an eco-friendly bypass system includes copper pipes, Pulsar Mini UV System 3 GPM from US Water Systems Inc, valves, connectors, and UV water disinfection integration.

Pulsar Mini UV System 3 GPM

List Price: Factory Direct Price: SALE PRICE:
$827.24 $551.49
$496.34
$496.34
40% OFF FACTORY DIRECT SAVINGS
SKU: 405-PUV-200-03
Durable, compact, and sleek the Pulsar Mini UV System is a professional grade system designed to disinfect water at its point of use.  This system features a stainless steel body, is eco-friendly, carbon-neutral, and energy-efficient. The Pulsar Mini is the perfect system for under sink and RV applications.
Subtotal: $496.34

Free Shipping

Free standard shipping on most products over $199.

One Year Satisfaction Guarantee

Learn More.
The Pulsar Mini UV System 3 GPM by US Water Systems Inc is an eco-friendly unit featuring a cylindrical metal body with an energy-efficient digital control panel connected via a cable.

Pulsar Mini UV System 3 GPM

$903.34 $496.34

Pulsar Mini UV System 3 GPM

$903.34 $496.34
Pulsar Ultraviolet Logo

Durable, compact, and sleek the Pulsar Mini UV System is a professional grade system designed to disinfect water at its point of use. This system features a stainless steel body, is eco-friendly, carbon-neutral, and energy-efficient. The Pulsar Mini is the perfect system for under sink and RV applications

Benefits

  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, as well as harmful bacterium like E.Coli and viruses not visible to the naked eye
  • The lamps are specially engineered and thoroughly tested to provide consistent and reliable ultraviolet output over the entire life of the lamp (9000 hours) to ensure continuous purification
  • The system is easy to install, maintain, and service

Ditch the Chemicals - Make the move to UV-C today!

Woman washing dishes in RV with freshly filtered water
The image displays the eco-friendly Pulsar Mini UV System 3 GPM by US Water Systems Inc, featuring a cylindrical reactor with labeled parts: gland nut connection, UV sensor connector, energy-efficient controller with display, and 1/2 inlet/outlet. Dimensions are included.
The Pulsar Mini UV System 3 GPM by US Water Systems Inc is a black electronic controller with a full-color LCD. Its energy-efficient, measuring 6.8 H x 3.5 W, and displays detailed system performance info, including UV water disinfection status.
A woman washes her hands under a faucet. Text reads, Pulsar Mini UV System 3 GPM by US Water Systems Inc: Ideal for under-sink use and eco-friendly.

Key Features

• Specially designed and tested lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9000 hours) to ensure continuous purification

• The system is easy to install, maintain, and service

• The ultraviolet lamp can be changed without interrupting the water flow

• Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation

• The power supply visually displays the remaining lamp life and will go into alarm if the lamp fails to notify the homeowner

• The power supply has a sealed case to prevent damage from accidental water intrusion and is CSA and CE compliant

• Designed & manufactured to ASME pressure vessel standards

• Flow rates stated at 95% UVT at a dose of 30mJ/cm2

• Reliable, industry proven low pressure (LP) coated UV lamps with ceramic bases for durability and a 9000 hour life (1 year)

• Constant current electronic controller (one controller for all systems) in a splash-proof case

• Visual and Audible Lamp Change Reminder Visual and Audible Lamp Out Indicator

• Built-in North America

UV-C How It Works

Dating back to the early 1900s, UV disinfection is energy efficient, carbon neutral, chemical-free, and environmentally friendly. A UV disinfection system bombards the cell walls of organisms with electromagnetic energy in the form of UV-C. The UV-C light inactivates the organism's genetic material and the ability to reproduce. UV disinfection is 20,000 times more energy-efficient than boiling water and costs five times less annually when compared to chlorine disinfection.

A Killer Light!

A diagram of the Pulsar Commercial Ultraviolet Water Treatment System by US Water Systems Inc shows labeled components including the lamp connector, UV lamp, flow rate, chamber, and end cap with bacteria, viruses, and chemicals shown inside the stainless steel reactor.
Specifications PUV-200-03
Recommended Flow Rate 3 GPM
Inlet/Outlet 1/2" MNPT
Electrical 90-265V / 50-60Hz
Plug Type American NEMA 5/15, 3-Prong w/Ground
Power Consumption (Watts) 20 Watts
Reactor Chamber Dimensions 14.3" height X 2.5" diameter
Shipping Weight 8 Pounds
Maximum Operating Pressure 150 PSI (10 bar)
Replacement Lamp 406-PUV-LM-03
Replacement Sleeve 406-PUV-QS-03
Replacement Ballast Controller 406-PUV-BL-200
