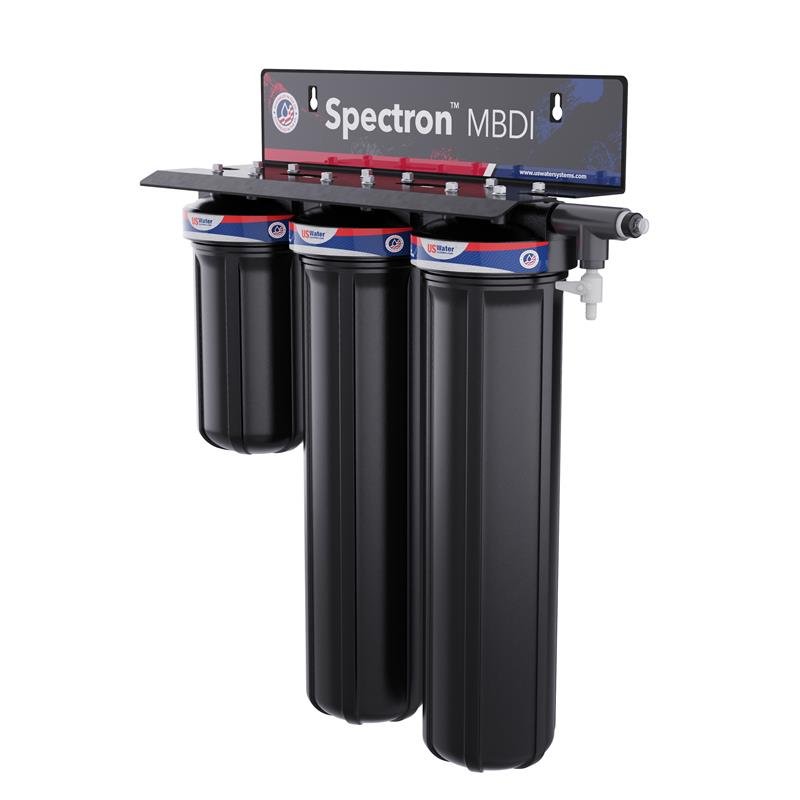

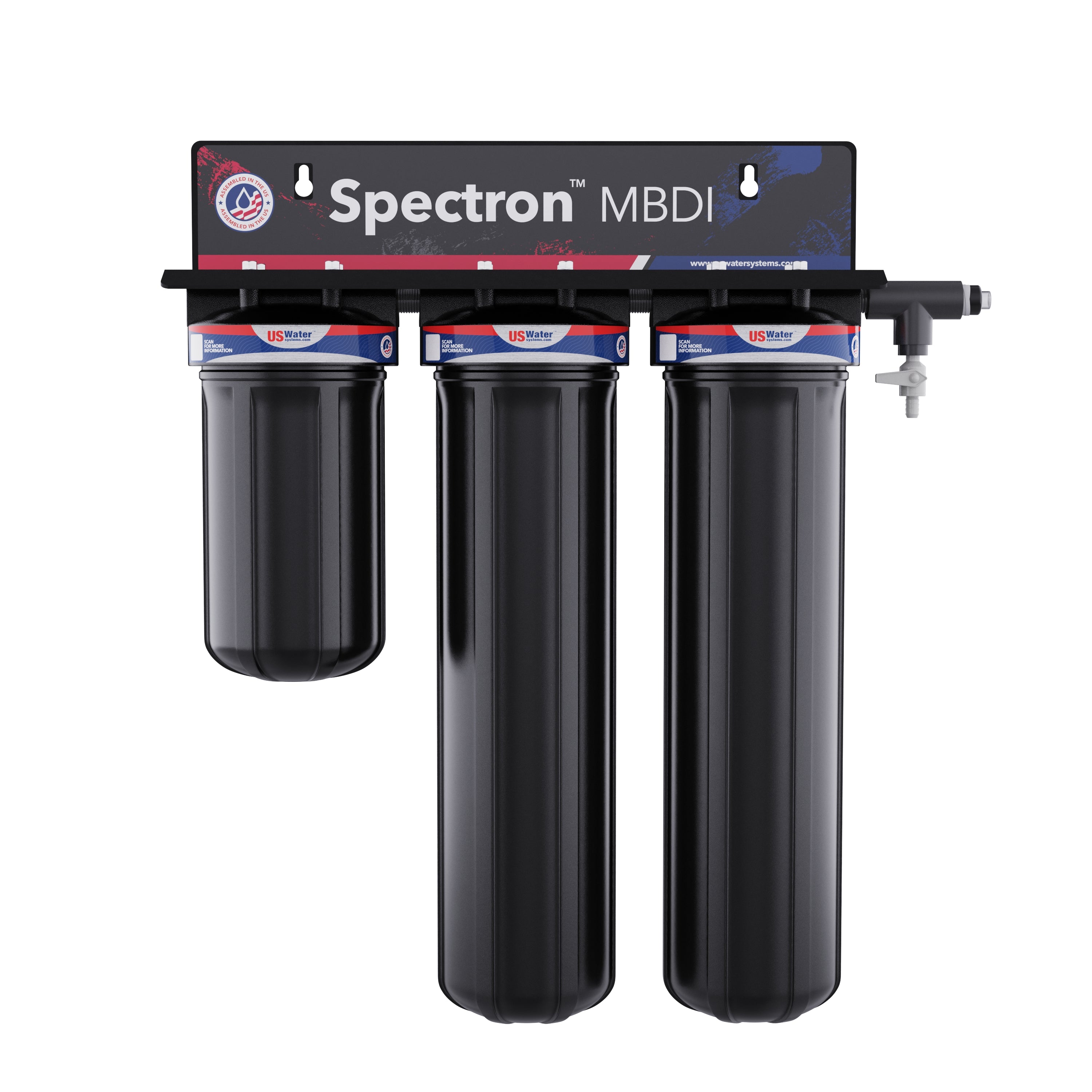

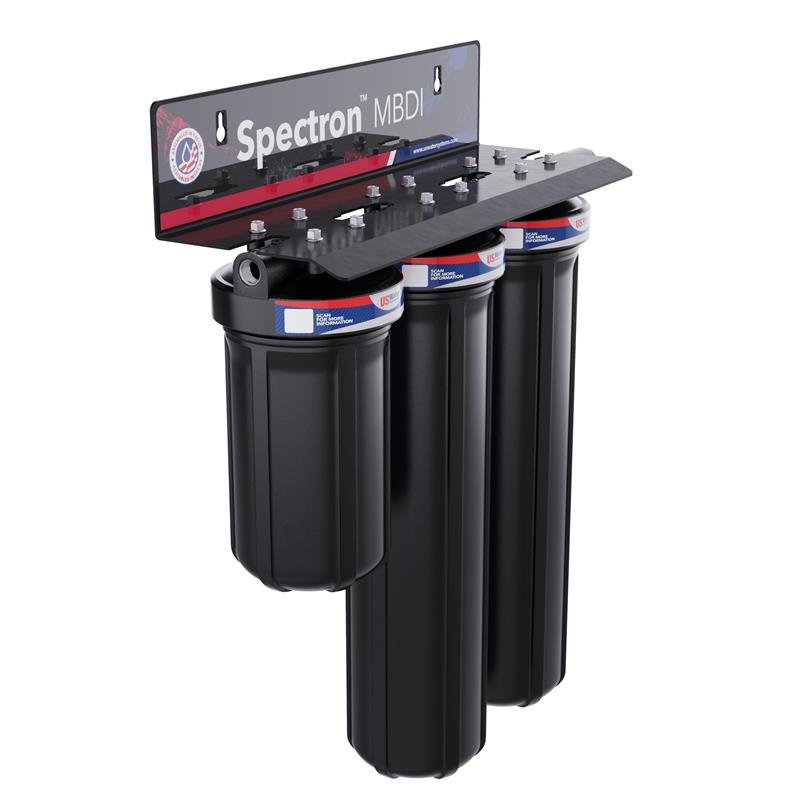

Spectron High Capacity DI System - 5.68 LPM

Advanced Deionization for Light Commercial Applications

The Spectron High Capacity DI System by US Water Systems delivers uncompromising performance in light commercial water treatment, offering premium quality, reliability, and ease of service in a compact footprint.

Engineered for High Purity Water Applications

Whether you're needing DI water for general deionization, battery water filling, humidification, spot-free rinses, glassware washers, or general lab water use, Spectron delivers exceptional ion exchange performance with ultra-low total dissolved solids (TDS) output.

Key Features:

• Made in the USA: Proudly manufactured in America with strict quality control and premium components.
• Double O-Ring Cartridge Seal: Our proprietary dual o-ring design ensures a positive seal, eliminating the risk of untreated water bypass – a common failure point in lower-cost alternatives.
• Stainless Steel Reinforced Housing Threads: Built for durability in demanding environments, our reinforced filter head threads prevent cracking and galling during filter changeouts.
• High Capacity DI Cartridges: Each Spectron system uses 4.5" x 20" oversized DI cartridges, delivering significantly more resin volume than standard 2.5" cartridges. That means higher ion exchange capacity, fewer changeouts, and lower cost of ownership over time.
• Quick-Change Cartridge Design: Intuitive, tool-free serviceability with drop-in-style cartridges that snap securely in place.
• Modular and Expandable Configuration: Easily scalable for changing water demands with flexible inlet/outlet plumbing options.

Typical Applications

• Laboratory DI Water Supply
• Medical Instrument Final Rinse
• Spot-Free Vehicle Rinse
• Electronics Manufacturing
• Glassware Cleaning
• Pharmaceutical Pre-Treatment

Why Spectron?

While other systems may look similar on the surface, only Spectron combines Made-in-USA quality, enhanced sealing technology, and commercial-grade construction in a system that’s built to perform reliably for years to come.

System Specifications

• Cartridge Size: 4.5" x 20"
• Pretreatment Cartridge Size: 4.5" x 10"
• Max Operating Pressure: 90 PSI
• Max Operating Temp: 100°F (38°C)
• Inlet/Outlet Ports: 1" FNPT Inlet / 3/8" Hose Barb Outlet
• Housing Material: Reinforced Polypropylene
• Cartridge Seal: Dual O-Ring Posi Seal
• Cartridge Type: Mixed-Bed Deionization Resin
• Pretreatment Cartridge Type: Carbon Block

System Capacities

The capacity of a filter set is dependent on the quality of the water fed to the system. The worse water fed to a system, the less amount of gallons of pure water it will produce. The better the feed water, the more gallons of pure water the filter pack will produce.
