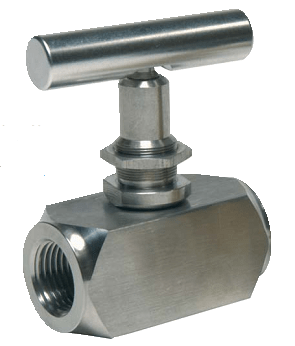

1/4" Stainless Steel Needle Valve

The Stainless Steel Needle Valve offers a panel mountable, two piece design that is available in a globe pattern for flexibility during installation. Its packing provides leak-tight double sealing with low operating torque and the safety back-seating prevents accidental removal of the stem.

Benefits:

  • Leak-tight performance with low operating torque
  • Easy installation and serviceability
  • Use in a wider range of applications
  • Flexibility in installation

Features:

  • 316 Series Stainless Steel
  • Positive Drive Hand Bar
  • High Pressure/Temperature Capability
  • Globe Pattern
  • 100% Tested

Applications:

  • Reverse Osmosis Systems
  • High Temperature service to 250° F
  • Corrosives
  • Test Stands

Technical Data:

  • Maximum Operating Pressure: 1000 PSIG @ 70° F
  • Operating Temperature Range: 32° F to 250° F
  • End Connections: 1/4” FNPT
  • Materials of Construction:
    • Body: 316 SS
    • Stem: 316 SS
    • Stem Tip, Hard Seat: 316 SS
    • Stem Packing: EPDM
    • Bonnet: 316 SS
    • Handle: 316 SS
    • Panel Mounting Nut: 316 SS
  • Panel Mounting:
    • Panel Hole: 0.635"
    • Panel Thickness: 3/16” (4.7mm)
  • Fits R.O. UltraTec, Axeon, Flexeon and Titan RO Systems
