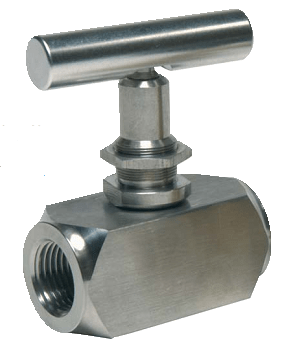

Stainless Steel Needle Valve 201005 3/8"

The Stainless Steel Needle Valve offers a panel mountable, two piece design that is available in a globe pattern for flexibility during installation. Its packing provides leak-tight double sealing with low operating torque and the safety back-seating prevents accidental removal of the stem.

Benefits:

• Leak-tight performance with low operating torque
• Easy installation and serviceability
• Use in a wider range of applications
• Flexibility in installation

Features:

• 316 Series Stainless Steel
• Positive Drive Hand Bar
• High Pressure/Temperature Capability
• Globe Pattern
• 100% Tested

Applications:

• Reverse Osmosis Systems
• High Temperature service to 250° F
• Corrosives
• Test Stands

Technical Data:

• Maximum Operating Pressure: 1000 PSIG @ 70° F
• Operating Temperature Range: 32° F to 250° F
• End Connections: 3/8” FNPT
• Materials of Construction:
• Body: 316 SS
• Stem:316 SS
• Stem Tip, Hard Seat:316 SS
• Stem Packing: EPDM
• Bonnet:316 SS
• Handle:316 SS
• Panel Mounting Nut:316 SS
• Panel Mounting:
• Panel Hole: 0.635"
• Panel Thickness: 3/16” (4.7mm)
• Fits R.O. UltraTec, Axeon, Flexeon and Titan RO Systems
• Axeon Part Number: 201005
