Stenner 170DMP4 Double Head Fixed Output Low Pressure Pump | 170DMP4

List Price: Factory Direct Price: SALE PRICE:
$1088.94 $725.96
$653.36
$653.36
40% OFF FACTORY DIRECT SAVINGS

Cyber Monday Sale Ends:

SKU: 410-170DMP4 : 410-170DMP4-14W

Stenner170DMP4 Double Head Fixed Output Low Pressure Pump

Please note: Due to shipping arrangements, some items may experience delays. For expedited shipping options, we recommend calling in to confirm availability

Subtotal: $653.36

Free Shipping

Free standard shipping on most products over $199.

One Year Satisfaction Guarantee

Learn More.
Stenner 170DMP4 Double Head Fixed Output Low Pressure Pump | 170DMP4

Stenner 170DMP4 Double Head Fixed Output Low Pressure Pump | 170DMP4

$816.70 $653.36

Stenner 170DMP4 Double Head Fixed Output Low Pressure Pump | 170DMP4

$816.70 $653.36
Select Tubing: 1/4" White
Voltage: 120V 60Hz

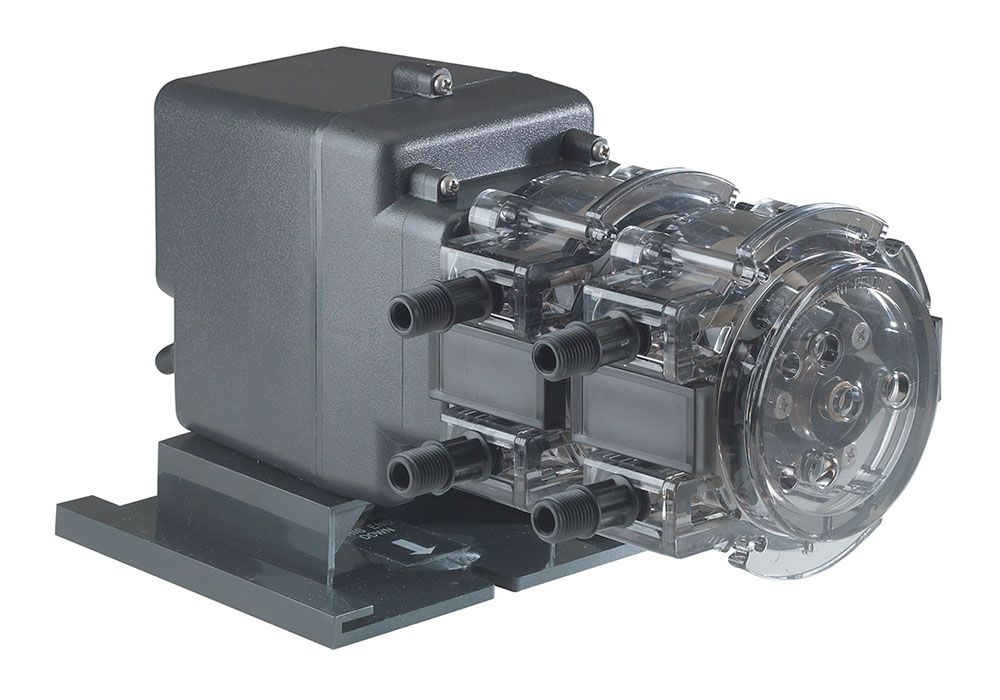

Stenner 170DMP4 double head fixed output pump for low pressure (25psi and below) applications.

Stenner Classic Series metering pumps are self-priming and the 3-point roller assembly provides a positive 2-point seal on the pump tube at all times. This eliminates the need for anti-siphoning valves and diaphragms.

  • Fixed Output (GPD): 120.0
  • RPM: 44
  • Motor HP: 1/30
  • 6' power cord attached
  • Shipping Weight is 9 pounds
  • Dimensions are 10.2" x 6" x 5.3"
  • The Stenner 170DMP4 Pump uses a #4 Tube

Included with every pump:

  • Mounting bracket
  • (2) Spare tubes
  • (2) Injection check valves
  • (2) 20' LDPE polyethylene-NSF/FDA approved suction/discharge tubing (white or black)
  • (2) Weighted suction line strainers
  • (6) Connecting nuts
  • (6) Ferrules
  • Instruction booklet
  • Pump comes standard with 1/4" clear tubing - select above if you need 3/8" or black tubing.

Options:

  • Stenner Pumps can be vertical or horizontal mounted.
  • Stenner Pumps come with 1/4" or 3/8" accessories (Option for 3/8" - 1/4" is standard).
  • Stenner Pumps are available with a Rain Roof, for outdoor vertical mount application.
  • Stenner Pumps are available with black tubing which is UV tolerant (No additional cost, but if it is outside, we suggest black tubing).
  • Stenner Pumps have the following Voltage Options - 120V or 220V @ 60 Hz (Price is the same).

Features:

  • Peristaltic Design - self-priming, can run dry without damage.
  • Chemicals are metered without exposure to air.
  • Pumps gaseous solutions.
  • Accepts a variety of chemicals - refer to chemical compatibility guide.
  • All housings manufactured from Lexan Polycarbonate Plastic.
  • Manufactured in USA since 1957.

Note: Due to the custom nature of all Stenner pumps, they are not returnable. Please make sure you are ordering the correct pump for your application. If you have any questions, please call or email us before purchasing.
