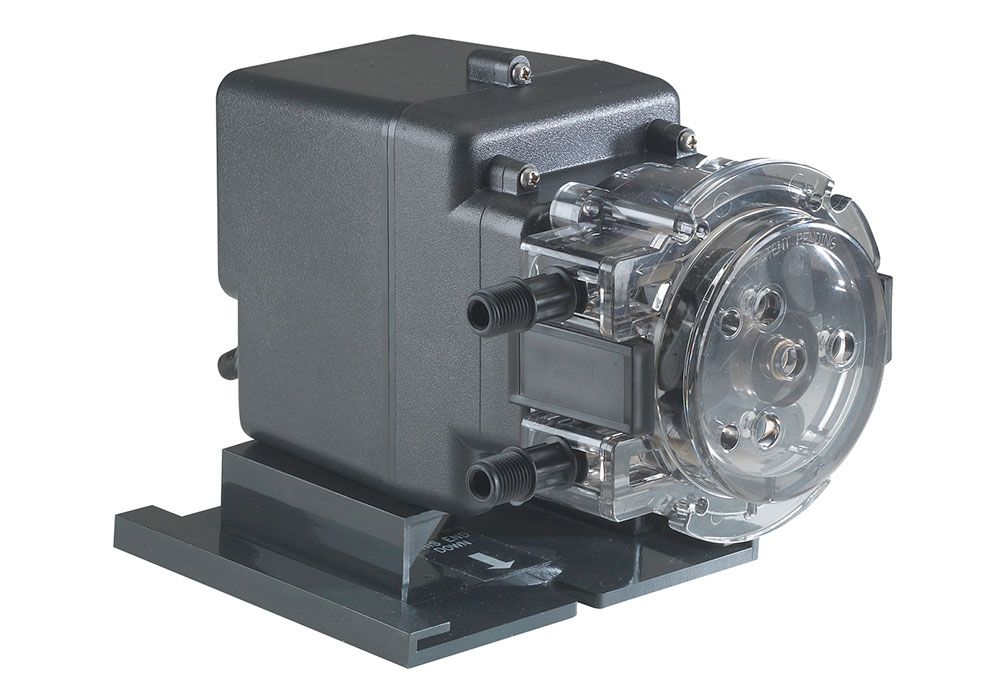

Stenner 45MPHP2 Single Head Fixed Output High Pressure Pump | 45MPHP2

Stenner 45MPHP2 single head fixed output pump for high pressure (up to 100psi) applications.

Stenner Classic Series metering pumps are self-priming and the 3-point roller assembly provides a positive 2-point seal on the pump tube at all times. This eliminates the need for anti-siphoning valves and diaphragms.

• Fixed Output (GPD): 3.0
• RPM: 26
• Motor HP: 1/30
• 6' power cord attached
• Shipping Weight is 8 pounds
• Dimensions are 8" x 6" x 5.3"
• The Stenner 45MPHP2 Pump uses a #1 Tube

Included with every pump:

• Mounting bracket
• Spare tube assembly
• Injection check valve
• 20' LDPE polyethylene-NSF/FDA approved suction/discharge tubing (white or black)
• 1 ceramic (clay) weight
• 3 connecting nuts
• 3 Ferrules
• Instruction booklet
• Pump comes standard with 1/4" clear tubing - select above if you need 3/8" or black tubing

Options:

• Stenner Pumps can be vertical or horizontal mounted
• Stenner Pumps come with with 1/4" or 3/8" accessories (Option for 3/8" - 1/4" is standard)
• Stenner Pumps are available with a Rain Roof, for outdoor vertical mount application
• Stenner Pumps are available with black tubing which is UV tolerant  (No additional cost, but if it is outside, we suggest black tubing)
• Stenner Pumps have the following Voltage Options - 120V or 220V @ 60 Hz (Price is the same)

Features:

• Peristaltic Design - self-priming, can run dry without damage
• Chemicals are metered without exposure to air
• Pumps gaseous solutions
• Accepts a variety of chemicals - refer to chemical compatibility guide
• All housings manufactured from Lexan Polycarbonate Plastic
• Manufactured in USA since 1957

Note:  Due to the custom nature of all Stenner pumps, they are not returnable.  Please make sure you are ordering the correct pump for your application.  If you have any questions, please call or email us before purchasing.
