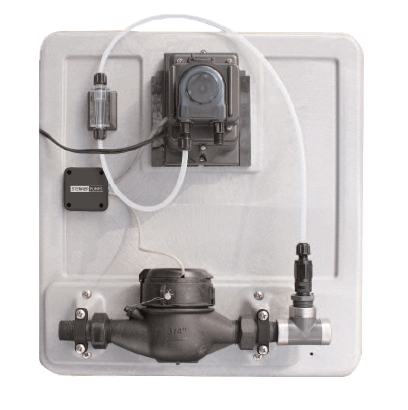

The Stenner Econ FP Proportional Injection System E20PH by US Water Systems Inc is a wall-mounted industrial water flow meter that includes connected piping and integrated electronic components.
The Stenner Econ FP Proportional Injection System E20PH by US Water Systems Inc is a wall-mounted industrial water flow meter that includes connected piping and integrated electronic components.

Stenner Econ FP Proportional Injection System | E20PH

List Price: Factory Direct Price: SALE PRICE:
$1,087.20
$1,087.20
$1,087.20 FACTORY DIRECT SAVINGS
SKU: 410-E20PHS : 410-E20PHS-F81S-71
The system is pre-assembled with the Econ FP pump and water meter mounted on a heavy duty panel for quick and convenient installations.
Subtotal: $1,087.20

Free Shipping

Free standard shipping on most products over $199.

One Year Satisfaction Guarantee

Learn More.
The Stenner Econ FP Proportional Injection System E20PH by US Water Systems Inc is a wall-mounted industrial water flow meter that includes connected piping and integrated electronic components.

Stenner Econ FP Proportional Injection System | E20PH

$1,589.48 $1,087.20
The Stenner Econ FP Proportional Injection System E20PH by US Water Systems Inc is a wall-mounted industrial water flow meter that includes connected piping and integrated electronic components.

Stenner Econ FP Proportional Injection System | E20PH

$1,589.48 $1,087.20
Output Rate: 0.45 - 4.5 GPD
Select Meter System: 3/4" 1 pulse/gallon
Product Overview

The Stenner Econ FP Proportional Injection System logo, associated with US Water Systems Inc, showcases the brand name in white capitals on a blue-gray backdrop, enhanced by design elements echoing the E20PH models efficient proportional injection technology.

made-in-usa

The Stenner Econ FP Meter Proportional Injection System

The system is pre-assembled with the Econ FP pump and water meter mounted on a heavy duty panel for quick and convenient installations.

System Components

Econ FP Pump

  • Maximum output:  4.5, 16, and 30 gpd up to 80 psi
  • Five operating time ranges adjustable from 10-100%, 1, 5, 10, 20, and 60 seconds

Flow Indicator

  • Visual indicator that the pump is pumping chemical

Water Meter

  • 3/4" lead-free plastic water meter
  • 1 gallon/pulse for flow rates up to 5 GPM
  • 2 pulses/gallon for flow rates above 5 GPM

Chart showing outputs for products E20PHF, E20PHG, and E20PHH in gallons/day, psi, liters/day, and bar pressure. Features diverse pump tubes and roller assemblies in a Stenner Econ FP Proportional Injection System by US Water Systems Inc to ensure accurate water meter readings.

System Features

  • Ideal for light duty applications
  • Patented quick release pump head design
  • Solid one piece tube construction
  • UL & cUL listed
  • NSF 61 & 372 listed for USA & Canada
  • 16 lbs
  • 19" l x 18" w x 7" h
  • Voltage:  120V 60 Hz
  • 10' power cord Standard

Note:  Due to the custom nature of all Stenner pumps, they are not returnable.  Please make sure you are ordering the correct pump for your application.  If you have any questions, please call or email us before purchasing.

Literature | Manual Product Overview
Videos Literature | Manual
