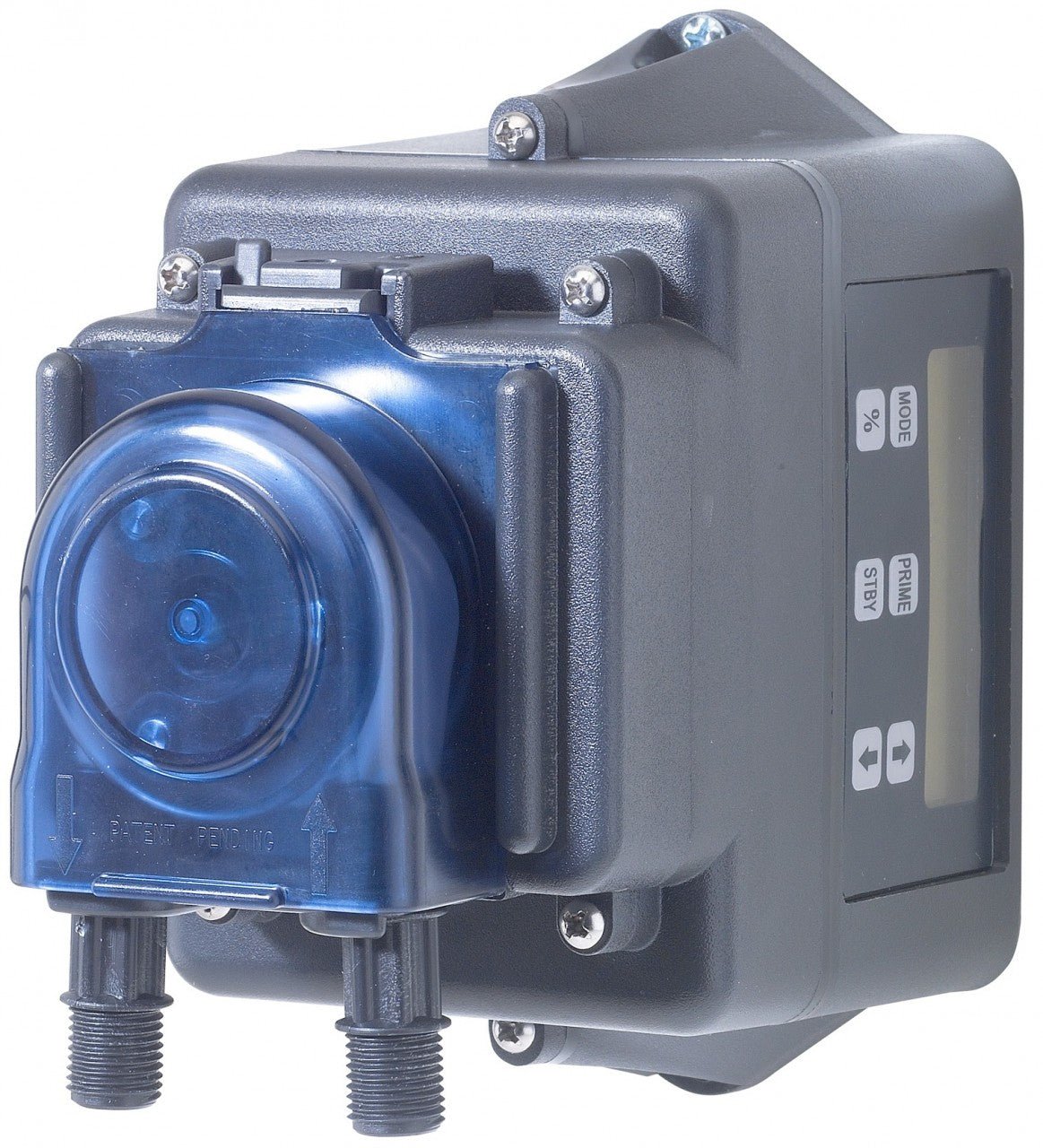

Stenner Econ Integrator Injection Pump - E20RH

ECON INTEGRATOR Water Meter Activated Injection Pump For Water Treatment On Livestock Farms

An additional meter dedicated to chemical feed is not required.
The Integrator is easily installed on a farm with a pulsing dry contact water
meter. The pump injects a fixed amount of chemical per water volume as
determined by the pulse rate of the meter in use.

The Integrator’s built in relay allows an existing meter to tally
water consumption to a controller. The internal relay repeats the signal
from the meter through the pump to the controller. Water consumption from the
meter is uninterrupted any time the pump has power.

The pump is ideal for water line disinfection and pH adjustment.
The Integrator allows the user to fine tune pH and ORP levels using undiluted
chemicals eliminating the inaccuracy and labor of maintaining stock solutions
on a daily basis–set it and forget it.

Advantages over traditional water driven pumps.

• Inject undiluted solutions directly into the water line; unrestricted flow to
the drinker line.
• Pumps are not harmed by scale, solids, disinfectants or acids.
• Easily serviced with effortless tube replacement with the patented quick
release pump head & solid one piece tube construction.

Note: One meter can activate multiple pumps in series,
eliminating the need to purchase additional equipment.

Note: The pump operating times are
digitally adjusted from 0.1 to
60 seconds in 1% increments

Installation Points and Features

• Requires 120V power and a pulsing water meter.
• Small footprint accommodates existing plumbing.
• Standby mode allows pump head service and still enables
meter signal to controller via relay.
• Installer simply wires two Integrator leads to meter, two leads
to controller and installs injection point in pipe.
• Multiple pumps can be wired in series.

Patented Quick Release Pump Head

Select from three models 4.5, 16 and 30 gallons per
day up to 80 psi (17.0, 60.6 and 113.8 liters per day up
to 5.5 bar).

• Compact with enclosed housing
• Solid one piece tube construction; lubrication is not required
• Solution is contained in the pump tube; not in contact with
• moving parts
• Self-priming and does not lose prime from off-gassing solutions
• Brushless motor
• Pump accessories included; wall mountable
• UL & cUL listed
• Pump Dimensions: 5.3. x 3.6 x 5.8 in. (13.5 x 9.2 x 14.7 cm)
• Shipping Weight: 4 lbs (1.8 kg)

Optional Pump Mounting Accessories

The Mounting Kit is for wall mount or to attach to a Stenner tank.
The Stand is for horizontal display or to mount to a wall.

Note:  Due to the custom nature of all Stenner pumps, they are not returnable.  Please make sure you are ordering the correct pump for your application.  If you have any questions, please call or email us before purchasing.
