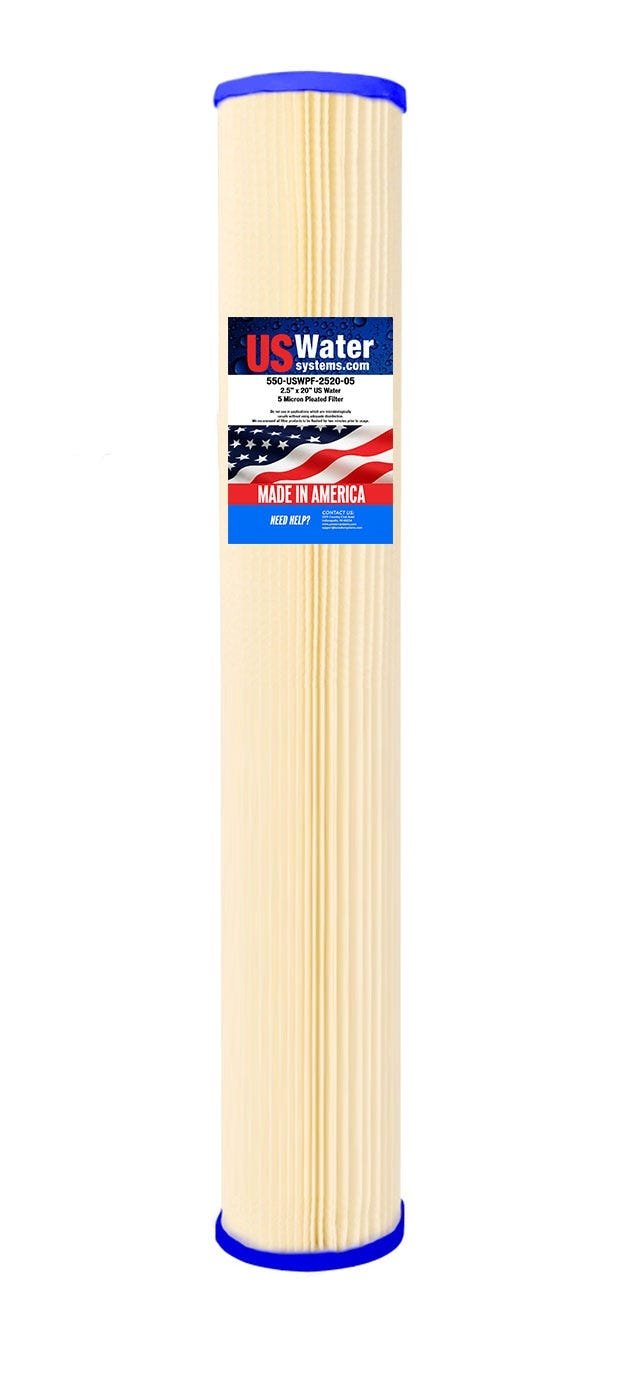

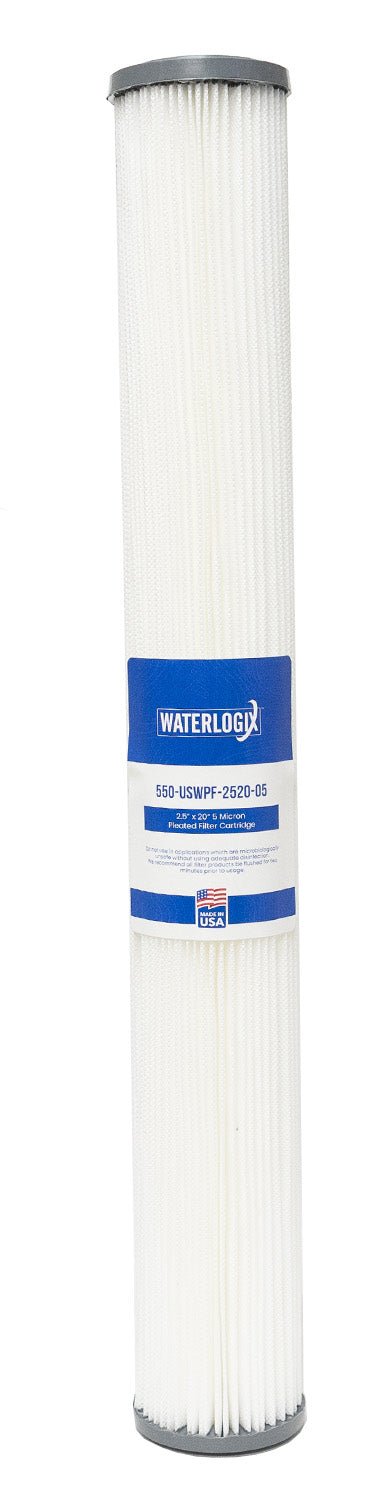

US Water 2.5" x 20" Pleated Filter Cartridge 5 Micron

2.5" x 20" 5 Micron US Water Polypropylene Filter Cartridge

Features

• Pleated design for more surface area
• Bacteria and chemical resistant
• Cleanable and reusable in most applications and micron sizes
• Thermally bonded end caps to ensure better sealing

Benefits

• Lower overall operating cost
• Longer filter runs for fewer change outs
• Lower initial pressure drops
• Reduced maintenance down time and cost
• Increased contaminant removal
• High flow capability

Applications

• Reverse Osmosis Pre-filtration
• Municipal Drinking Water Filtration
• Commercial/Residential Drinking Water Filtration
• Desalination Pre-filtration
• Industrial Water Filtration
• Cooling Tower Filtration
• Chill Water Loop Filtration
• Food & Beverage Filtration
• Marine/Aquatic Filtration

Specifications

• Filter Media : Polypropylene
• Temperature : 40°F-145°F
• Dimensions : 2-1/2" O.D.
• Center tubes : Polypropylene
• pH : 3 to 11
• End Caps : Thermosetting Vinyl Plastisol

Sizing Guide

• Nominal Micron Rating :5
• Recommended Flow Rate (GPM) :10
• Length (in) : 20"
• O.D. (in) : 2.5"
• No./Case : 20

Replaces The Following

• Flowmax FM-5-20
• Harmsco 801-5/20
• Harmsco 801-5/20W
• Harmsco WB-20-5W
• Harmsco WB-20-5
• Harmsco 701-5/20
• Hydronix SPC-25-2005
• Ideal H2O 728870
• Neo-Pure PH-27200-05
• Reverse Osmosis Superstore 294516
• Watts WPC5-20
• Unicel T-0520-05-B

Fits Harmsco, Flowmatic, Ametek, Pentek, and most other standard 2.5" x 20" housings
