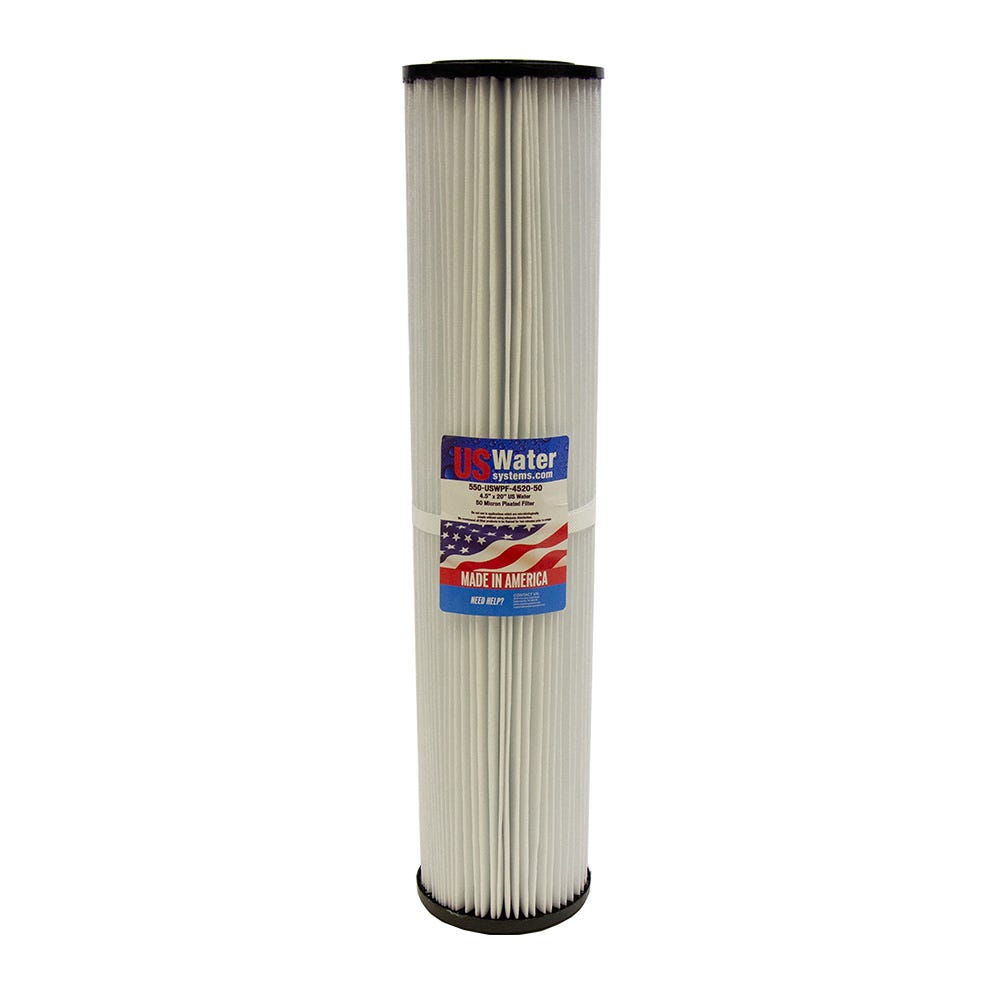

US Water 4.5" x 20" Pleated Filter Cartridge 50 Micron

4.5" x 20" 50 Micron US Water Polyester Filter Cartridge

Features

• Pleated design for more surface area
• Bacteria and chemical resistant
• Cleanable and reusable in most applications and micron sizes
• Thermally bonded end caps to ensure better sealing

Benefits

• Lower overall operating cost
• Longer filter runs for fewer change outs
• Lower initial pressure drops
• Reduced maintenance down time and cost
• Increased contaminant removal
• High flow capability

Applications

• Reverse Osmosis Pre-filtration
• Municipal Drinking Water Filtration
• Commercial/Residential Drinking Water Filtration
• Desalination Pre-filtration
• Industrial Water Filtration
• Cooling Tower Filtration
• Chill Water Loop Filtration
• Food & Beverage Filtration
• Marine/Aquatic Filtration

Specifications

• Filter Media : Polyester
• Temperature : 40°F-145°F
• Dimensions : 4-1/2" O.D.
• Center tubes : Polypropylene
• pH : 3 to 11
• End Caps : Thermosetting Vinyl Plastisol

Sizing Guide

• Nominal Micron Rating : 50
• Recommended Flow Rate (GPM) : 25
• Length (in) : 20"
• O.D. (in) : 4.5"
• No./Case : 6

Replaces The Following

• Flowmax FM-BB-20-50
• Watts WPC50FF20
• Pentek ECP50-20BB
• Harmsco WB-HB-20-50W
• Harmsco HB-20-50W
• Neo-Pure PS-45200-50
• Hydronix SPC-45-2050

Fits Harmsco, Flowmatic, Ametek, Pentek, and most other standard 4.5" x 20" housings
