Patriot XL Skid-Mounted Turnkey Reverse Osmosis System
Flash Sale Ends:
SKU:
223-DFROS : 223-DFROS-8000
The Patriot XL is a true Plug n Play commercial reverse osmosis system which produces up to 20,000 gallons of pure water each day (larger and smaller sizes are available upon request). The Patriot XL is configured for municipal water that contains chlorine and/or chloramine, but can be custom-configured for well with site specific needs, including iron, sulfur, arsenic, nitrate, boron, manganese and numerous other contaminant removal.
Subtotal:
$20,995.95
Free Shipping
Free standard shipping on most products over $199.
One Year Satisfaction Guarantee
Learn More.
Patriot: Industrial-Grade,
Turnkey
Turnkey
Engineered to Deploy, Not to Assemble
The Patriot XL ships as a complete, skid-mounted water treatment plant. Everything is pre-plumbed, pre-wired, and performance-tested before it leaves our facility.
Made in America
Designed, built & tested in the USA
True Plug & Play
1 electrical + 4 plumbing connections
98.5% Salt Rejection
Dissolved solids, chemicals & more
Lifetime Expert Support
Certified water specialists on call
Plug & Play Installation
One 230V single-phase electrical connection and four plumbing connections: inlet, drain, tank, and supply. No multi-trade coordination. No weeks on-site.
Stainless Steel Construction
Membrane housings and high-pressure pump built from stainless steel. Corrosion-resistant, sanitary, and designed for continuous industrial duty cycles.
Custom Engineered
Every Patriot XL is configured to your site conditions and feed water chemistry. Municipal or well water: we engineer the pre-treatment to match.
7-Stage Treatment
Sediment filtration, dual carbon stages, anti-scalant injection, RO membranes, variable-speed delivery, and UV disinfection, all integrated on a single skid.
Hand-Welded Skid Frame
Heavy-gauge powder-coated steel frame, hand-welded at our Indianapolis facility. Built to handle forklift transport, rigging, and permanent installation.
Variable Speed Delivery
Integrated variable-speed delivery pump rated up to 20 GPM at 60 PSI. Maintains constant pressure across your distribution system, on demand.

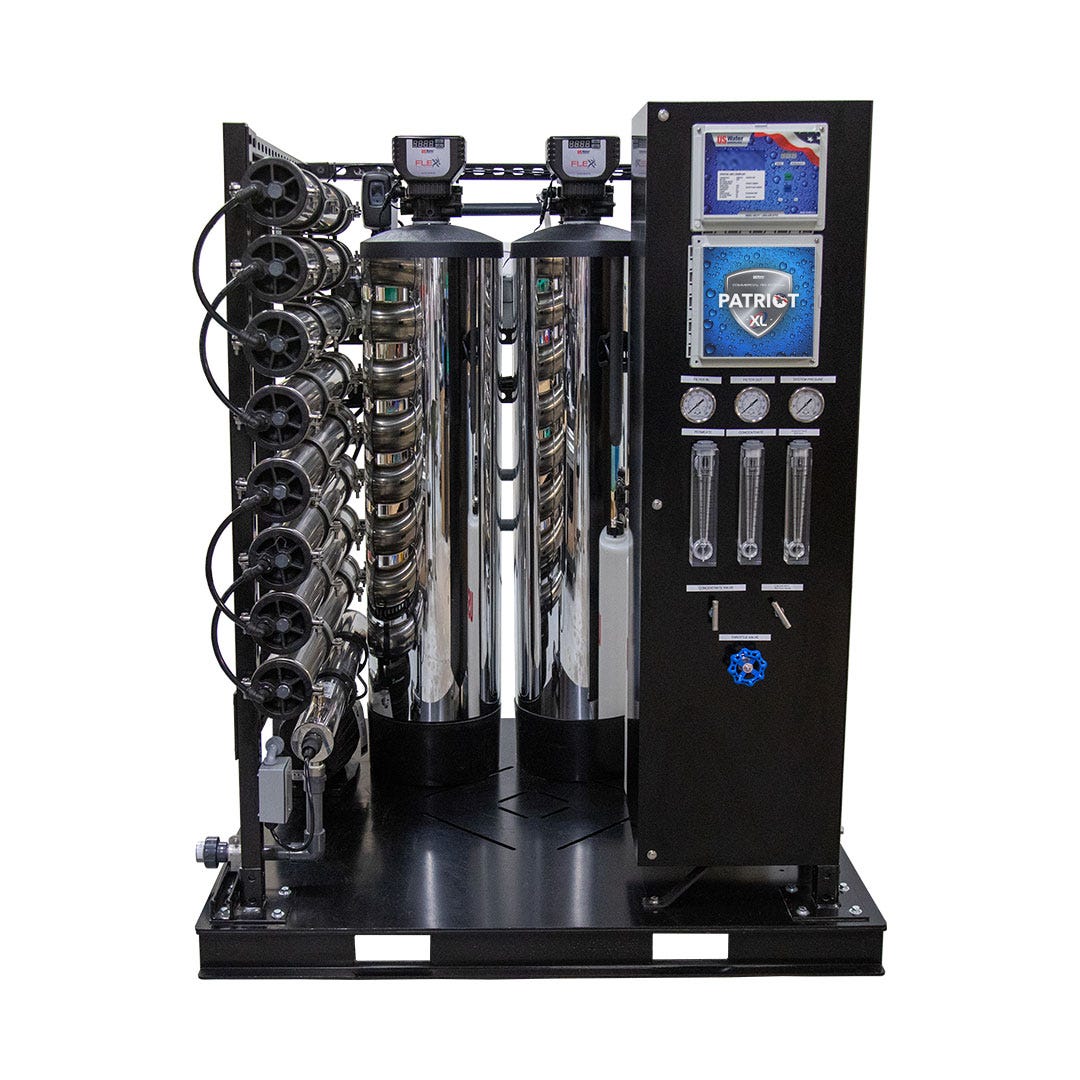

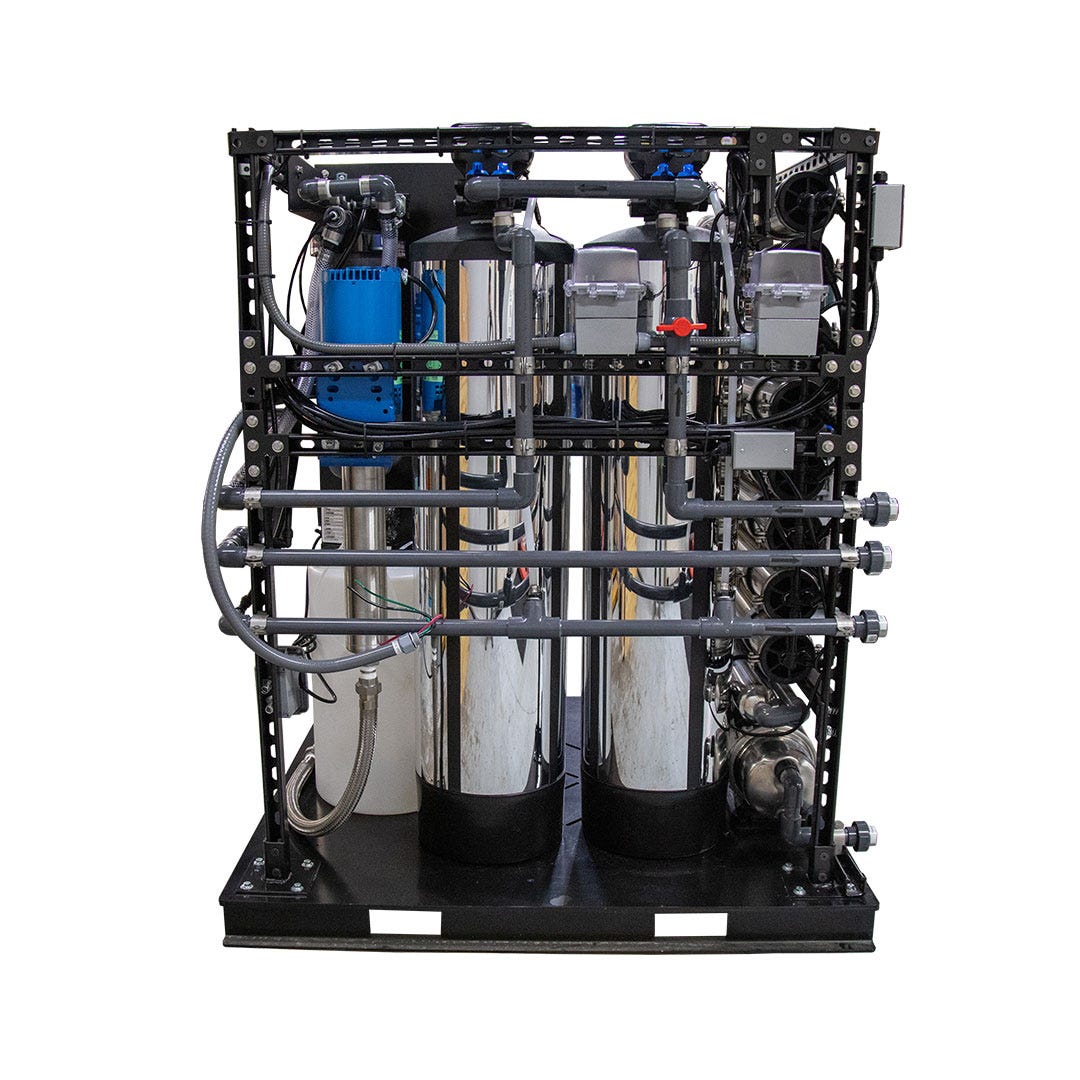

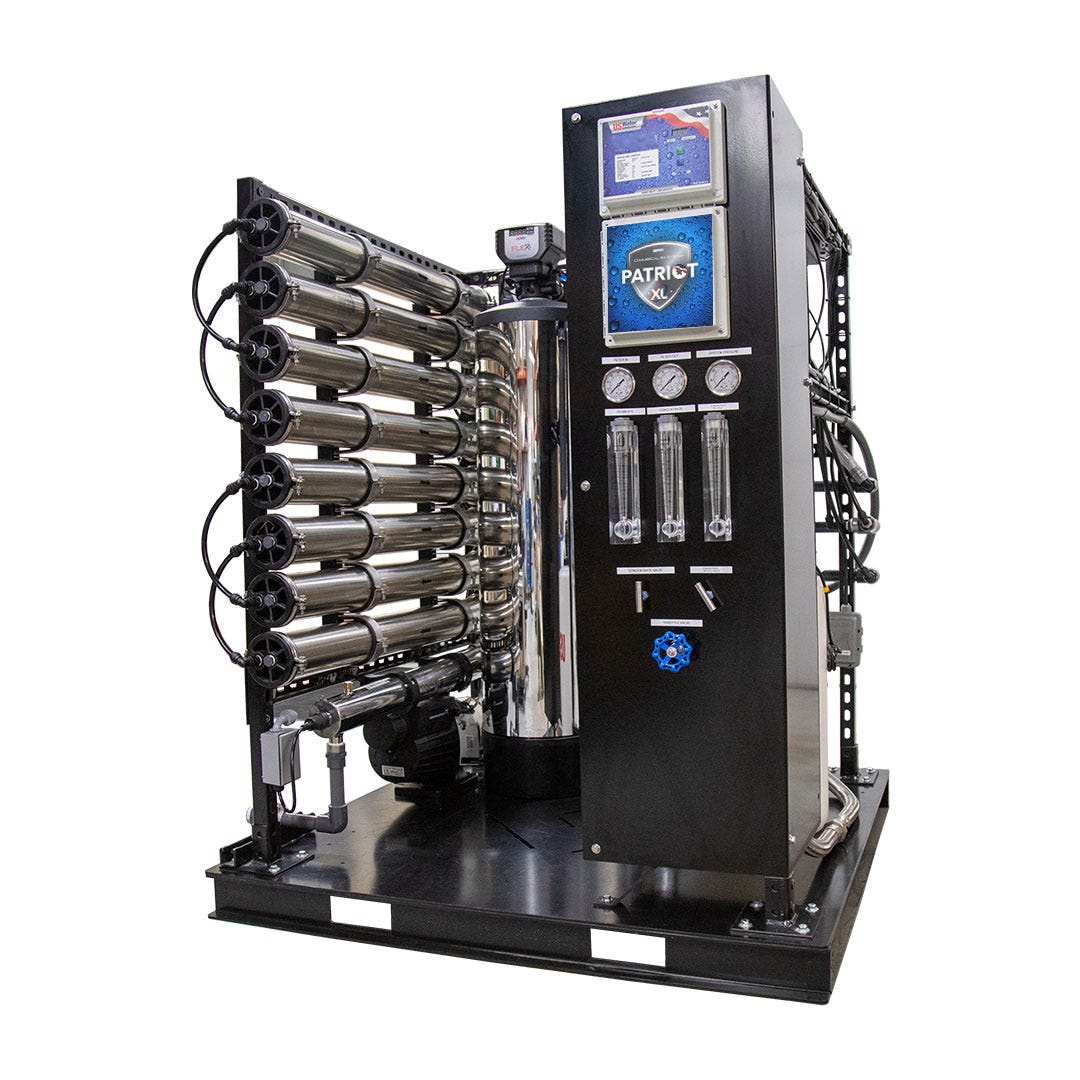

360° View
See the Patriot XL
Skid-mounted, fully integrated, and ready to ship. Every component is accessible for service without disassembly.
The Process
7-Stage Integrated Treatment
From raw feed water to UV-disinfected permeate, delivered on demand. Every stage is pre-plumbed on the skid, nothing to engineer on-site.
1
5-Micron Sediment Filter
Captures sand, silt, rust, and suspended solids before they reach downstream components. Protects carbon media and membranes from premature fouling and physical damage.
Pre-Treatment2
Granular Activated Carbon (GAC)
Adsorbs free chlorine, volatile organic compounds, and chemical contaminants from municipal water supplies. Essential membrane protection: chlorine destroys RO membranes on contact.
Pre-Treatment3
Catalytic Granular Activated Carbon
Specifically engineered for chloramine removal, the disinfectant standard chlorine alone can't address. Critical for municipal systems using chloramine as a secondary disinfectant.
Pre-Treatment4
Anti-Scalant Injection
Precision-dosed anti-scalant prevents calcium carbonate, silica, and other mineral deposits from scaling membrane surfaces. Extends membrane life and maintains consistent rejection rates.
Membrane Protection5

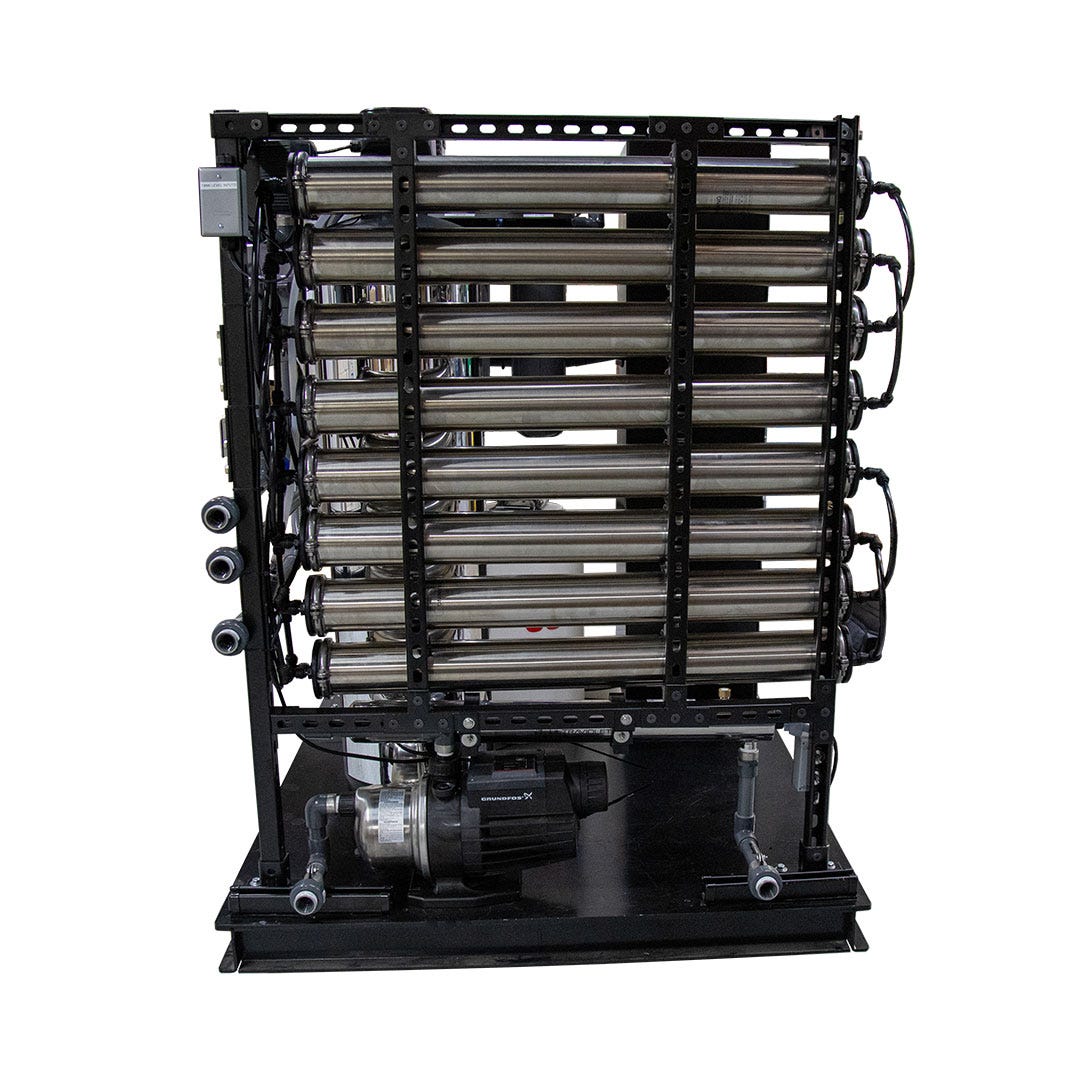

Reverse Osmosis Membranes
4 to 8 high-rejection membranes deliver up to 99% TDS removal with 80% water recovery. The core purification stage, removing dissolved salts, heavy metals, bacteria, and virtually all contaminants.
Core Purification6
Variable Speed Delivery Pump
Integrated stainless steel pump delivers up to 20 GPM at 60 PSI. Variable-speed drive maintains constant pressure regardless of demand fluctuations across your distribution network.
Distribution7
Ultraviolet Disinfection
UV sterilization rated for up to 20 GPM provides a final microbial barrier. Eliminates bacteria, viruses, and protozoa without chemicals, critical for food, beverage, and pharmaceutical applications.
Final DisinfectionSize It Right
Choose Your Patriot XL
Three standard configurations from 8,000 to 16,000 GPD. Need more capacity? Our engineering team builds custom systems at 20,000+ GPD.
Patriot XL-8K
8,000 GPD
Membranes4
RecoveryUp to 80%
RejectionUp to 99%
Delivery Pump20 GPM / 60 PSI
Dimensions48"×30"×72"
Weight (Dry)~500 lbs
Most Popular
Patriot XL-12K
12,000 GPD
Membranes6
RecoveryUp to 80%
RejectionUp to 99%
Delivery Pump20 GPM / 60 PSI
Dimensions60"×30"×72"
Weight (Dry)~650 lbs
Patriot XL-16K
16,000 GPD
Membranes8
RecoveryUp to 80%
RejectionUp to 99%
Delivery Pump20 GPM / 60 PSI
Dimensions72"×30"×72"
Weight (Dry)~800 lbs
Custom Build
20,000+ GPD
Need higher capacity? Our engineering team designs custom Patriot XL systems at 20,000 GPD and above, configured to your exact site, chemistry, and production requirements.
Typical lead time: 4-6 weeks from engineering approval
Technical Data
Full Specifications
Complete operating parameters and model comparison. All Patriot XL systems operate at 230V single-phase with a single electrical connection.
| Specification | XL-8K | XL-12K | XL-16K |
|---|---|---|---|
| Production (GPD) | 8,000 | 12,000 | 16,000 |
| RO Membranes | 4 | 6 | 8 |
| Salt Rejection | Up to 99% | Up to 99% | Up to 99% |
| Water Recovery | Up to 80% | Up to 80% | Up to 80% |
| Treatment Stages | 7 | 7 | 7 |
| Pre-Treatment | Sediment + Dual Carbon + Anti-Scalant | ||
| Delivery Pump | Variable Speed, Up to 20 GPM at 60 PSI | ||
| UV Disinfection | Up to 20 GPM | ||
| Membrane Housings | Stainless Steel | ||
| Pump Material | Stainless Steel | ||
| Frame | Hand-Welded, Powder-Coated Steel | ||
| Electrical | 230V / 60Hz / Single Phase | ||
| Connections | 1 Electrical + 4 Plumbing (Inlet, Drain, Tank, Supply) | ||
| Dimensions (W×D×H) | 48"×30"×72" | 60"×30"×72" | 72"×30"×72" |
| Weight (Dry) | ~500 lbs | ~650 lbs | ~800 lbs |
| Origin | Manufactured in USA: US Water Systems HQ | ||
| Temperature & Pressure | |
|---|---|
| Max Feed Temperature | 105°F (40.96°C) |
| Min Feed Temperature | 40°F (4.44°C) |
| Max Ambient Temperature | 120°F (48.89°C) |
| Min Ambient Temperature | 35°F (1.66°C) |
| Max Feed Pressure | 85 PSI (5.86 bar) |
| Min Feed Pressure | 35 PSI (2.41 bar) |
| Max Operating Pressure | 150 PSI (10.34 bar) |
| Water Quality Limits | |
|---|---|
| Max SDI | <5 |
| Max Turbidity | 1 NTU |
| Max Free Chlorine | 0 ppm |
| Max TDS | 2,000 ppm |
| Max Hardness | <1 gpg |
| Max pH (Continuous) | 11 |
| Min pH (Continuous) | 3 |
Atmospheric Tank
Atmospheric Tank & Delivery Pump
The Patriot XL permeate flows into an open atmospheric tank. A float valve and solenoid control fill; optional UV keeps stored water bacteria-free. A delivery pump pushes treated water to the point of use at consistent pressure.
- Large storage capacity for high-volume operations
- Float valve and solenoid automate fill cycles
- Delivery pump provides consistent pressure to equipment
- Ideal for industrial, food & beverage, and demanding commercial use
Industries Served
Built for Demanding Operations
The Patriot XL delivers the water quality, volume, and reliability that critical operations demand, day after day, shift after shift.
Brewing & Distilling
Build water profiles from a zero-TDS canvas. Eliminate source water variability for consistent batch quality at any production volume.
Food Processing
Consistent, low-TDS process water for ingredient mixing, equipment sanitation, and production-line quality at industrial scale.
Hydroponics & Agriculture
Zero-TDS base for precision nutrient dosing and pH-balanced irrigation. Eliminates salt accumulation in growing media at scale.
Pharmaceutical & Lab
High-purity feed water for compounding, analytical instruments, and research applications requiring stringent TDS and microbial control.
Car Wash
Spot-free rinse water that eliminates mineral deposits on every vehicle. Reduces chemical usage and improves customer satisfaction.
Manufacturing
Process-ready water for CNC coolant mixing, boiler feed, surface finishing, and equipment protection across the production floor.
The Comparison
Patriot XL vs. Typical Competitors
Most commercial RO systems ship as components. The Patriot XL ships as a finished, tested water treatment plant.
| Feature | Patriot XL | Typical Competitor |
|---|---|---|
| Installation Type | ✓ True plug & play: 5 connections | ✗ Site-built, multi-trade, multi-week |
| Pre-Treatment | ✓ Integrated 3-stage on skid | ✗ Separate equipment, field-assembled |
| Membrane Housings | ✓ Stainless steel | ✗ FRP or PVC |
| Pump Material | ✓ Stainless steel | ✗ Cast iron or plastic |
| Frame Construction | ✓ Hand-welded, powder-coated steel | ✗ Bolted aluminum or painted mild steel |
| UV Disinfection | ✓ Integrated, up to 20 GPM | ✗ Add-on or not available |
| Delivery Pump | ✓ Variable speed, 20 GPM at 60 PSI | ✗ Not included or fixed-speed |
| Custom Engineering | ✓ Configured per site & chemistry | ✗ Standard configurations only |
| Lead Time | ✓ Shortest in the industry | ✗ 8-16 weeks typical |
| Testing Before Ship | ✓ Full performance & leak testing | ✗ Ships untested or pressure-only |
| Expert Support | ✓ Lifetime, US-based engineers | ✗ 90-day phone support |
Common Questions
Frequently Asked Questions
The Patriot XL arrives as a fully assembled, skid-mounted system. Installation requires one 230V single-phase electrical connection and four plumbing connections: a feed water inlet, a drain line, a line to your storage tank, and a supply line to your distribution point. There is no multi-trade coordination, no field assembly, and no weeks of on-site construction. A licensed plumber and electrician can typically complete the connection in a single day.
Yes. Our standard models cover 8,000 to 16,000 GPD, but our engineering team regularly designs and builds custom Patriot XL systems at 20,000+ GPD. These custom builds are engineered to your specific site conditions, feed water chemistry, and production requirements. Contact us with your project details and we'll scope a system to match.
The Patriot XL has the shortest lead time in the commercial/industrial RO market. Because every system is manufactured at our headquarters in Indianapolis, we control the entire build process from engineering through final testing. Standard configurations typically ship faster than custom builds, but even custom systems move significantly faster than industry norms. Contact us for a current lead time estimate based on your configuration.
The Patriot XL is configured for municipal water (chlorine/chloramine) by default, but it can be custom-engineered for well water applications. Well water typically requires different pre-treatment: iron removal, hydrogen sulfide treatment, or additional sediment filtration depending on your water analysis. Send us a recent water test and our engineers will configure the pre-treatment stages to match your specific well water chemistry.
Routine maintenance includes periodic replacement of the 5-micron sediment filter, carbon media changeouts based on usage and chlorine levels, anti-scalant solution refills, membrane cleaning or replacement as rejection rates dictate, and UV lamp replacement per manufacturer schedule. All components are easily accessible on the skid without disassembly. Our support team provides maintenance schedules specific to your system and water conditions.
The Patriot XL requires a single dedicated 230V / 60Hz / single-phase circuit. This powers the entire system: RO pump, delivery pump, anti-scalant dosing pump, UV unit, and all controls. No three-phase power is required for standard configurations. The single electrical connection is part of what makes the system truly plug-and-play: one circuit, one breaker, one connection point.
Ready to Spec Your Patriot XL?
Our commercial engineering team will scope your system, review your water chemistry, and deliver a detailed proposal, no obligation.
Call Direct: (800) 608-8792
