Light Commercial Reverse Osmosis Systems - Raptor
SKU:
220-USW-RPT : 220-USW-RPT-500-NT
The Raptor Lite Commercial Reverse Osmosis System is engineered to be compact and ready to use in industries where water is the key ingredient such as laboratories, coffee shops, restaurants, small-batch breweries, and hydroponics operations. This system can be placed on a shelf, counter, or on the floor and features American-made craftsmanship with a powder-coated steel frame that is lightweight, rugged, and corrosion-resistant.
The small but mighty footprint touts three filtration stages ahead of the membrane and has been praised for both its quality and longevity. And, did we mention it has the BEST warranty in the industry? 5-year warranty on frame and housings and 1 year on pump and electronics.
The small but mighty footprint touts three filtration stages ahead of the membrane and has been praised for both its quality and longevity. And, did we mention it has the BEST warranty in the industry? 5-year warranty on frame and housings and 1 year on pump and electronics.
Subtotal:
$1,495.00
Free Shipping
Free standard shipping on most products over $199.
One Year Satisfaction Guarantee
Learn More.
Engineered to Fit
Commercial RO, Countertop Form Factor
The Raptor Lite delivers 500–750 GPD of purified water from a compact countertop unit with an integrated booster pump: no wall mounting, just a cold water line and a standard 110V outlet.
Made in America
Designed, built & tested in the USA
<7-Day Lead Times
Ships in days, not months
98.5% Salt Rejection
Dissolved solids, chemicals & more
Lifetime Expert Support
Certified water specialists on call
Countertop Design
Sits directly on your counter: no wall brackets, no floor mounting, no structural modifications. Place it where you need it and connect to a cold water line.
Quick-Connect Fittings
3/8″ tubing with high-quality quick-connect fittings throughout. Ships pre-assembled and pre-tested: connect and run in minutes, not hours.
Double O-Ring Pre-Filters
Posi-seal technology eliminates bypass: 100% of your feed water passes through all three pre-filtration stages before reaching the membrane.
Compact Footprint
As small as 7″×18″×22″: fits on a standard counter, in a utility closet, or next to your espresso machine without consuming valuable workspace.
Fully Customizable

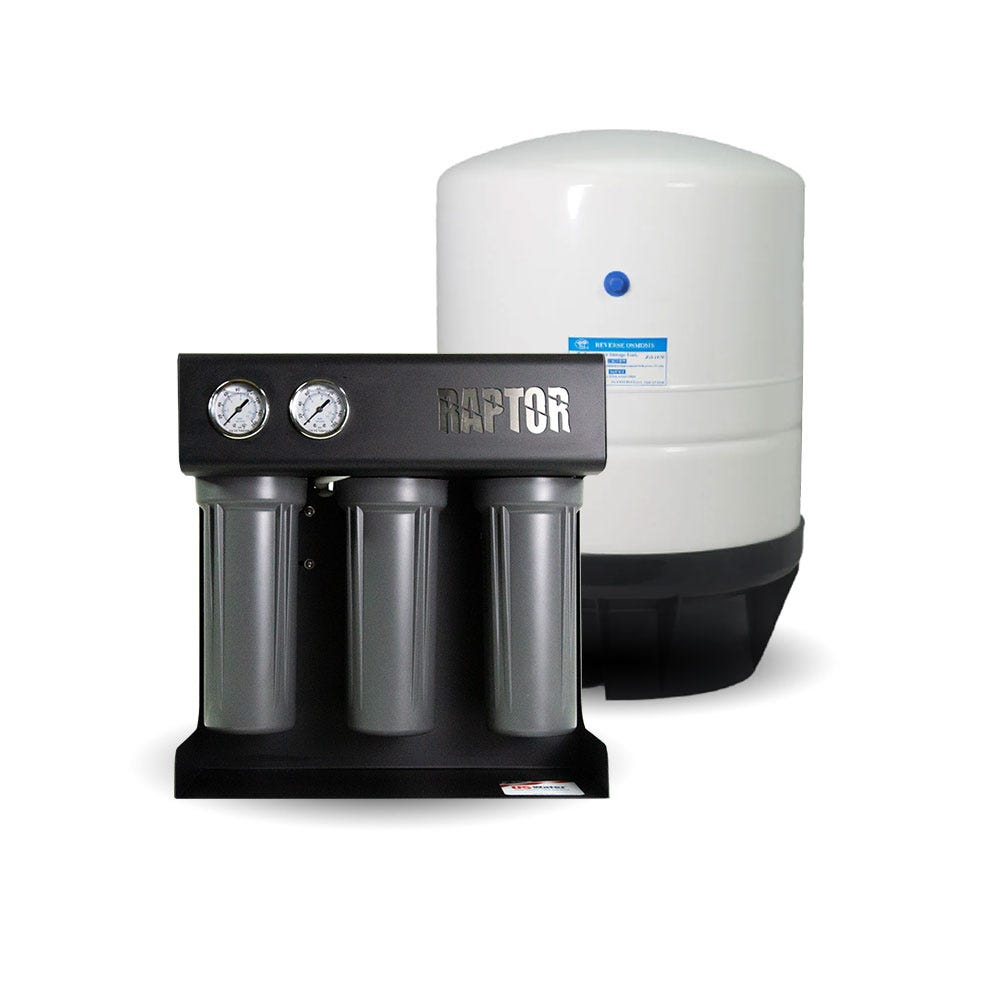

Pair with pressurized tanks from 14–120 gallons, add UV sterilization, or configure remineralization: the system scales with your operation.
5-Year Warranty
Every non-consumable component is covered for 5 full years. Membranes and filters are excluded: but we make reordering effortless with auto-ship.
Two Configurations
Choose the Raptor Lite That Fits Your Operation
Both models use an integrated booster pump for steady pressure and consistent output. Choose the capacity that matches your daily demand.
500 GPD
Booster Pump · Single Membrane
- Recovery Rate ~50%
- Membranes 1× 3″×12″
- Dimensions ~7″ × 18″ × 22″
- Power 110V
- Connections 3/8″ Quick-Connect
- Salt Rejection 98.5%

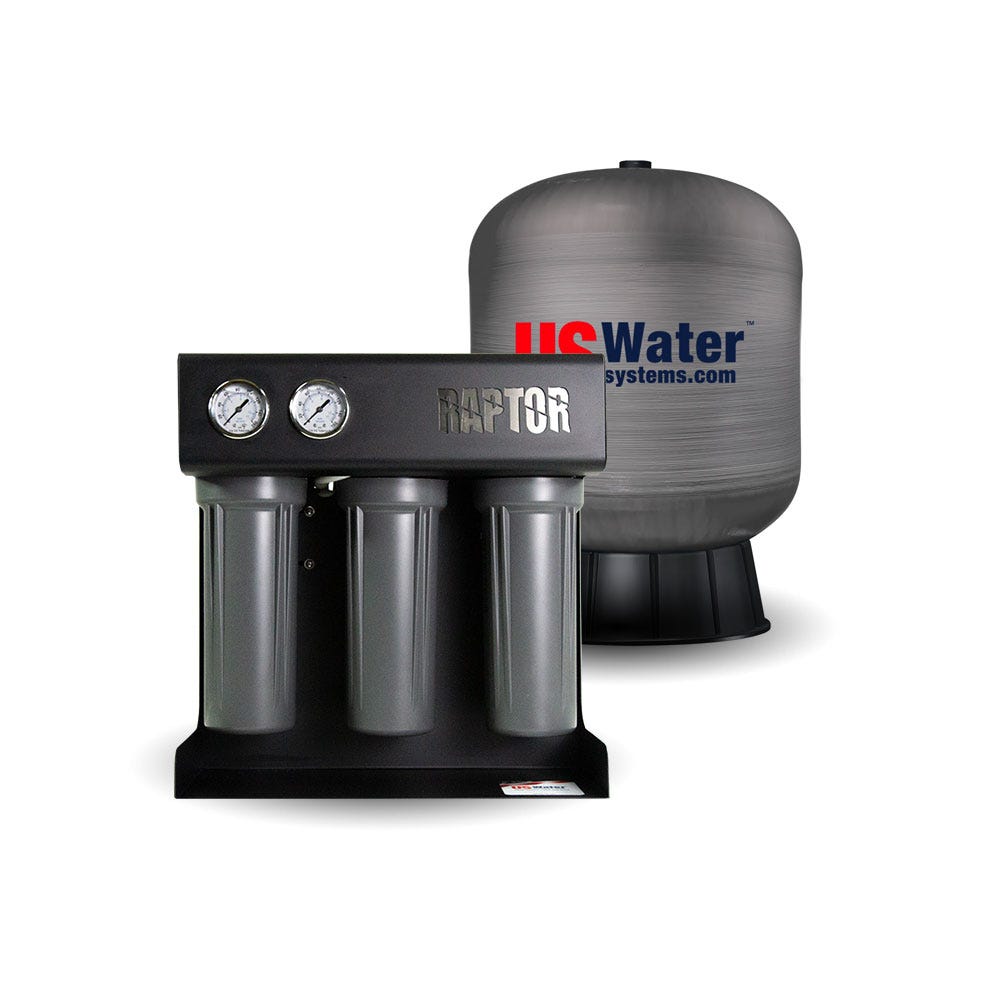

Adds the 500 GPD / 20 Gallon Composite configuration.
750 GPD
Booster Pump · Dual Membrane
- Recovery Rate ~50%
- Membranes 2× 3″×12″
- Dimensions ~7″ × 18″ × 26″
- Power 110V
- Connections 3/8″ Quick-Connect
- Salt Rejection 98.5%
Adds the 750 GPD / 20 Gallon Composite configuration.
Inside the System
4-Stage Filtration, Nothing Gets By
Every prime connection in the filtration chain uses posi-seal double O-ring technology: so untreated city water passes through four precision stages with zero bypass and 100% of the flow through the media.
1
5-Micron Sediment Filter
Traps particulates, dirt, and rust before they reach the carbon stages: protecting downstream components and extending membrane life.
2
Chloramine Block Filter
Targets chloramines (chlorine + ammonia): the disinfectant increasingly used by municipalities that standard carbon alone can't fully remove.
3
Carbon Block Filter
Adsorbs chlorine, VOCs, and organic compounds that degrade RO membranes: critical for municipal water sources.
4
RO Membrane
High-efficiency thin-film composite membrane in a posi-seal double O-ring housing rejects 98.5% of dissolved solids: delivering permeate ready for direct use or storage.

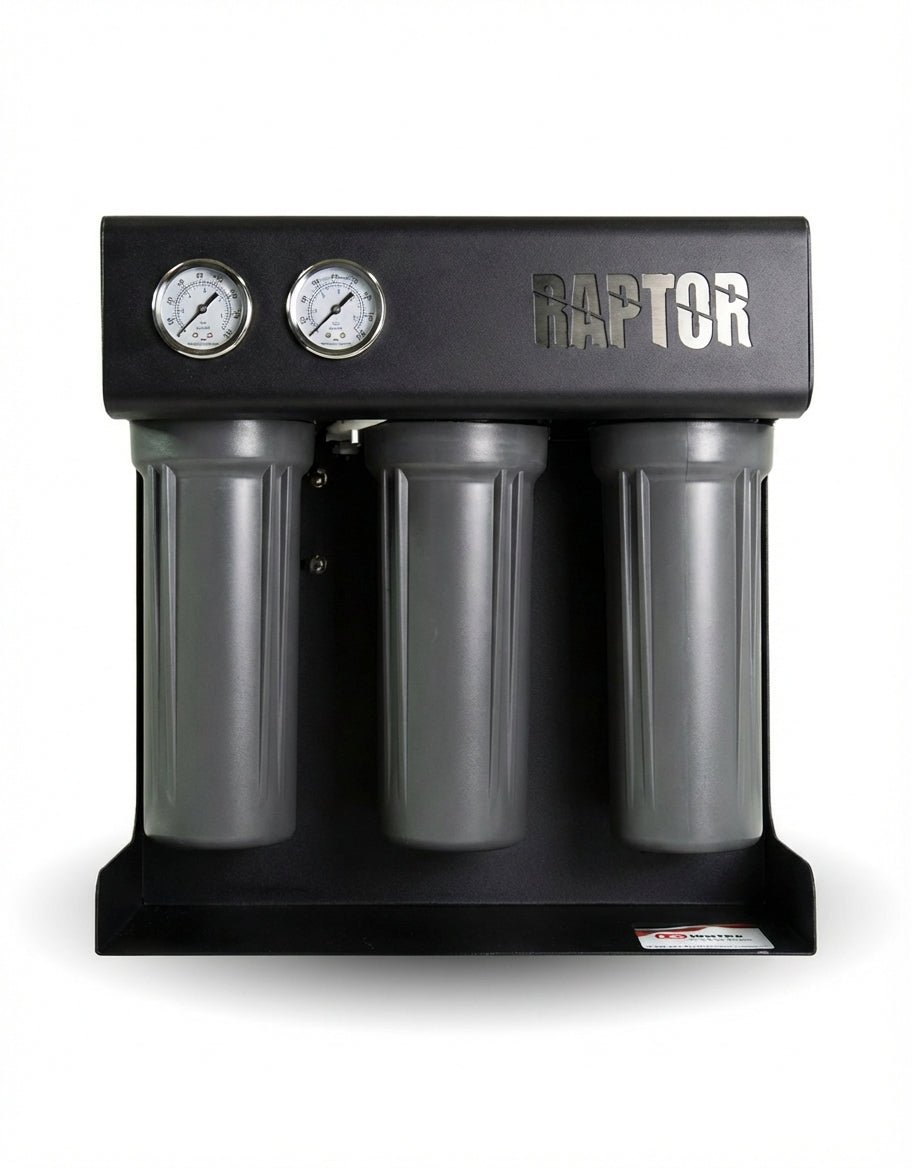

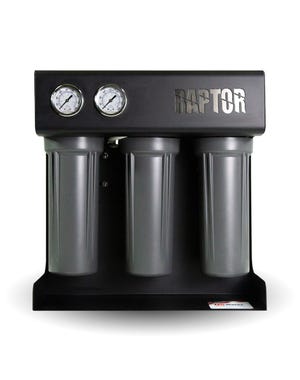

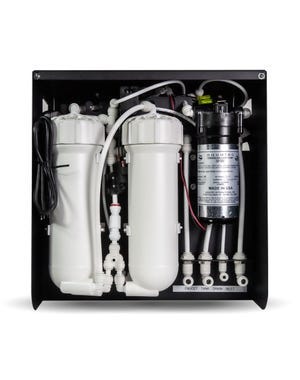

Up Close
See the Build Quality
Engineering Data
Full Specifications
Every Raptor Lite ships pre-assembled and pre-tested as a self-contained countertop unit. Both models include an integrated booster pump and run on standard 110V power. All connections are 3/8″ quick-connect tubing.
Request Custom SizingOperating Limits
| Feed Water Source | City / Municipal (chlorinated) |
| Feed Pressure | 35 – 85 PSI |
| Max Operating Pressure | 150 PSI |
| Max TDS | 1,000 ppm |
| Max Free Chlorine | 0 ppm (pre-filters remove) |
| pH Range | 3 – 11 (continuous) |
| Power Required | 110V / 60Hz |
| Specification | Raptor Lite 500 | Raptor Lite 750 |
|---|---|---|
| Capacity | 500 GPD | 750 GPD |
| Configuration | Single Pass | Single Pass |
| Feed Water Source | City | City |
| Standard Recovery | ~50% | ~50% |
| Salt Rejection | 98.5% | 98.5% |
| Membrane Qty | 1 | 2 |
| Membrane Size | 3″ × 12″ | 3″ × 12″ |
| Pump Type | Integrated Booster Pump | Integrated Booster Pump |
| Voltage | 110V / 60Hz | 110V / 60Hz |
| Connections | 3/8″ QC | 3/8″ QC |
| L × W × H | ~7″ × 18″ × 22″ | ~7″ × 18″ × 26″ |
| Form Factor | Countertop | Countertop |

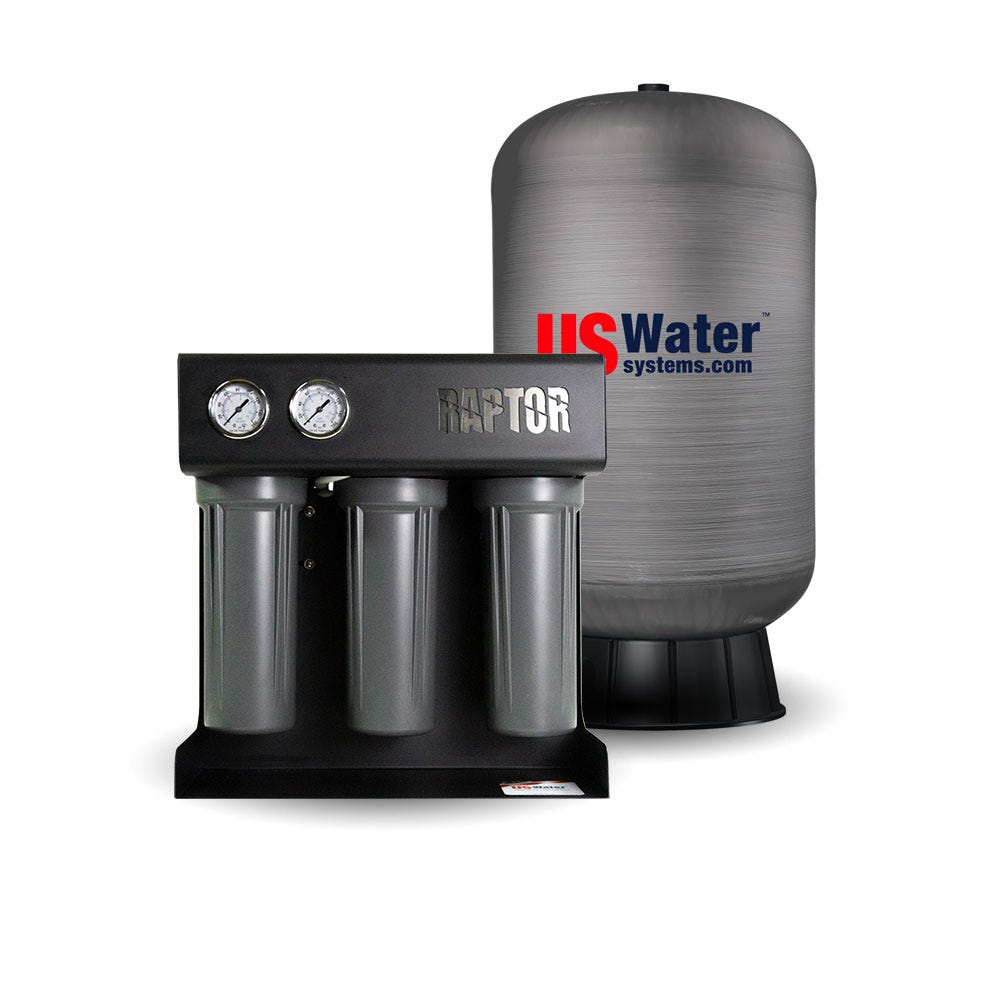

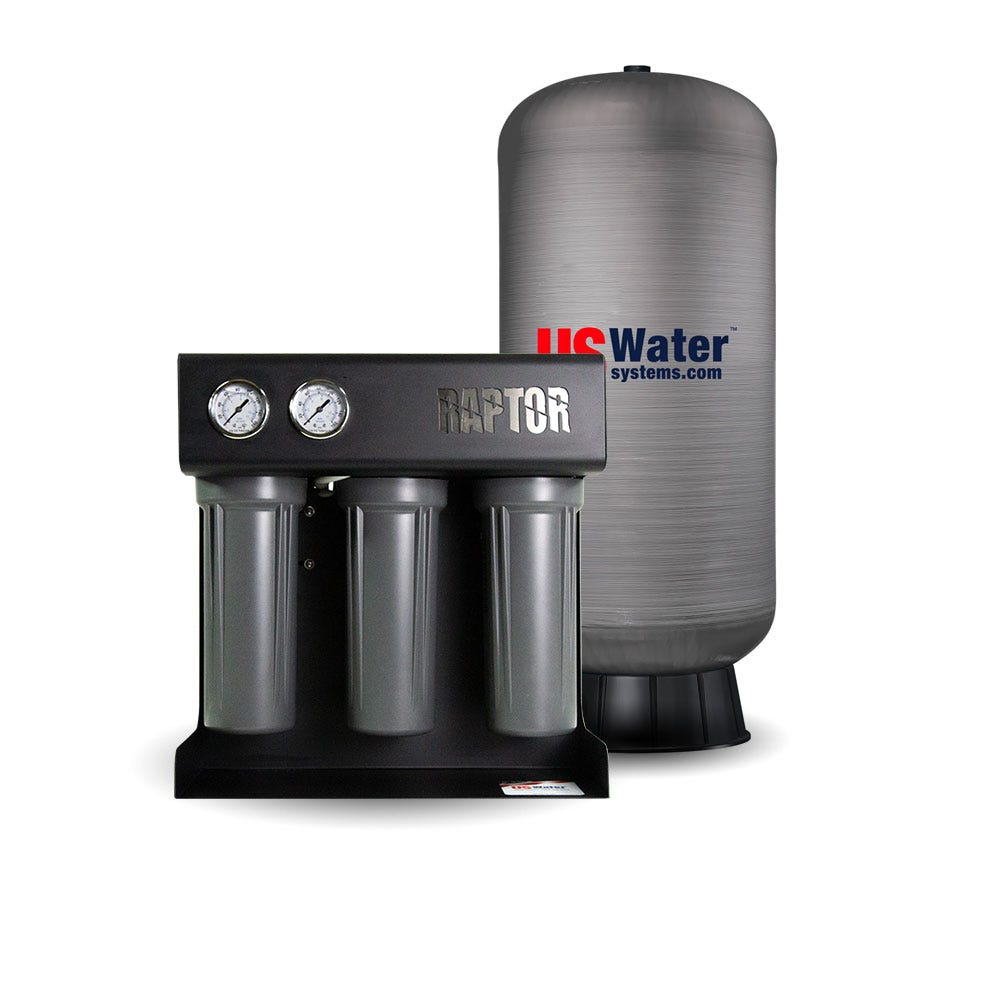

| Tank Options | 14, 20, 40, 80, 120 gal composite pressurized | |
| Warranty | 5-year warranty on all non-consumable components | |
Performance based on municipal feedwater: dechlorinated, filtered to 5 microns, 77°F, pH 7.0. Output varies with temperature, pressure, and water chemistry. Dimensions are approximate: allow clearance for installation and service access.
Resources
Literature & Manuals
Download the verified Raptor Lite product PDF for system details and specifications.
Pressurized Tank
Pressurized Tank Package
The Raptor fills a pressurized composite or steel tank that delivers water on demand using stored air pressure. No separate delivery pump needed at the point of use.
- Stored air pressure delivers water: no separate delivery pump
- Tank options from 14 to 120 gallons (see below)
- High-pressure auto-shutoff when tank is full
- Ideal for coffee, dental, and light commercial use
Atmospheric Tank
Atmospheric Tank & Delivery Pump
The Raptor fills an open atmospheric tank with float valve automation. A delivery pump provides consistent pressure to your point of use: ideal for higher-volume demand.
- Large storage capacity: 80 to 250+ gallons
- Float valve automates fill cycles
- Delivery pump provides consistent pressure
- Ideal for car wash, greenhouse, and food service
Perfect Fit
Built for These Operations
Wherever water quality directly impacts product quality, patient safety, or equipment longevity: the Raptor Lite delivers from a countertop footprint.
Coffee & Beverages
Consistent extraction and better-tasting coffee, tea, and specialty drinks: every cup.
Healthcare & Dental
High-purity water for autoclaves, instrument cleaning, and patient safety protocols.
Laboratories
Reliable low-TDS water for analytical, research, and quality-control applications.
Small Restaurants
Clean ice, spotless glassware, and improved cooking water: without a large footprint.
Why Switch
Raptor Lite vs. Typical Competitors
Most countertop commercial RO systems rely on imported components, limited support, and restrictive warranties. We took a different approach.
Raptor Lite
<7-day lead times: ships in days, not months
American-made: designed, assembled & tested in the USA
Integrated booster pump: consistent output even when feed pressure fluctuates
Pre-assembled & pre-tested: operational in minutes
5-year warranty on all non-consumable components
Direct expert access: certified water specialists, not scripts
Typical Competitors
8–12 week lead times: delayed projects and lost revenue
Imported components: vulnerable to tariffs and supply disruption
Unpumped designs: output falls off whenever feed pressure dips
Assembly required: loose fittings and unclear instructions
Limited warranties: 1–2 years with restrictive fine print
Outsourced support: long holds and generic troubleshooting
Common Questions
Frequently Asked Questions
Can't find the answer you need? Our certified water specialists are available by phone for personalized guidance.
Call (800) 608-8792

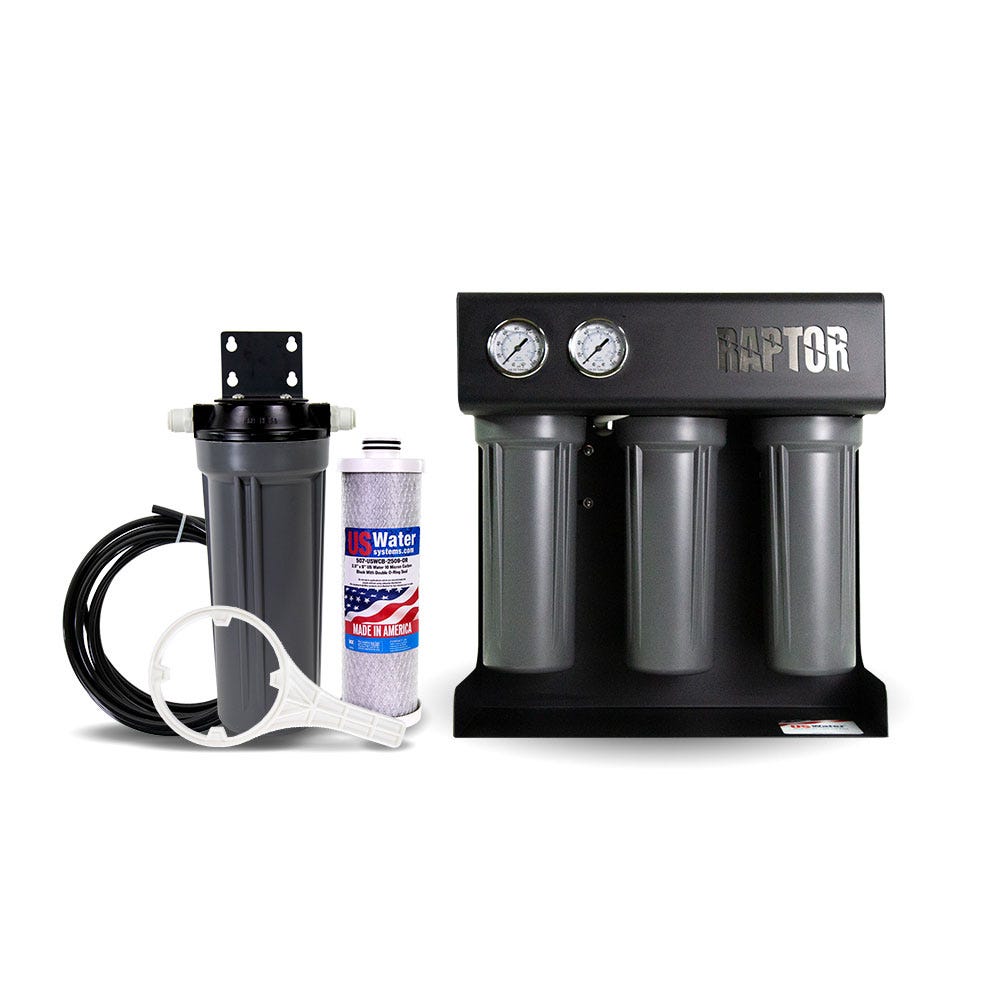

Every Raptor Lite ships complete with the TFC RO membrane, three pre-filter stages (5-micron sediment + dual carbon block), quick-connect tubing, and all fittings. It arrives pre-assembled and pre-tested: ready to connect to your cold water line. Storage tanks are available as add-on options.
Yes. Every Raptor Lite includes an integrated booster pump that runs on standard 110V power. The pump keeps membrane pressure consistent, so output stays steady even when feed pressure fluctuates. Just connect your cold water line and plug into a standard outlet.
Pre-filters should be replaced every 6–12 months depending on water quality and usage volume. The RO membrane typically lasts 2–3 years. We offer a convenient auto-ship program so you never miss a filter change.
The 500 GPD uses a single 3″×12″ membrane in a more compact housing (~22″ tall). The 750 GPD uses two 3″×12″ membranes for 50% more output in a slightly taller unit (~26″). Both use the same integrated booster pump design and identical pre-filtration stages.
It depends on your demand pattern. If you need large volumes of RO water available on-demand during peak hours, a pressurized storage tank (14–120 gallons) ensures you never wait. For lower-volume or steady-draw applications, you may be able to run directly from permeate output.
The Raptor Lite is engineered for municipal (city) water sources. Well water often contains iron, hardness, and other contaminants that require additional pre-treatment. Call our specialists: we can recommend the right system configuration for your water chemistry.
Ready to Upgrade?
Pure Water, Countertop Simple
Order today and your Raptor Lite ships within 7 business days: fully assembled, tested, and ready to connect.
Prefer to talk? Call our experts at (800) 608-8792
Overall rating: 4.0 / 5 from 3 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Raptoer Review
"I would have give 5 stars, but for a few issues. Two of the 3 pre-filter housings are so close to the plate behind them and the fasteners from the items mounted on the back side that the filter wrench cannot be slid up and onto the housings. There are no feet on the metal frame of unit, the design of the unit requires access to the back so the unit will be sitting on a counter and slid around on the counter, metal directly on the counter will produce a scratch sometime in the future. Feet would also provide some isolation of the vibration from the pump, although it is minimal it is there. I placed the unit on a pad and that helps but the pad is not attached to the unit so care must be taken when moving the unit. The RO Membranes are a bit of a challenge to change but not too bad I really have no recommendation for that other than maybe make the hoses longer and routed so the housing can be more easily brought out to better facilitate removal of the caps. With that said OVERALL I like the system, it is compact, installed easily, so far works very well, the price compared to others in the same output range is good. I am impressed and will recommend this product to others! In fact one of the Reps that report to me was in the process of quoting a system to one of our Customers, I am going to have him use this same system for that quote. As I started I would have given 5 stars!"
I'm Impressed
"You get alot with this small for RO system."
Q&A
- can the raptor go into an atmospheric tank and distributed by a Grundfos pump
- Yes, this can be accomplished using a float that turns power on/off based on level, although depending on the size of the tank it will take a long time to fill.
