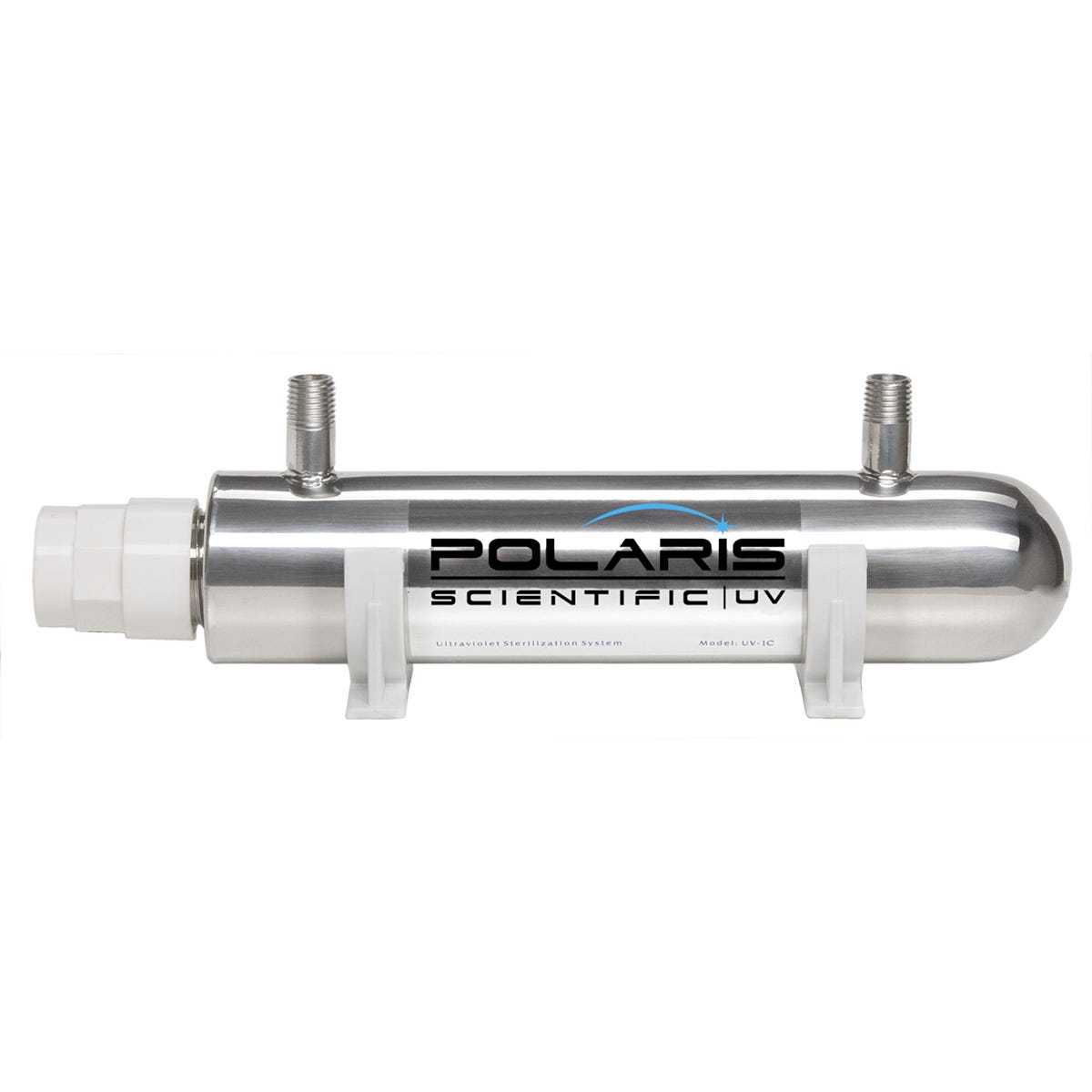

1 GPM POLARIS SCIENTIFIC ULTRAVIOLET DISINFECTION SYSTEM – UV-1C

The Polaris UV-1C Ultraviolet Disinfection system utilizes a natural quartz sleeve to protect the lamp and allow the maximum amount of UV rays to penetrate and disinfect the water. Polaris ultraviolet sterilization systems are the economical choice in ultraviolet sterilization. Durable construction, high quality quartz sleeves and high-performance lamps are all standard.

Micro-organisms are inactivated within seconds, with no harmful chemicals or by-products. These compact units require minimum space, simple installation and maintenance.

Provides a compact design and economical ultraviolet water treatment for low flow and medium flow applications such as:

• Light Commercial Reverse Osmosis Systems
• Residential Reverse Osmosis System
• Water Vending Machines
• Food Industry
• Laboratory and Medical Facility Water
• Pharmaceutical Water
• Cosmetic Processes
• Final Electronic Component Rinsing
• Recirculation Loops
• May also be configured for TOC reduction in high purity or ultra pure water processes

The Polaris Scientific UV-1C produces little change in water temperature even after prolonged periods of no water flow, making this ideal for many applications.

Polaris Scientific UV-1C Features

• Audible ballast with LED "lamp-out" indicator
• High output low pressure mercury vapor lamps with high isolation pin design
• Compact design (just 2.5" x 10.5")
• Manufactured with 304 Stainless Steel
• The disinfection chamber is polished for medical or laboratory use
• Easy servicing - no need to turn off the water flow to chamber to change the UV lamp
• Open-end quartz sleeve and stainless steel gland nuts
• Low operating temperature
• Excellent sealing efficiency
• Validated UV Lamps are rated at 9,000 hours life (1-year)
• CE Listed
• UL Pending
• Warranty:
• Stainless Chamber: 5 Years
• Ballast: 1 Year
• All Other Parts: 1 Year

Polaris Scientific UV-1C Specifications

• Part Number: UV-1C
• Flow Rate: 1 GPM
• Rated Life: 9000 HRS
• Lamp Power: 10 WATTS
• Voltage: 60HZ - 110V
• Visual Warning: LED
• Audible Warning: BUZZER
• Number of lamps: ONE
• Pipe Size (Inlet/Outlet): 1/4" MNPT
• Material of Water Chamber: STAINLESS 304
• Length: 10.5”
• Width: 2.5”
• Maximum Pressure: 125 psi
• Working Temperature: 35°F - 104°
• Wavelength: 254 nm

Includes: UV Bulb, Quartz Sleeve and Ballast
