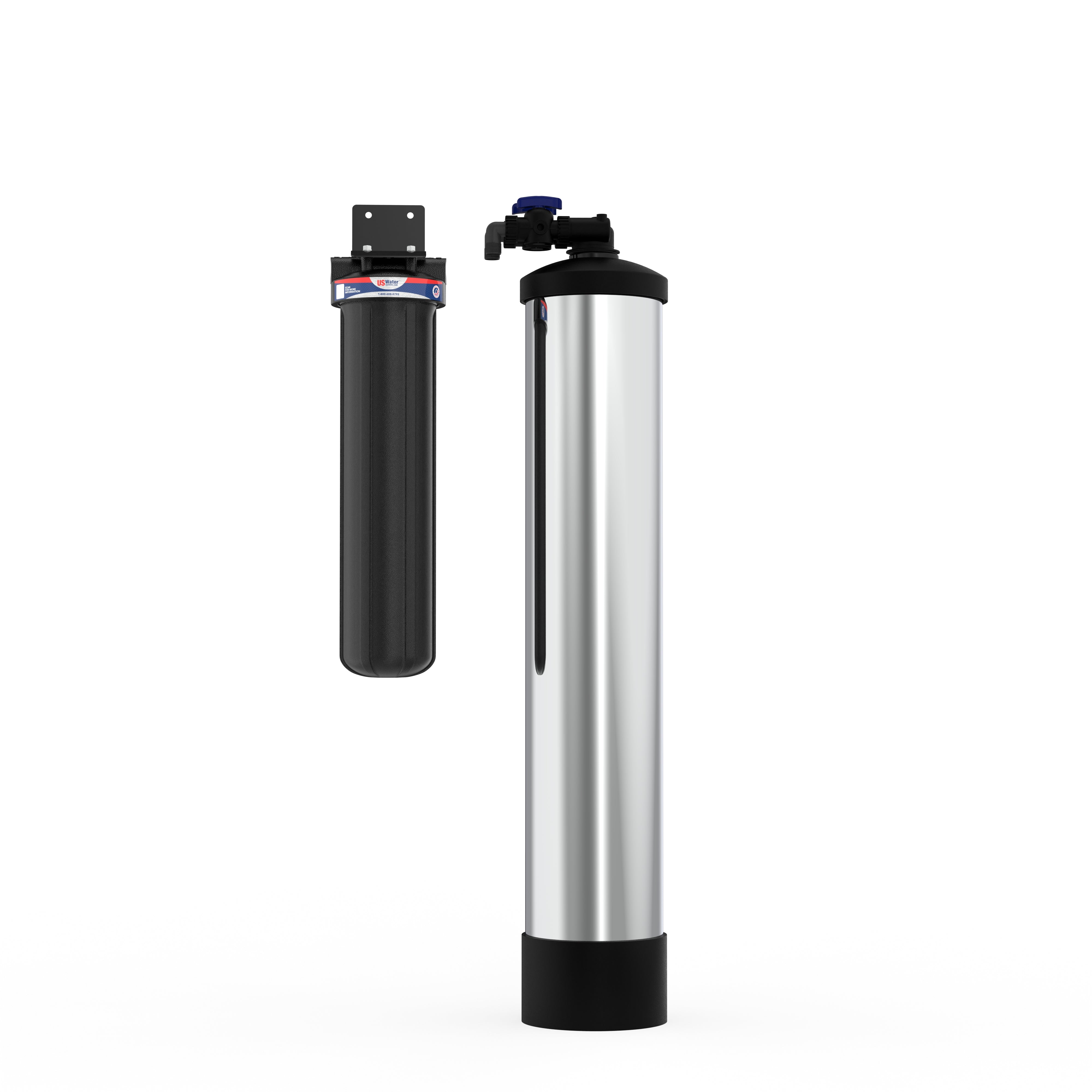

Bodyguard Whole House Water Filter & Chemical Removal System
Blowout Sale Ends:
SKU:
117-BGS : 117-BGS-10
The Bodyguard is the ultimate whole-house water filtration system, delivering clean, safe water to every tap while removing contaminants like Chlorine, Chloramine, MTBE, TTHM, PFOA, PFAS, and more. It operates efficiently without electricity or wasted water.
Subtotal:
$996.45
Free Shipping
Free standard shipping on most products over $199.
One Year Satisfaction Guarantee
Learn More.
Frequently Bought Together
Check Out These Great Installations
from Our Customers!
Tag us on Instagram to be featured! (#USWaterSystems)
Certified
Components
Chemical-Free
Water
Improved Hair
and Skin Health
High Quality, Great
Tasting Water
The Bodyguard: Filtered, High Quality Water Throughout Your Home
Contaminant Removal for Great-Tasting Water
You'll taste the difference in your coffee, tea, and cooking. Experience clean, healthy water throughout your home, filtered for Chlorine, Chloramine, MTBE, TTHM, PFOA, PFAS, and more!
Elevate Your Cooking with High Quality Water
Unlock the authentic flavors of your dishes with filtered water that enhances taste and richness - you will taste the difference!
Revitalize Your Hair and Skin
Shower with filtered water to reveal visibly healthier, more moisturized skin and hair.
Extend the Life of Your Clothes
Shield your clothes from chlorine damage and fading with filtered water, preserving fabric quality and reducing the need for replacements.
Removes Chlorine Vapors from Shower
Filter out chlorine vapors released in hot shower steam, letting you breathe more comfortably during your daily routine.
Trusted and Certified Components
Components are certified to meet NSF/ANSI 61 and 42 standards* and our systems are proudly built in the USA, ensuring trusted quality and reliability.
Sustained Water
Pressure and Flow
Engineered with full 1” or larger ported internals, the Bodyguard
surpasses its competitors by delivering 25% or up to 10 gpm more water
flow. This advanced design significantly reduces friction, turbulence,
and pressure loss. You will notice you have no pressure loss.
Inside the Bodyguard: Superior American Craftsmanship
Stage 1:
The 5 Micron Magna Filter
Engineered with dozens of polyester pleats, the 5 Micron Magna Filter effectively removes particles as small as 5 microns. Its enhanced design boasts up to 30% more surface area than competing brands, ensuring it lasts up to 30% longer without compromising your home water pressure.
What truly sets this filter apart is its unique, proprietary double O-ring seal, guaranteeing no contaminated water bypasses the filter element.
Filter Housing
Crafted through precision injection molding in California, our filter housing is built to last and withstand rigorous use.
Filter Bracket:
Our robust filter brackets are fabricated and powder-coated in Ohio, guaranteeing durability and resistance to wear.
Filter Element:
Each filter element is meticulously manufactured in California, upholding the highest standards of quality and effectiveness in water filtration.
Stage 2:
Bodyguard - Whole House Filter
This filtration process features a potent combination of premium catalytic carbon, Granular Activated Carbon (GAC), and KDF 55 media substrates. This robust blend eliminates unpleasant tastes and odors while neutralizing a broad spectrum of chemical impurities.
Catalytic carbon is highly effective at reducing chloramines and volatile organic compounds. GAC excels in removing chlorine and other contaminants. KDF 55 media targets heavy metals and prevents bacterial growth. Together, they ensure that every drop from your tap is high quality, clean, and safe.
Quartz Washed Gravel:
Mined and crushed in Eau Claire, WI - USA.
KDF 55 Process Media:
Formulated in Three Rivers, MI - USA.
Catalytic Carbon and GAC Media:
Derived from coconut shells, processed in Madampe, Sri Lanka.
Fiberglass reinforced tanks:
Manufactured in Chardon, OH - USA.
Bypass and Connectors:
Injection Molded in Reynosa, MX.
Stage 3 (Optional):
20 GPM Ultraviolet System:
Manufactured in Ontario, CA.
Final Assembly:
Each unit is proudly assembled and meticulously quality-checked in Indianapolis, IN, ensuring the highest standards of craftsmanship and performance.
LEARN MORE
ABOUT BODYGURAD
WHOLE HOUSE FILTER
COMMERCIAL-GRADE DESIGN
Best In Class Filtration
US Water Systems boasts 20 years of using high-quality, domestically sourced materials for optimal performance and reliability in water filtration.
Anti-Bacterial Filtration Media
Infused with copper and zinc, our filtration material actively prevents microbial growth, enhancing the longevity and efficiency of your system.
Durable and Reliable Materials
With WQA-certified and NSF/ANSI Standard 61 and 42 compliant components, the Bodyguard is built with food-grade materials for assured safety and quality.
Thoughtfully Designed
Designed for upflow filtration, this system optimizes water contact with filtration materials for efficient purification without clogging or flow reduction.
DIY Friendly Installation
The Bodyguard requires no electricity and produces no water waste. Designed for effortless setup—just connect the water in, let it flow out, and you’re done!
Consistent Pressure and Flow
The Bodyguard features full 1-inch porting, ensuring uninterrupted pressure and consistent water flow rates for optimal performance.

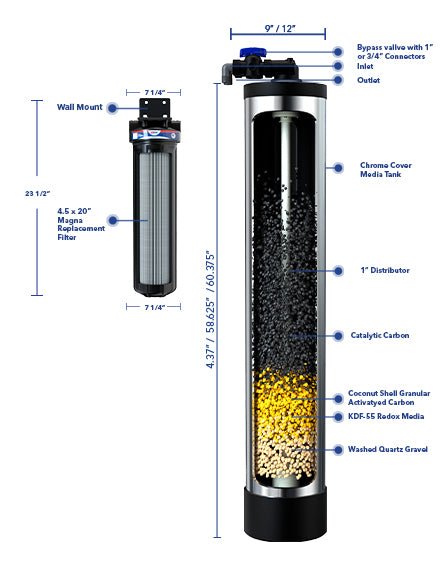

State-of-the-Art 5-Step Water Filtration Process
Our innovative 5-step process features the Vortech Tank, which boosts flow rates and ensures all media are thoroughly utilized.
5 Micron Magna Filter:
“Magna” translates to “great” in Greek, and true to its name, this
filter offers the largest surface area available on the market. It’s
also 100% made in the USA, setting it apart from the commonly
overseas-manufactured filters of our competitors.
Washed Quartz Gravel:
Acts as an excellent substrate for upflow filtration, enhancing
the overall effectiveness of the system.
KDF-55 Redox Media:
This bacteriostatic media not only maintains cleanliness but also
removes 50% - 80% of chlorine through the redox process,
significantly extending the lifespan of the carbon.
Coconut Shell Granular Activated Carbon:
Renowned for imparting a sweet taste to water, this carbon
primarily targets chemical and chlorine removal, thereby enhancing
the longevity of catalytic carbon.
Catalytic Carbon:
Exceptionally effective at eliminating chloramine, its longevity
is maximized by preceding it with KDF-55 and Granular Activated
Carbon, ensuring your water is high quality and safe.
A Commitment to American Made Materials and Transparency
Unlike many water filtration brands, US Water Systems believes in the value of American Made products. This gives a greater degree of control and visibility of the manufacturing process, and overall product quality. It is convenient, cheap, and more profitable to outsource assembly and manufacturing, however we understand the value of keeping industry here in North America. Unfortunately, certain commodified products simply are not manufactured domestically, and US Water Systems is on a mission to change the status quo of our industry.
Unmatched Quality - See How Bodyguard Compares:
Featuring an unrivaled bypass size, guarantee length, flow rate, chamber size, and premium american-made quality.
Product Attributes |
Bodyguard |
Alternative |
Alternative 2 |
| Bypass Size | 1" | 1" | 3/4" |
| American Made Filter | Y | N | N |
| American Made Housing | Y | N | N |
| Double O-ring Seal Technology | Y | N | N |
| Satisfaction Guarantee | 1 YEAR | 6 MONTHS | 90 DAYS |
| Peak Flow Rate | 25 GPM | 20 GPM | 7 GPM |
| UV Chamber Size | 36" | 20" | 16.5" |
Frequently Asked Questions
What are the replacement filter costs and how often do you need to replace them?
Will this system reduce the water pressure in my home?
What GPM will each system have and which should I choose?
Is this water filter good for a home on a private well?
What is the best whole house water filter system for city water?
HAVE A QUESTION? GIVE US A CALL: (800) 608-8792
PRODUCT SPECIFICATIONS
| PART NUMBER | TANK SIZE | MAX FLOW RATE | CONT. FLOWRATE | BATHROOM CONVERAGE | PRE-FILTER PART # | UV LAMP PART # | PRESSURE LIMITS | TEMPERATURE LIMITS |
| 117-BGS-10 | 9x48 | 12 GPM | 10 GPM | 1-3 BATHROOMS | 361-USP-MF-4520-05-222 | 406-PUV-LM-20 | 30 TO 100 PSI | 40 TO 100 DEGREES F |
| 117-BGS-15 | 10x54 | 19 GPM | 15 GPM | 3 TO 6 BATHROOMS | 361-USP-MF-4520-05-222 | 406-PUV-LM-20 | 30 TO 100 PSI | 40 TO 100 DEGREES F |
| 117-BGS-20 | 12x52 | 25 GPM | 20 GPM | 6+ BATHROOMS | 361-USP-MF-4520-05-222 | 406-PUV-LM-20 | 30 TO 100 PSI | 40 TO 100 DEGREES F |
What’s Included with the Bodyguard:
TANK
x1
VALVE, BYPASS AND FITTING
x1
MICRON MAGNA FILTER
x1
CATALYTIC CARBON
x1 SET
GAC CARBON
x1
KDF-55 MEDIA
x1
QUARTZ GRAVEL
x1
Installation Manual
Instructions to help the installation go quickly and smoothly.
x1
Shop Replacement Parts, Upgrades & Add-ons
5 Micron Magna Filter
Designed to fit US Water Systems double o-ring filter housings. Rated for 5 micron filtration, peak flow of 25 GPM, and made in the USA. Filter dimensions are 4.5 x 20 inches. Replace every 6 to 12 months.
Learn More
US Water Replacement Ultraviolet Lamp 20 GPM
Ensure optimal performance with this genuine factory replacement bulb.
Designed to fit US Water models 405-PUV-200-20 and 408-USWUV-20 UV, part number 409-USWUV-LMP20, this 8" lamp guarantees effective UV disinfection for your water system.
Learn More
Upgrade Your BodyGuard with a
Pulsar Disinfection System
Inside the Pulsar UV: Advanced Water Disinfection
Ensure your water isn’t just filtered, but thoroughly sanitized. Effective against microbiological threats from both city and well water, it offers unmatched safety and purity.
Integrated Protection: Designed to integrate seamlessly with the Bodyguard whole house filter, the Pulsar system exceeds industry standards for robust, reliable protection.
Superior Capacity: Built to handle high-volume demands without compromising performance, our system ensures continuous, effective water treatment.
Advanced Disinfection: Eliminates 99.99% of harmful pathogens, including viruses, bacteria, and protozoa, providing a higher level of safety than standard residential systems.
Future-Ready Design: Designed to meet tomorrow’s challenges with easy upgrades and cutting-edge features, ensuring long-term reliability and effectiveness.
